| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet, Manmade Wooden Case or as Your Requirement |
| Origine: |
Qingdao |
| Certificate: |
ISO9001 SGS |
| Brand: |
Chifine |
| Service: |
OEM and ODM |
| Delivery Time: |
30 Days After Receiving The Payment |
| Supply Ability: |
2500tons Per Month |
| Standards: |
BS En124 |
| Load Capacity: |
D400, C250, B125, A15,En124 |
| Temperature Resistance: |
-40 - 200 °c |
| Type: |
Clay Wet Sand |
| Machining: |
CNC Machining, CNC |
Product Description
type: Square, Round,Triangle
standard: EN124 A15,B125,C250,D400
Coating: 1)black bituminous paint
2)without coating
3)epoxy coating
4)As per customer's requirment
Feature:Anti-theft,Anti-rust,long life service,etc.
Our advantage:
1) strong enginnering team make high quality
2) OEM service in casting
3) ISO9001: 2008 quality control
4) all standard and special size are available with drawing
5) own test equipment and professional casting mould development
6) perfect service
7) OEM supplier, we have a foundry and a machining shop.
Certification: ISO9001: 2008
Packing and Shipping
1, Standard wooden carton and pallet for exporting
2, Delivery: As per Contract delivery on Time.
3, Shipping: As per Client request, We can accept CIF, FOB, DDU etc.
Or Client Authorized Agent, we supply all the necessary assistant
Quality control:
(1) Machinery properties and Chemical components testing after raw casting
(2)Hardness checking
(3)Dimensions testing
(4)Prevailing microstructure testing
Qingdao Chifine Machinery Co., Ltd is one famous company in China which specialized in various metal casting products with over 15 years experience located in Qingdao China. It covers a comprehensive range of casting ,forging ,and machining and was widely used in Agriculture machinery, Motor Vehicle, Architecture, Railway and Engineering and municipal facilities
As a professional company, Chifine have four groups of experienced teams to be in charge of different work:
Project team-customer service
Engineering team-provide R&D and technical support
QC team-productive process control and incoming parts inspection
Warehouse team-warehouse management and logistic service
Name | Partsize (mm) | Material | Weight(kg) |
| Φ | Φ1 | Φ2 | Φ3 | a1 | a2 | b1 | b2 | b3 | b4 | h1 | h2 | h3 | h4 | r1 | r2 | r3 | r4 |

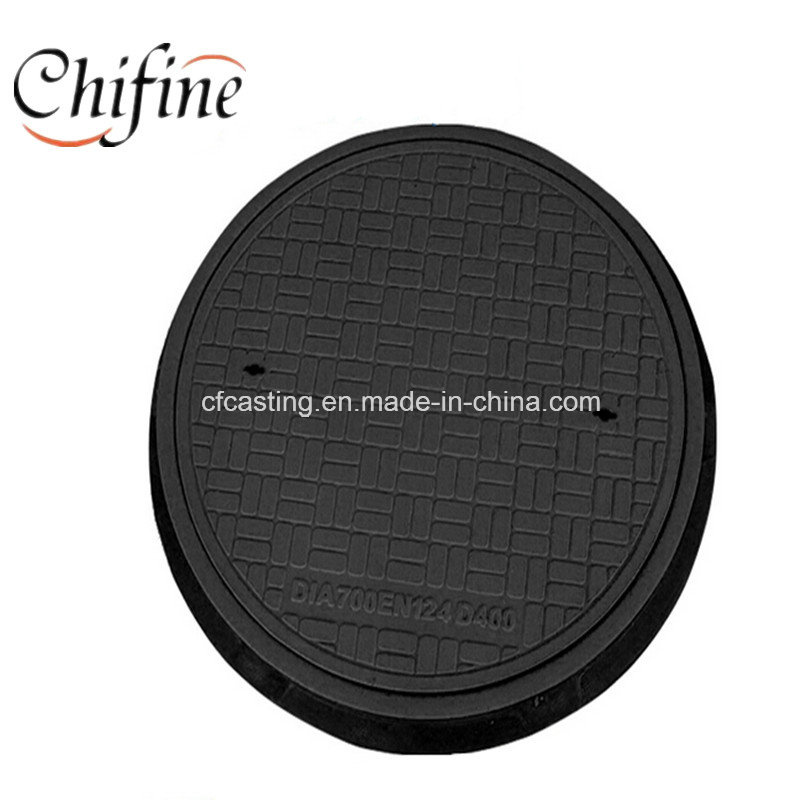

Lightweight ductile iron manhole covers | Φ500 | Φ480 | Φ532 | Φ540 | 180 | 140 | 10 | 8 | 13 | 86 | 9 | 31 | 60 | 6 | 140 | 210 | 6 | 8 | QT500-7 | 25 |
| Φ600 | Φ580 | Φ632 | Φ640 | 210 | 170 | 12 | 8 | 13 | 105 | 9 | 31 | 65 | 6 | 170 | 240 | 6 | 8 | QT500-7 | 34 |
| Φ700 | Φ680 | Φ732 | Φ740 | 250 | 210 | 12 | 9 | 15 | 120 | 9 | 31 | 70 | 6 | 210 | 280 | 6 | 8 | QT500-7 | 44 |
| Φ800 | Φ780 | Φ832 | Φ840 | 280 | 240 | 12 | 9 | 15 | 138 | 9 | 31 | 75 | 6 | 240 | 310 | 6 | 8 | QT500-7 | 55 |
Heavy weight ductile iron manhole covers | Φ500 | Φ480 | Φ532 | Φ540 | 180 | 140 | 12 | 9 | 15 | 86 | 9 | 31 | 75 | 6 | 140 | 210 | 6 | 8 | QT500-7 | 28 |
| Φ600 | Φ580 | Φ632 | Φ640 | 210 | 170 | 14 | 9 | 15 | 105 | 10 | 30 | 80 | 7 | 170 | 240 | 6 | 8 | QT500-7 | 39 |
| Φ700 | Φ680 | Φ732 | Φ740 | 250 | 210 | 14 | 10 | 16 | 120 | 11 | 29 | 80 | 8 | 210 | 280 | 6 | 8 | QT500-7 | 53 |
| Φ800 | Φ780 | Φ832 | Φ840 | 280 | 240 | 14 | 11 | 18 | 138 | 12 | 28 | 85 | 9 | 240 | 310 | 6 | 8 | QT500-7 | 71 |
Light gray cast iron manhole cover | Φ500 | Φ480 | Φ532 | Φ540 | 180 | 140 | 10 | 11 | 17 | 86 | 10 | 30 | 80 | 7 | 140 | 210 | 5 | 7 | HT200 | 31 |
| Φ600 | Φ580 | Φ632 | Φ640 | 210 | 170 | 12 | 12 | 19 | 105 | 11 | 29 | 85 | 8 | 170 | 240 | 5 | 7 | HT200 | 45 |
| Φ700 | Φ680 | Φ732 | Φ740 | 250 | 210 | 12 | 12 | 19 | 120 | 12 | 28 | 90 | 9 | 210 | 280 | 5 | 7 | HT200 | 59 |
| Φ800 | Φ780 | Φ832 | Φ840 | 280 | 240 | 12 | 13 | 20 | 138 | 13 | 27 | 90 | 10 | 240 | 310 | 5 | 7 | HT200 | 77 |
heavy gray cast iron manhole cover | Φ500 | Φ480 | Φ532 | Φ540 | 180 | 140 | 12 | 13 | 21 | 86 | 12 | 28 | 95 | 9 | 140 | 210 | 5 | 7 | HT200 | 38 |
| Φ600 | Φ580 | Φ632 | Φ640 | 210 | 170 | 14 | 14 | 22 | 105 | 13 | 27 | 100 | 10 | 170 | 240 | 5 | 7 | HT200 | 54 |
How to choose suitable Loading class?
CLASS |
WHERE |
LOADING CLASS |
EN124-A15 |
Only Pedestrians and Bicycles |
15KN |
EN124-B125 |
Footways,Parking lot or similar areas |
125KN |
EN124-C250 |
Areas between carriage way and non-drive way |
250KN |
EN124-D400 |
Carriage way and Urban Avenue |
400KN |
EN124-E600 |
Port Dock and Parking Apron |
600KN |
EN124-F900 |
Taxiway of Airport and Huge Dock |
900KN
|
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
