| Prod Model: |
AF-C80-300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
C Channel Steel Roll Forming Machinery |
| Machine Color: |
as Require |
| Machine Size: |
13m*1.2m*1.4m |
| Machine Weight: |
7tons |
| Delivery Time: |
30days |
| Size Of Container: |
40gp |
| Life Long: |
10year |
| Control System: |
PLC |
| Cutting Type: |
Hydraulic |
| Driven Type: |
Chain |
| Forging Forming Method: |
Mold Forging |
Product Description
C channel steel roll forming machinery
C z purlin cold roll forming machine
Other machine we manufacture
Cold roll forming mahcine, color steel roll forming machine, roof and wall panel machine, decking floor roll forming machine, floor decing forming mahcine, stud and track roll forming machine, Z and C purlin machine, highway guardrail roll forming machine, cable tray machine, and so on.
Working flow:
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table
Machine components:
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
Punching device---------------------------------1set
PLC control box --------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
TechnicaL description:
1. Decoiler
(1)Max. Width: 500 mm
(2)Inner Diameter: Φ 350 Φ 500 mm
(3)Out Diameter: 1500 mm
(4)Max. Loading Capacity: 5000 kgs
2. Leveleing device
(1)Max. Width: 600 mm
(2)Thickness: 1-3 mm
(3)Rollers for Leveling: 5 rollers
(4)Material for Rollers: GCr15 steel
(5)Hardness for Heat Treatment: HRC55 60° C
3. Roll forming device
(1)Rolled Material: Cold Rolled Steel Sheet
(2)Material Thickness: 1-3 mm
(3)Rollers: 13Groups
(4)Material for Rollers: 45# steel polished and coated with chrome HRC55-60°
(5)Material for shaft: High grade No. 45 steel after treatment
(6) Hardness for Heat Treatment: HRC55- 60° C
(7)Diameter of shaft: 80mm
(8)Frame panel thickness: 20mm
(9)Bottom frame: 36# H-section steel
(10)Motor Power: 15 kw
(11)Speed Reducer Model: QZ 400
(12)Rolling Speed: 2 8 m / min; Adjustable
(13)Driven type: 2"Chain
4. Punching devce
(1)Adopted with 4 pillars hydraulic punches.
(2)Length for Punch Table: 1.2m*1.5 m
(3)Motor for Hydraulic Punch: 7.5 kw
(4)Hole-Punching Modular: 3 Pics

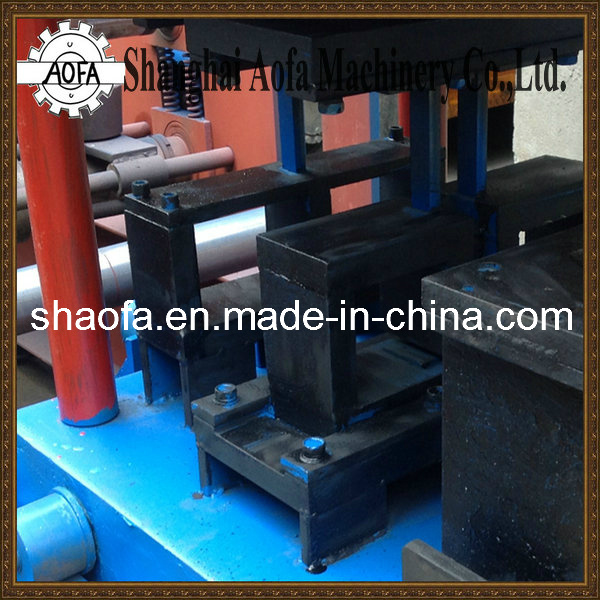

5. Cutting device
(1)Material for Cut-Off Modular: Cr12 steel
(2)Hardness for Heat Treatment: HRC55-60° C
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4)Cut-Off Modular: 1 set
(5)Motor for Hydraulic Stand: 5.5 kw
6. Control system:
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Japan Panasonic
(3) Encoder Brand: Omron
(4)Length Error: ± 2mm
We can produce machine as different profile drawing.
|
Terms |
|
|
Payment type |
30% T/T prepaid and balance should be paid before loading |
|
Delivery time |
30days after receiving advance payment. |
|
Guarantee period |
18monthes free service/ pay service all the machine life |
Installation and training
|
If buyers visit our factory and check the machine,
we will teach you how to install and use the machine,
and also train your workers/technician face to face.
Without visiting, we will send you user manual and
video to teach you to install and operate.
If buyer needs our technician to go to your local factory,
please arrange board and lodging and other necessary things. |
