| Prod Model: |
CH25 |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Type: |
Punching Machine |
Product Description
Usage:
This punch is widely used in punching precise stamping of computer, communication, domestic appliance, auto accessories, motor stator & rotor and so on.

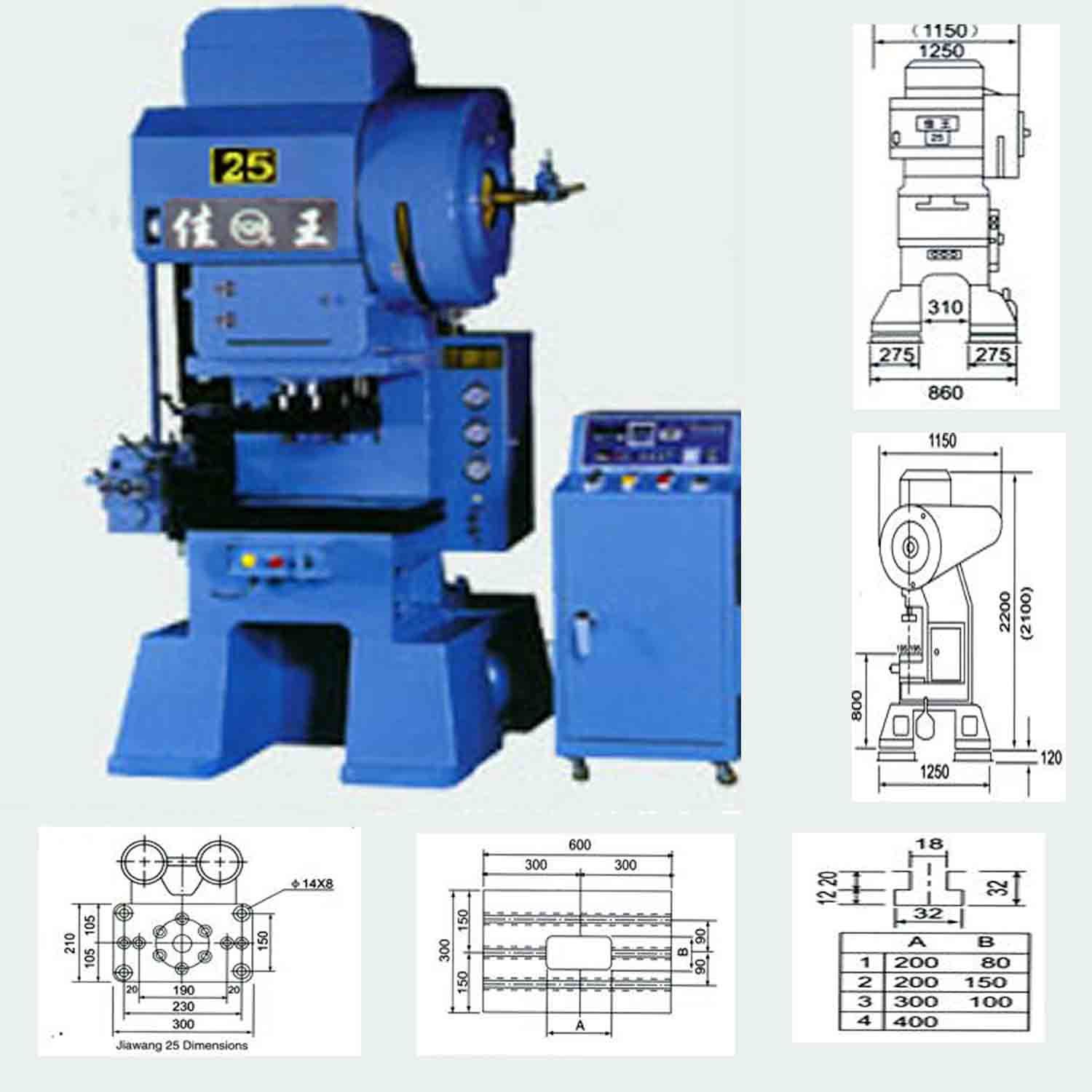

Punching machine
1. Strong, steady, solid structure
3circle guides design (2 guide column, 1 plunger structure)and the guides use the zero error spot contact bearing, instead of traditional and high frication coefficient sliding plate, which can reduce the heat dislocation to the minimum value and prolong their useful life.
2. Hydraulic lock system
C Series equip hydraulic lock function, which can quickly adjust the mold. The Operator can also greatly improve work efficiency.
3. Excellent dynamic balancing system
CD Series equip dynamic balancing system, which not only can minimize the noise and vibration but also make the punch be more precise and stable.
4. Counterforce coil spring balancing device
When the station runs very fast, the balancing system can minimize the counterforce and make the punch get the best accuracy and stability.
5. Independent control box
Simple in operation and complete function. Another control panel is available in the station.
|
Model |
CH25 |
|
Capacity |
25 Tones |
|
stroke of Slide |
20 |
25 |
30 |
|
SPM |
200-1000 |
200-900 |
200-800 |
|
Die-Height |
180-210 mm |
|
Bolster |
600×300×75 mm |
|
Area of Slide |
300×210 mm |
|
Slide Adjustment |
30mm |
|
Bed Opening |
400×100 mm |
|
Motor |
5 Hp |
|
Gross Weight |
2800 kgs |
|
Lubrication |
Forceful Automation |
|
Speed Control |
Inverter |
|
Clutch & Brake |
Air & Friction |
|
Dynamic Balancing |
√ |
|
Hydraulic lock |
√ |
|
Vibration System |
Option |
Changzhou Jiawang Precision Machinery Co., Ltd was founded in May 1991, which is located in the domestic economy developed area "Suxichang" of China.
The company covers an area of 20000 square meters. It has more than 380 employees, of which 35 are technical staffs. Our company mainly produces different kinds of the super-speed, high-speed, medium-speed punch press, feeder and ancillary facility. The company pays great attention to absorbing advanced management ideas from Japan and make efforts to create a Chinese Brand.
Our company has an excellent working team composed of experienced workers with high skills and management which are most from Taiwan-owned Company and foreign-owned enterprises. We devote in making the fastest, safest and the most precise punch press in Asia.
Our company has established the perfect quality guaranteeing system. We do our best to provide you the reliable and durable products with the high quality and satisfied after-sale service. We also can design and manufacture various kinds of punches with the special specifications according the customer's requirement.
We sincerely hope to cooperate with clients from home and abroad on the basic of mutual benefits.
