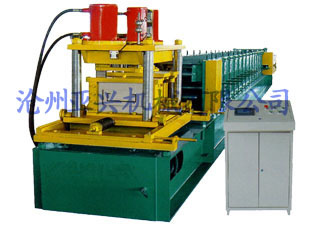

C Purlin Roll Forming Machine

C Purlin Roll Forming Machine
Price: US $ 13000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Prod Model: C PURLIN
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition: New
Type: Tile Forming Machine
Tile Type: Colored Steel
Use: Wall
Production Rate: 9-12m/Min
Brand Name: Yaxing
Power(W): 11kw
Voltage: 380V
Dimension(L*W*H): 8.0m*1.2m*1.3m
Advantages: Quality Guarantee Economical, Efficient, and Accur
Forging Forming Method: Mold Forging

Product Description

Our factory has been professional to produce all kinds of roll forming machine for many years and we have exported our products to USA, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Russia, Nigria, Camaroon Duala, Ghana, India, Venezuela and some other MID-east countries. Hence, our experiece is rich enough to make us take first position of this field. In addition, we can design, produce and transport the machine as your any request.

Specification:

1. Manual inner tight decoiler
1). Coil inner diameter: 500-600
2). Maximum width of coiling: 1250mm
3). Maximum weight of loading: 5000 kg
2. Main forming machine
1). Material of shaft: 45# steel adjustable treatment out diameter: φ 80
2). Material of roller: Cr 15, quenched treatment HRC55-60
3). Number of leveling roller: 4
4). Number of forming rollers: 13 rows all of 45# steel solid shaft
5). Main frame: 400 H steel thickness of medium plate: 20mm
6). Drive type: By chain
Thickness of chain: 2 inch
7). Main motor power: 11 KW
8). Forming speed: 9-12m/min
9). Punching: According to drawing, fully adjustable back and front, left and right
10). Votage: 380V
3. Hydraulic cutting
1). Material of blade and punch: Cr12, heat treatment 60-62
2). Cutting system: Adopt advanced hydraulic drive. No distort or wasting after forming automatic cut. ( main motor stop cutting)

Packing

Standard or nude package

Delivery time

7-30 days after recieving deposit

Payment terms

T/T, 30% deposit when contract signed, and 70% balance before consignment
Our factory has been professional to produce all kinds of roll forming machine for many years and we have exported our products to USA, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Russia, Nigria, Camaroon Duala, Ghana, India, Venezuela and some other MID-east countries. Hence, our experiece is rich enough to make us take first position of this field. In addition, we can design, produce and transport the machine as your any request. Looking forward to cooperate with you.
