Product Description

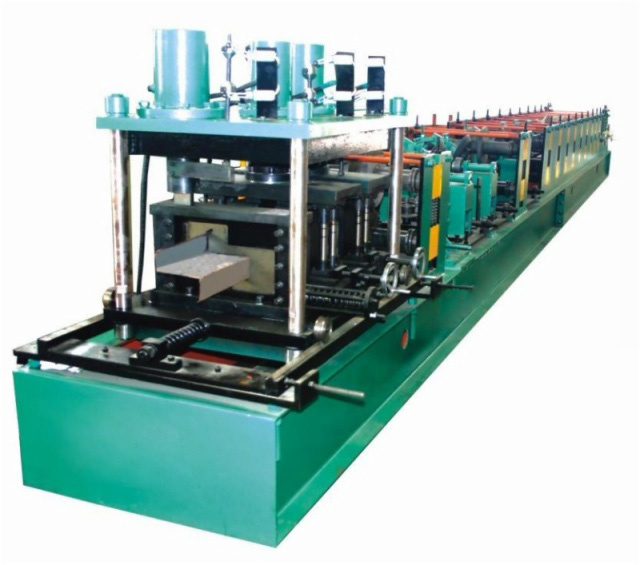

JWC-C 'Z' Purline Forming Machine
Description
Specification
Model: JWC80-300 C' purline roll forming machine
Rolling speed: 5-10meters/min
Rolling thickness: 2-3mm
The forming roller steps: 16 steps
The forming machine power: 15kw
Control system: PLC automatic system
Model: JWC120-300 Z' purline roll forming machine
Rolling speed: 5-10meters/min
Rolling thickness: 2-3mm
The forming roller steps: 16 steps
The forming machine power: 15kw
Control system: PLC automatic system
Advantages
Model: JWC C' & Z' interchangeable roll forming machine
Changing the profile from C to Z (or Z to C) automatically.
Changing the width and height through the control screen automatically.
Integrate the inline punching device.
Flying cut-off to speed up the production
Forming capacity
H A B C t (mm)
100 50 52 15 1.6~2.0
125 50 52 15 1.6~2.3
150 65 67 18 2.3~3.2
200 75 77 20 2.3~3.2
250 75 77 20 3.0~3.2
Series Design of Product
The machine is for continuously roll forming and pressing step tiles on series of product profile. The length can be set up or unlimited and the depth of each step is from 10 to 30mm adjustable.
