Prod Model: |

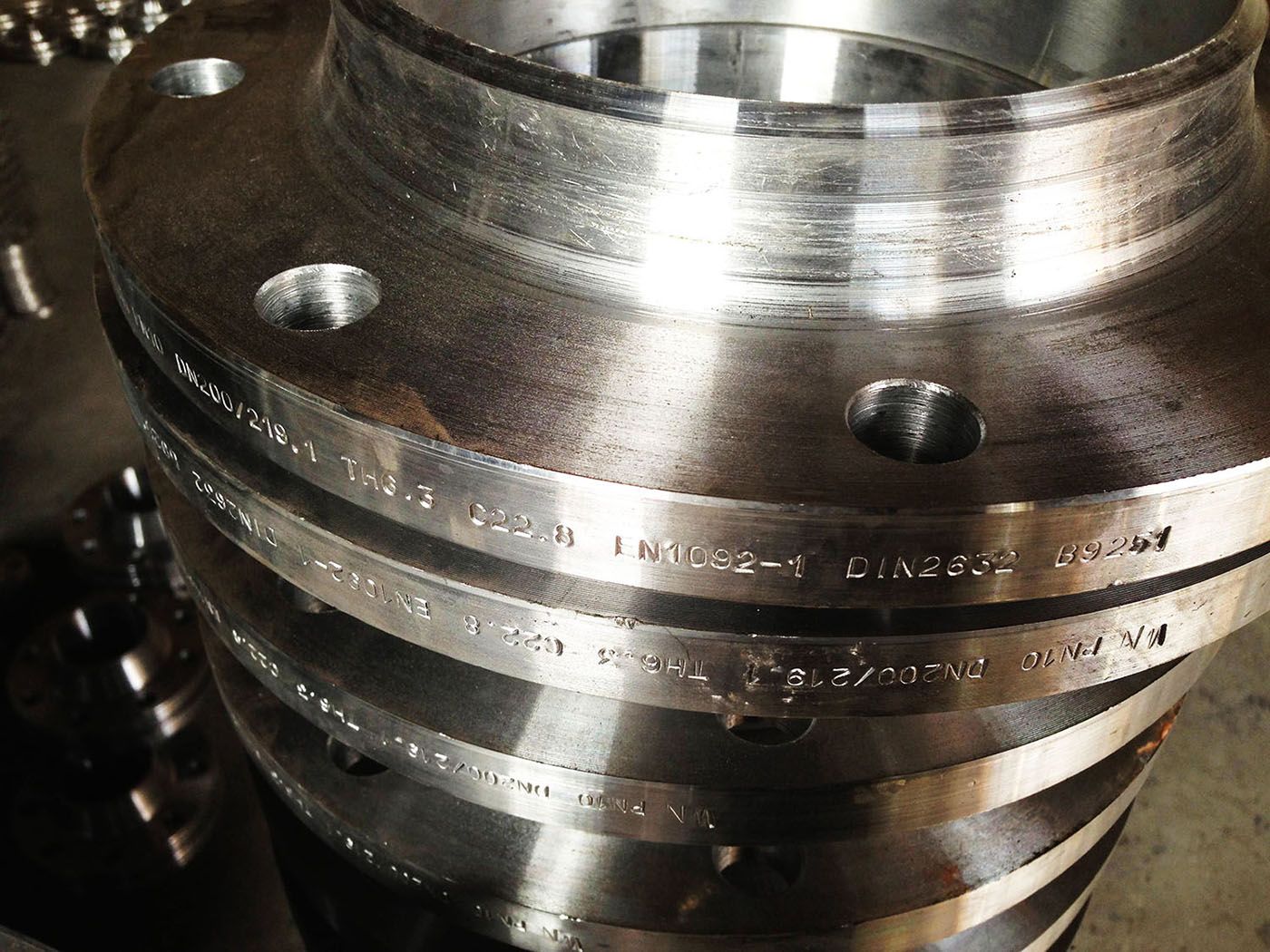

C22.8 BS EN1092-1 DIN 2632 FORGING FLANGES, |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
En 1092-1 DIN2632 Weld Neck Flanges: |
DIN Pn6, Pn10, P16, Pn25, Pn40 Forged Flanges |
Material Specification: |
A105/A105n, C22.8, P45gh, P250gh, A350 Lf2 |
Material: |
Carbon Steel |
Type: |
Welding Flange |
Standard: |
Bs En1092-1 |
Manufacturing Way: |
Forging |
Product Description
About Our Din2633 Welding Neck Flanges:
DIN Welding Neck
DIN Plate
DIN Slip-On
DIN Threaded
DIN Blin
Material | Carbon steel: S235JRG2 C22.8 P245GH |
Alloy stell: 1.5415 16MO3 |
Stainless steel: 1.4571 1.4301 1.4306 1.4404 1.4435 |
Standard | DIN 2527 2566 2573 2576 2630 2631 2632 2633 2634 2635 2636 2637 86030 |
Surface | Rust-proof oil, Black, Yellow, Galvanized |
Type | Welding Neck/Plate/Blind/Slip-on/Theaded |
Flange facing | Raised face , Flat face, Ring Joint face,etc |
Size | DN10-DN2000 |
Process | Free forging, plate cutting |
Pressure | DIN:PN6-PN100 |
Connection | Welding |
Technical | Forged |
Package | Wooden case,Cartons, Pallets or crates according to buyer's requirements. |
Delivery | It depend on demand quantity |
Certificate | TUV, PED, ISO9001 |
Applications | Steam, air, gas and oil pipes or for many other fluids |
We have manufactured flanges for over 20 years. C&N specializes in supplying specialty flanges to the
world's most demanding industries - Oil and Gas Exploration and Production, Oil Refining and
Processing, Petrochemical, Chemical, Plumbing and HVAC.
Materials | Flange Specifications | Types of Flange |
Carbon steel Stainless steel Alloy steel Special steel Others as specified | ANSI B16.5 JIS MSS SP 44 API 605 DIN BS EN 1092-2007 Many other specs | Weldneck Socket weld Blind Threaded Slip on and special types |
DIN2632, DIN2633, DIN2634, DIN2635,welding neck flanges
name | Welding-neck flange |
Size | 1/2"- 48" |
Standard | DIN2632,DIN2633,DIN2634,DIN2635,ASME16.5JPI-15,HG20595, |
Material | A105,A105M,ST37,ST35.8,SS400 SB410,Q235, |
Sealing face | FF,RF MFM ,TG,RJ |
Pressure rating | 10-40 BAR,CLASS 150-CLASS 900,PN1.0-PN 25,PN0.6-PN10.0 |
Material | Carbon steel: A105 Alloy steel: A182 F 1-F 2-F 5-F 9-F 10-F 91-F 92-F 122-F 911-F 11-F 12-F 21-F 22 Stainless steel: A182 304-304H-304L-304N-304LN 316-316H-316L -316N-316LN 321-321H 347-347H Low temperature steel: A522 A707 Grade L 1-L 2-L 3-L 4-L 5-L 6-L 7-L 8 High performance steel: A694 F 42-F 46-F 48-F 50-F 52-F 56-F 60-F 65-F 70 Low-temperature steel: ASTM/ASME A402 WPL 3-WPL 6 High performance: ASTM/ASME A860 WPHY 42-46-52-60-65-70 |
Surface treatment | Transparent oil, rust-proof black oil or hot galvanized |
Flange Facing Types | American Series: Flat Face(FF), Raised Face(RF), Tongue(T), Groove(G), Female(F), Male(M), Ring Joints Face(RJ) European Series: Type A(Flat Face), Type B(Raised Face), Type C(Tongue), Type D(Groove), Type E(Spigot), Type F(Recess), Type G(O-Ring Spigot), Type H (O-Ring Groove) |
Industries Served | Electrical power, petroleum, natural gas, chemical, shipbuilding, heating, papermaking, metallurgy |
Packing | wooden case, pallet or as customers' requirement |
Flange:
Type: Welding neck (WN), Slip-on (SO), Socket welding (SW), Lap-joint (LJ), Blind (BL), Thread (TH). Plate (PL)
Pressure Ratings:class 150 300 400 600 900 1500 and 2500
Pressure Ratings:PN6 PN10 PN16 PN25 PN40 and PN64...
Materials: Carbon steel(A105 C22.8 ST37.2 A694 F42-F70...),Stainless steel(A182 304 321 316 316Ti..) and Alloy steel etc.
Standards:ANSI B16.5 B16.47 A B API BS DIN UNI JIS AS and Mss SP etc.
Size:1/2"--64"(DN15mm--DN1600mm)on the basis of equality and mutual benefit and to establish long-term and stable bussiness relationships.
C&N Industrial group limited is a leading manufacturer of steel pipef itting, flange products in China With 10 years in pipeline fields both manufacturing and trading. We have been supplying high quality piping material to our customer all over the world.
Our production scope:
Butt weld Fittings:
Standard: ASME B16.9 16.28/MSS SP-43/DIN 2605/JIS B2311/ 2312
Elbows(45Deg, 90Deg, 180Deg), Tee(Equal&Reducing), Cross, Reducer, Cap, olet, etc
Forged fittings: THREADED/SOCKET WELD
ASME B16.11, BS3799, JIS B2316, MSS-SP-79, MSS-SP-83
ELBOW, TEE, CROSS, UNION, COUPLING, CAP, BOSS, BUSHING, OUTLET, INSERT
Flanges: ASME/ANSI/API JIS, DIN, EN/BS
Welding Neck, Slip on, Threaded, Socket Welding, Blind, Orifice,
We are also offering our customer a total soluation for the whole piping material packages
Which includes, stainless steel pipes, carbon steel pipes, valve, gasket, bolts etc.
For further information about our company and products, please visit our website, and please do not hesitste to drop us a mail for any inquiry.
