| Prod Model: |
C6-48 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Yuton |
| Model Number: |
C6-48 |
| Type: |
Dust Exhausting Fan |
| Electric Current Type: |
AC |
| Voltage/Frequecny: |
380V/50Hz |
| Air Flow: |
3017m3/H~36417m3/H |
| Fan Housing/Impeller Material: |
Powder Coating |
| Fan Motor Phase: |
Three Phase |
| Drive Mode: |
Belt Driven |
| Motor: |
with Overload Protection |
| Material: |
Iron |
| Flow Direction: |
Centrifugal |
| Pressure: |
Low Pressure |
| Certification: |
CCC |
| Usage: |
Ventilation |
Product Description

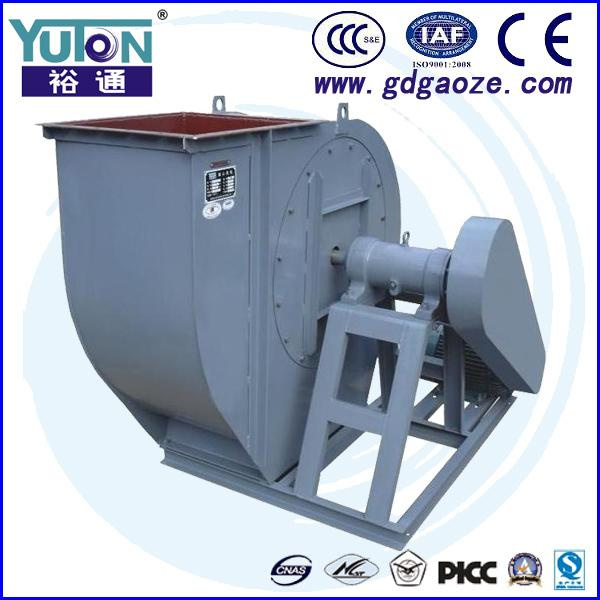

C6-48 Backward Curver Blower Fan
1. Dust exhausting fan
2.220V/380V, 50Hz/60Hz
3. Motor with cast iron body and copper inside
Description:
C6-48 dust exhausting centrifugal fan has the charateristic of not easy to acculmulate the dust, abrasion resistant, applies to distribute air-mixed materials, such as wood fragment, fiber and dusty soil, the temperature of the transmitted medium should be below 80ºC, also can be used for ventilation.
Features:
Material: Strong casting iron of fan body and blades
Whole body and blades with powder coating
High quality motor with cast iron body and copper inside
Good looking surface
Long working life, stable performance
| Item | Size | Power | Revolution | Air flow | Pressure |
| (No. ) | (mm) | (kw) | (rpm) | (m3/h) | (pa) |
3.15C |
315 | 3 | 3150 | 3017~3323 | 1507~1376 |
| 2.2 | 2800 | 1487~2711 | 1880~1615 |
| 1.5 | 2500 | 1322~2138 | 1483~1344 |
| 0.75 | 2000 | 944~2110 | 948~694 |
4C |
400 | 4 | 2500 | 3932~5495 | 1737~1384 |
| 3 | 2500 | 2369~3411 | 1933~1810 |
| 2.2 | 2240 | 2133~2589 | 1550~1505 |
| 1.5 | 1800 | 1705~3957 | 999~716 |
| 1.1 | 1600 | 1516~2850 | 789~716 |
| 0.75 | 1400 | 1326~3077 | 603~433 |
5C |
500 | 7.5 | 2000 | 7783~8623 | 1521~1381 |
| 5.5 | 2000 | 3553~6958 | 1953~1647 |
| 4 | 1800 | 3198~6262 | 1580~1332 |
| 3 | 1600 | 2842~6899 | 1247~882 |
| 2.2 | 1400 | 2487~6036 | 954~675 |
| 1.5 | 1250 | 2221~4349 | 760~641 |
| 1.1 | 1120 | 1990~3896 | 610~514 |
| 0.75 | 1000 | 1776~3053 | 486~436 |
6.3C |
630 | 7.5 | 1600 | 5686~8233 | 1985~1866 |
| 11 | 1600 | 9713`13799 | 1782~1403 |
| 5.5 | 1400 | 4795~8499 | 1517~1362 |
| 4 | 1250 | 4442~7588 | 1208~1085 |
| 3 | 1120 | 3980~7794 | 969~818 |
The manufacturer of "YUTON" and "YUFENG" brand series ventilation equipment-Gaoze Ventilation Equipment Manufacturing Co., Ltd is located in the center of "Zhujiang Delta" Shunde, Foshan and Panyu, Guangzhou, the transportation is convenient. We are specialized in developing and manufacturing various kinds of standard ventilation fan and non-standard ventilation fan such as Axial Fan, Centrifugal Fan, Fire-control Axial Fan, Cabinet Centrifugal Fan, Industrial Exhaust Fan and Industrial Fan. With more than 10 years' experiences in this field, we also provide full service to design, manufacture, process, install and maintain all kinds of non standard and special size ventilation fans. Our goods are mainly used in warehouse, workshop and agriculture for ventilation.
Through our hard working, our company has been the member of Ventilation Fan Branch lodge of "China General Machinery Industry Association", our products are well appraised in market by the customers We have been awarded as "Brand-name and high quality products" by "China Quality Brand Evaluation Center" and "Guangdong Branch of Social Survey Institute of China"; There are also several products of our company applied for patent; Our company enjoys high reputation in the line; We also gained Certificate of ISO: 9001: 2008, our products get the CCC and CE approval.
The Fire-control fan series, centrifugal fan series, axial fan series and duct axial fan series manufactured by our company are widely used by our customers, the performances of our goods reach top standard in the line, and our products is widely used in ventilation and equipped with air conditioner and equipment.
Be built on advanced management policy and perfect quality guarantee system, to assimilate advanced and high level new technology continually, to promote the product improvement and technical innovation, ensure each production cycle controlled strictly, and make "YUTON" brand leading in the line throughout.
We always adhere of the brand idea of "Produce High Quality, Create Better Environment". With sincere attitude and high reputation, we insist to supply high quality products with competitive price and excellent after-sales to the clients. We look forward to establishing long term and mutual business relationship with you.
