Cable Tray Forming Machine (AF-C100-600)

Prod Model:	AF-C100-600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Cable Tray Forming Machine
Machine Color:	as Require
Machine Size:	10.5m*1.4m*1.4m
Machine Weight:	5tons
Control System:	PLC
Cutting Type:	Hydraulic
Driven Type:	Chain
Delivery Time:	35days
Life Long:	10year
Forging Forming Method:	Mold Forging

Product Description

C Shaped Auto Change Size Cable Tray Forming Machine (AF-C100-600)
1. Cable brige production line
2. Auto
3. Feeding table
4. Gantry type roll forming part

1. Equipment capabilities
It can according to the need to produce the steel width (60mm≤ § ≤ 860mm), many kinds of specification electric cable bridges and other structure product.
Product speed by punching: 2.55m/min
Continuous rollforming speed: 1015m/min
Material thickness: 1~2mm
Material require: Q235 cold roll steel
Production line has automatic and manual two operating mode, may realize the linkage and the partition revolution work.

2, Machine components
This unit consists of the decoiler, ML-900 flatting, 200 punch, die, servo feeding, guider, main roll forming machine, follow cutting, cut-to-length part, recoiler, electrical control cabinet; etc.

3,technical parameters

3.1 Drive decoiler
Material width860mm
Material weight6000kg
Material inner diameter460510mm
Material outer diameter1200mm
Drive power: Electromotor and speed reducer integration, 4KW frequency conversion electromotor Frame type: Cantalever inner support, manual handle afterbody, pneumatic press cantalever.

3.2 Flatting
Working rolls: 11 rolls, up 4/down 5, the residual 2 rolls is clamp deliver rolls.
Flatting bound: Material thickness 12mm, material width 100860mm
Drive power: 5.5kw frequency conversion electromotor
Speed reducer model: ZQ250
Flatting speed: 310 m/min
Parenthesis up and down a pair of fortified wheel

3.3 Continual punching mould
Amount: Each kind of width specification 1 set dies, total 6 sets
Die require: Cr12 quench

3.4 Servo feeding set
Servo electromotor power: 4.4kw
Multistage type feeding, memory ten group of memory functions
Man-machine contact surface numerical control system
Uses Mitsubishi servometer

3.5 Holds material (use in cushion section)
The roller type, the both sides have the bearing support, 3 sets, use in holding the material and under the deposited material spacing.

3.6 Guider
A pair of horizontal roller and two pairs of vertical guide rolls, total 1 sets.

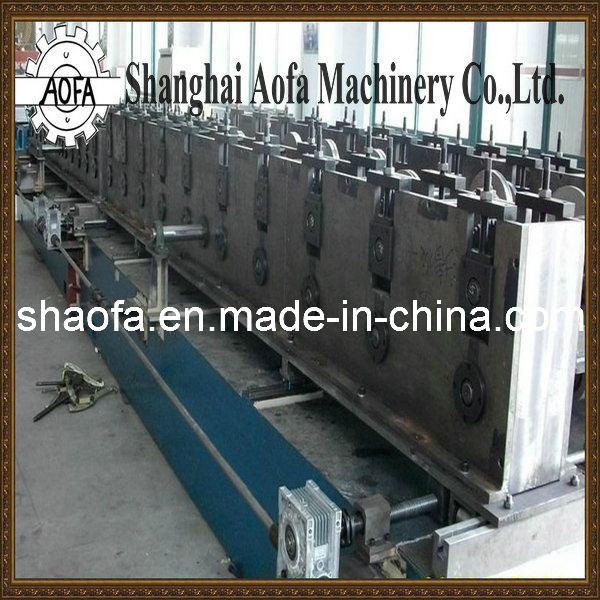

3.7 Main roll forming machine
Type: GY180(Extra wide)
Rack structure: Dragon Gate type memorial arch frame
Forming frame: 13 sets
Forming variety: Bridge frame
Material max width: 860mm
Material max thickness: ≤ 2.0mm
Forming width: 100600mm
Forming height: 50100mm
The diameter of the roller axis: 85mm
Roll mould material: Gcr15, quenching treatment: HRC58-62°
Drive type: 30kw frequency conversion electromotor, ZQ500 Main speed reducer
Autocephaly distribute gear case

3.8 Hydraulic cutting
Hydraulic pumping station: 5.5kw
Blade cuttimg, blade material Cr12, quench treatment

3.9 Electrical control
3.9. 1 Main operation control cubicle
Amount: 1 set
Frequency conversion: 3sets(in main control cubicle, control decoiler, flatting and roll forming machine)
PLC control: 1 set
8 inch liquid crystal touchscreens
All electrical element is the Mitsubishi original installation brand
3.9. 2 Assistant control cubicle
Amount: 3 sets (follow decoiler, flatting, roll forming machine)
Control styp: Manual handle

4, Produce condition
Capability: About 71.5kw
Gas fountain: 0.9 cube/min
Production land area: 33m*3m

MACHINE PHOTOS


Packing and loading photos
