| Prod Model: |
87912 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Stock: |
Yes |
| Size: |
All Avaliable |
| Colour: |
White or Yellow |
| Finish: |
Zinc Plated |
| Type: |
Welding Flange |
| Material: |
Carbon Steel |
| Manufacturing Way: |
Forging |
Product Description

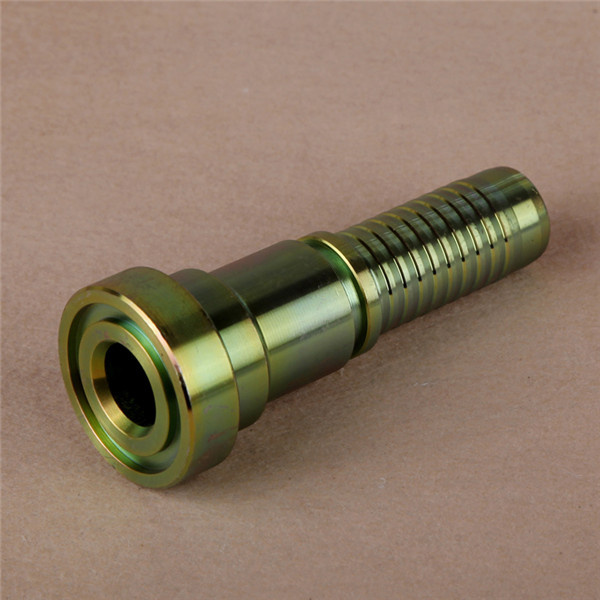

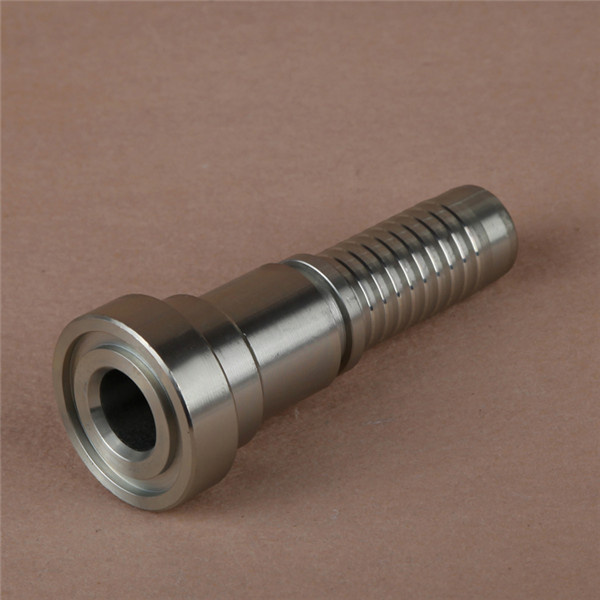

45degree FLANGE 3000PSI.
1) Material: 20# carbon steel
2) Different sizes available
3) Zinc plated
4) ISO9001: 2008
| PART NO. | FLANGE SIZE | HOSE BORE (DN) | HOSE BORE (DASH) | DIMENSIONS (A) | DIMENSIONS (C) | DIMENSIONS (D) | DIMENSIONS (L) | CLICK |
| P87912-12-12 | 3/4" | 20 | 12 | 57.8 | 41.3 | 31.7 | 14.3 |
|
| P87912-16-12 | 1" | 20 | 12 | 62.3 | 47.6 | 38 | 14.3 |
|
| P87912-16-16 | 1" | 25 | 16 | 63 | 47.6 | 38 | 14.3 |
|
| P87912-20-16 | 1.1/4" | 25 | 16 | 70 | 54 | 43 | 14.3 |
|
| P87912-20-20 | 1.1/4" | 32 | 20 | 71.5 | 54 | 43 | 14.3 |
|
| P87912-24-20 | 1.1/2" | 32 | 20 | 77 | 63.5 | 50.8 | 14.3 |
|
| P87912-24-24 | 1.1/2" | 40 | 24 | 77 | 63.5 | 50.8 | 14.3 |
|
