| Prod Model: |
according to customers' requirements |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
12''-26'' |
| Weight: |
0.1-100kg |
| Service: |
OEM |
| Identification: |
ISO 9001 |
| Casting Method: |
Sand Casting |
| Casting Metal: |
Cast Iron |
| Casting Form Usage Count: |
Permanent |
| Casting Form Material: |
Carbon Steel Alloy |
Product Description

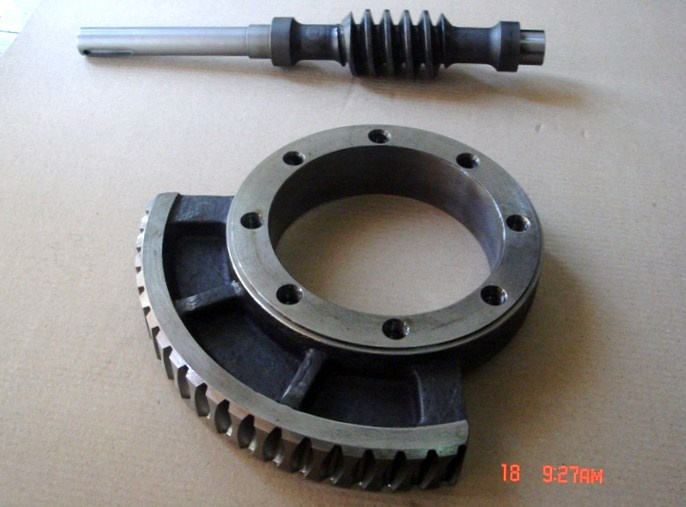

Carbon Steel Alloy Worm Wheel
Oem service
Wheel
Size: 12''-26''
ET: 15-60
PCD: 100-185
Standards: According to the customer's design
Finish: Silver gray hyper silver chrome black machine face
Productioin and testing machine: The low pressure casting machine, gravity casting machine, continuous heat-treating furnace, the CNC lathe, Machining enter, automatic spray-painting line, the spectrum analyzer, X-ray machine, three-coordinates measuring machine, rotary bending tester, the radial rolls fatigue tester, impact tester, the salt spray tester, the universal material testing machine
Specification
Wheel size | offset | Center hole | Bolt hole | P.C.D | Valve | Rec,Type |
| 22.5*9.00 | 175 | φ221 | 8-φ32 | φ285.75 | V3-20-12 | 12R22.5 |
| 22.5*9.00 | 178 | φ222 | 10-φ32 | φ285.75 | V3-20-6 | 12R22.5 |
| 22.5*9.00 | 175 | φ281 | 10-φ26 | φ335 | V3-20-6 | 12R22.5 |
| 22.5*9.00 | 175 | φ281 | 10-φ27 | φ335 | V3-20-4 | 12R22.5 |
| 22.5*9.00 | 173 | φ281 | 10-φ26 | φ335 | V3-20-4 | 12R22.5 |
| 22.5*9.00 | 170 | φ221 | 8-φ32 | φ285 | V3-20-4 | 12R22.5 |
| 22.5*9.00 | 171 | φ220 | 10-φ26 | φ285.75 | V3-20-6 | 12R22.5 |
| 22.5*9.00 | 174 | φ281 | 10-φ26 | φ335 | V3-20-6 | 12R22.5 |
| 22.5*9.00 | 165 | φ281 | 10-φ26 | φ335 | V3-20-6 | 12R22.5 |
| 22.5*9.00 | 169 | φ281 | 10-φ26 | φ335 | V3-20-6 | 12R22.5 |
| 22.5*9.00 | 176 | φ221 | 8-φ32 | φ285 | V3-20-4 | 12R22.5 |
1) Process: Resin sand casting.
2) Applied software for specification drawings: AutoCAD, Solidworks etc.
3) Facility: Electric furnace, cupola furnace, anneal furnace, sand mixing machine, shot blast chamber, various molding machine.
What we could do for you :
1) factory sell directly
2) long-term,strong and steady supplying ability
3) delivery time: 2-25 working days
4) do as your reuqirements on package,brand or other designs
5) cost control will be better than other trading companies
6) strong sales promotion policy
7) ex-factory price and competitive price
8) replying you asap.
We-Baoding Xinlongtongda company is a professional manufacturer for sand casting, investment
Casting stainless steel, forging, die-casting accessory, micro casting accessory, metal casting accessory, plastic machine parts, CNC machining and other various mechanical accessories and relative equipments.
Manily products include investment casting stainless steel, sand casting iron/steel, die casting aluminum part, lost wax casting, forging auto parts, stamping machinery part.
Our products included shaft, gear, gear shaft, worm gear, welding shaft seat, hub, bracket, non-standard nut, lashing strap, webbing sling, hydraulic jack, hand tools and so on
We have the advanced equipments for foundry, 66 sets of metal cutting machineries, 35 sets CNC, and 2 sets of machining centers.
We gained quality certificate ISO9001, CE, SGS certificates, and have full sets of inspection instruments. With high quality and reasonable prices, all of our products sell well in the overseas market.
Please feel free to contact us for more details if you're interested.
