| Prod Model: |
oem |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificates: |
ISO |
| Material: |
Steel |
Product Description
Specifications

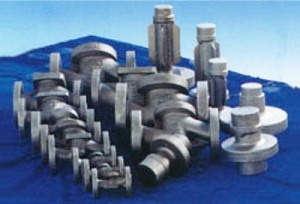

1. Material: Ductile iron, grey iron, steel castings
2. Process: Sand cast, lost wax cast
3. Standard: ASTM, DIN
4. Aluminium casting
Casting - steel&iron
Aluminium casting
Investment casting
Die casting
Cast bronze
We can supply all kinds of ductile iron, grey iron and steel castings with machining such as electromotor parts, valves parts, pump parts, vehicle parts, marine parts and other machinery parts, materials and technical methods are as follows:
We have special engineers and technicians who have much experiences in arranging production and quality controlling to track all orders and delivery time, and carry out products inspection. Our products have been despatched with all certificates such as chemistry element and mechanical property reports, physical characteristic and non-destructive detect reports if necessary ( UT, MT, PT, RT).
We are always ready for supplying any products to oversea customers with excellent quality, timely delivery, reasonable price and circumspect after service. We welcome you to contact me if you would be interested in us and our products.
|
Item |
Description |
Material |
Technical Process |
|
1 |
Ductile iron
castings |
ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03;
DIN-GGG40,GGG50,GGG60,GGG70;
JIS-FCD40,FCD50,FCD60,FCD70;
BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2;
NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2; |
Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting |
|
2 |
Grey iron
castings |
ASTM A48-No.20,25,30,35,40,45,50;
ASTM A126-Class A, Class B, Class C;
DIN-GG10,GG15,GG20,GG25,GG30,GG35;
JIS-FC10,FC15,FC20,FC25,FC30,FC35;
BS-Grade 150,180,220,260,300,350;
NF-FGL150,FGL200,FGL250,FGL300,FGL350; |
Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting |
|
3 |
Carbon steel
castings |
ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC;
ASTM-415-205, 450-240, 485-275, 80-40;
DIN- GS-C25(1.0619), GS-38(1.0416),
GS-45(1.0446), GS-52(1.0552), GS-60(1.0558);
JIS-SC410, SC450, SC480, SCC5;
BS-A1, A2, A5;
NF-GE230, GE280, GE320, GE370 |
Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Lost foam cast
Shell-core cast
Electric-furnace smelting |
|
4 |
Stainless steel
castings |
ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304;
DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001)
G-X20Cr14(1.4027), 1.4408;
JIS-SCS13, SCS 1, SCS 2, SCS 14A;
BS-304C15, 410C21, 420C29, 316, 304;
NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M |
Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting |
|
5 |
Alloy steel
castings |
DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120);
GS-37MnSi5(1.5122), GS-34CrMo4(1.7220);
JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3;
ASTM-LCC
UNS-J02505, J13048
NF-G20M6, G35CrMo4 |
Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting
|
Qingdao RuiLan Trading Co., Ltd is specialized in Railway bogie casting parts, like bogie18-100 to Russia, bogie1750 to Ukraine, both bogie18-100 and bogie1750 with certificate can make sure products enter into your market.
Bogie18-578, bogie18-194 and bogie 18-7020 will be ok soon.
We have been cooperated with many big companies and manufactures in Russia and Ukraine. Our experienced engineers offer a wealth of design and application expertise. We can offer you more than 20 years of experience in designing and manufacturing to satisfy your particular needs. Our company has advanced equipment, professional staff. Our raily way parts productions obtained CRCC certification, AAR, Ukrsepro and ISO9001: 2000 quality system certification, which guarantees high quality railway products for domestic and foreign manufactures.
Our International trade department is responsible for the product export, and undertakes the train design, manufacture, maintenance, and production of major cast steel parts and bogie parts.
"Quality Products, Excellent Service, Competitive Prices and Prompt Delivery" is our principle. We have built up good relationships with customers all over the world. We are advancing into global market drastically. Additionally, we have put considerable efforts on development and design, which can enable us to better satisfy customers' changing needs in a positive manner.
We are pleased to be your stable railway parts, components any products such as casting parts, bogies we can make them according to your drawings.
We sincerely welcome you to visit our company for cooperation and mutual development.
