Prod Model: |
CF-087 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Package: |
Pallet ,Manmade Wooden Case or as Your Requirement |
Tolerance: |
0.5mm |
Port: |
Qingdao |
Brand: |
Chifine |
Machining: |
CNC Turning Milling Drilling |
Servie: |
OEM and ODM |
Certificate: |
ISO9001 SGS CE |
Delivery Time: |
30 Days After Receiving The Payment |
Surface Treatment: |
Powder Coating, Painting, Plating, Galvanizing |
Technology: |
Lost Wax Casting+Machining |
Casting Method: |
Thermal Gravity Casting |
Material: |
Carbon Steel |
Surface Preparation: |
Sand Blast |
Product Description

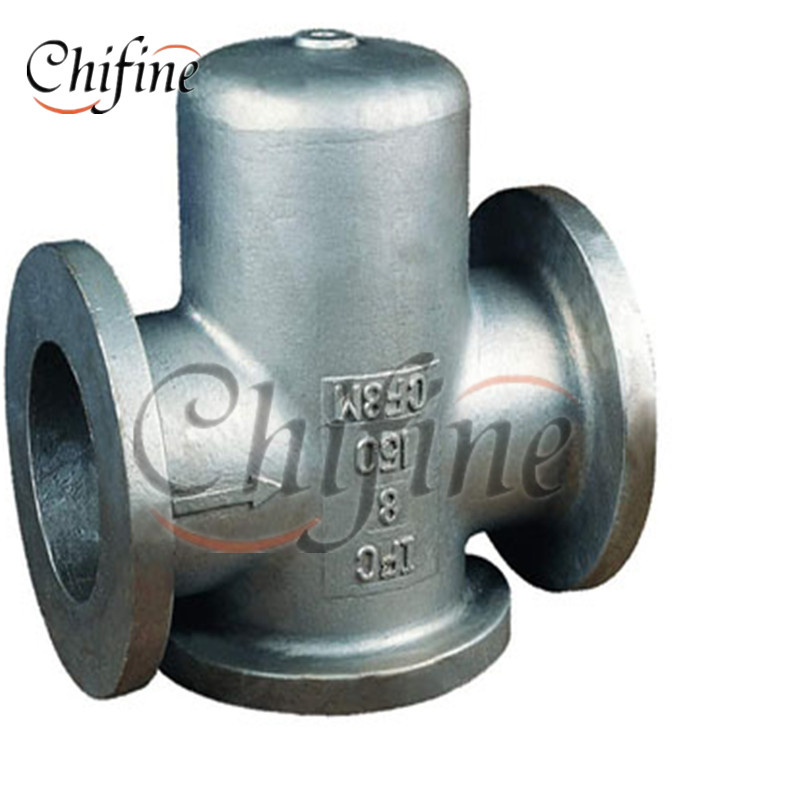

Carbon Steel Precision Cast Investment Cast
1. OEM carbon steel precision casting as per urdrawings/samples.
2. Material&Dim tolerance according to international standar
3. Quality certification: ISO9001;
4. MOQ: 500 pieces;
5. Weight range: 2g-50kg 500mm*500mm*500mm;
7. Material & dimension tolerance standardUS ICI, ASTMGermany DIN, VDG P690Japan JIS;
8. We OEM stainless steel, carbon steel, alloy steel investment casting as per your drawings or samples;
9.3 top managers with rich experience have been engaged in foundry for more than 20 years;
9. Serving customers with a package solution in terms of optimizing design of part, casting, machining, heat-treatment and finish so that our customers can cut down costs in their products and obtain value-added parts;
10. We set up a material laboratory equipped with advanced apparatus and machines like spectrum analyzer/three coordinates measuring machine which ensures chemical compositions of material/dimension tolerance to be correct;
11. Products cover wide application: Machinery parts, automobile parts, medical equipment parts, electronic instrument parts, marine hardware, hardware tools, and etc;
12. The annual capacity is more than 600 tons, 80% of them have been exported to the America, Europe and Japan.
Our Advantages
(1) eleven years of experience in manufacturing and exporting.
(2) OEM and custom-made service.
(3) All kinds of castings can be manufactured according to drawing, sample or specific industry standard.
(4) Both parts and assembly can be supplied.
(5) Strong engineering team makes high quality
(6) The coordinated service (casting, machining and surface treatment) make lower price possible.
(7) Advanced-level equipments.
(8) Full material testing process and quality control system. (Chemical compostion/Mechanical property/Harness/Microstructure)
(9) Quality warranty and on time delivery.
Our Inspection Equipment:
Direct-reading spectrograph,metallographic microscope,hardness tester,brinell hardness tester,thermometric indicator,universal testing machine,carbon and silicon analysis meter,magnetic powder flaw detector,digital ultrasonic flaw detector etc.
Our Service:
1.Your inquiry related to our products or prices will be replied in 12 hours.
2.Individual formula according to customers' special drawing requests.
3.Manufacturer with large capacity,ensures the fast production cycle after
confirming the order.
4.Protection of sales area and private information for all of our customers.
Quality Control:
We have a full set of quality control system to guarantee best product quality. Depending on the products, we can make different Item Testing Plan, Manufacturing procedure etc.
Raw material control
Chemistry spectrum analysis
Mechanical property
Metallographic analysis
Ultrasonic testing
Magnetic testing
Radiographic testing
Dimension inspection
Visual inspection
Penetrant testing
Leak testing
Hardness test
Micro-structure tester after heat treatment
Machining Ability
Our machining shop located in Qingdao using the latest CNC equipment to provide our customer with high quality products.
Horizontal and Vertical Machining Center
CNC lathe and normal lathe
CNC drilling and milling Center
Other assistant equipment
Qingdao Chifine Machinery Co., Ltd is one famous company in China which specialized in various metal casting products with over 10 years experience located in Qingdao China. It covers a comprehensive range of forging, stamping, sand casting, investment casting, die casting and machining and was widely used in Agriculture machinery, Motor Vehicle, Architecture, Railway and Engineering
As a professional company, Chifine have four groups of experienced teams to be in charge of different work:
Project team-customer service
Engineering team-provide R&D and technical support
QC team-productive process control and incoming parts inspection
Warehouse team-warehouse management and logistic service
PROCESS | MATERIAL | STANDARD |
SAND CASTING | Green Sand | Grey Iron, Ductile Iron, Malleable Iron, Stainless Steel, Carbon Steel, Aluminium, Brass, Bronze |
AISI ASTM DIN GB BS JIS NF AAR |
Furan Resin Sand |
Cold Harden Resin Sand |
INVESTMENT CASTING | Sodium Silicone
(Water Glass) | Stainless Steel, Carbon Steel, Special Alloy Steel, Bronze, Brass, Aluminium |
Silica Sol |
FORGING | Hammer Forging | Stainless Steel, Carbon Steel, Alloy Steel, Brass, Aluminium |
Die Forging |
Roll Forging |
STAMPING MACHINING |
| All Metal Material |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
