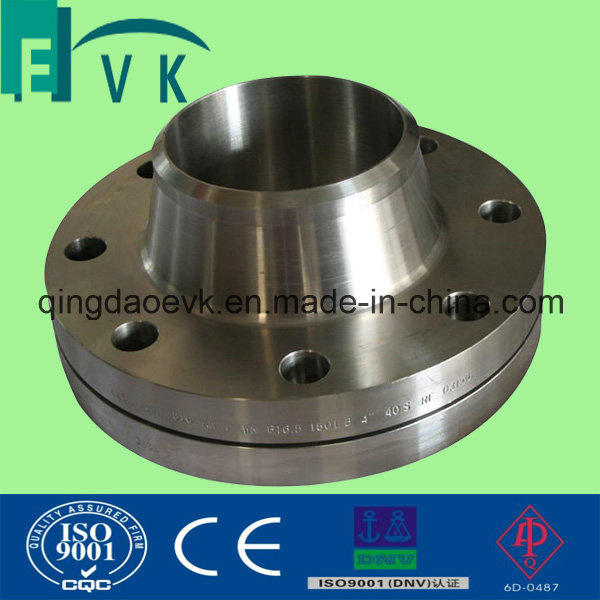

Carbon Steel/Stainless Steel Weld Neck Flange

Name: Carbon Steel/Stainless Steel Weld Neck Flange
Brand: china-castingforging.com
SKU: 724338015
Availability: InStock
Rating: 4.3 (26 reviews)

Price:	US $ 1-100/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Qingdao EVK Industrial Co., Ltd.

Showroom Product Company Profile

Prod Model:	ASME
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Dn15-2000
Pressure:	Pn16-250
Process:	Forged
Certificate:	ISO9001:2000;CE
Package:	Plywood Case, Pallet
Delivery:	Within 30 Days After Order Confirmed
Manufacturing Way:	Forging
Standard:	DIN
Type:	Welding Flange
Material:	Stainless Steel,Carbon Steel

Product Description

Carbon Steel/Stainless Steel Weld Neck Flange: 1. Specifications: Size: 1/2''-48'' Material: Stainless steel, carbon steel. Standard: DIN, ANSI, UNI, JIS Process: Forged Structure type: Slip on flange, Welding neck flange, Blind flange, Socket welding flange, Threaded flange, Lap joint flange, and so on. Pressure: PN16-PN250, 150-2500LB, 10K-40K. 2. Certificates: 3,Work Shop Corner:

Type	Flat Flange,Blind Flange,Slip On Flange,Weld Neck Flange,Etc.
Size	1/2"-48" , DN15-2000, 10A-1500A
Material	a). Stainless Steel: F304/304L, F316/316L, F316Ti, F321, etc. b). Carbon Steel: A105, 20Mn , 20 #, Q235, C22.8/C21, etc. c). Alloy Steel: F5, F9, F11, F22, 1Cr5Mo, 15CrMo, etc.
Pressure	a). ASTM B16.5:150LBS,300LBS,400LBS,600LBS,900LBS,1500LBS,2500LBS b). DIN:6Bar,10Bar,16Bar,25Bar,40Bar, c). BS4504,PN2.5-PN440,BS10:Table D,E,F,H, d). JIS:5K,10K,16K,20K,30K
Standard	A. GB: GB/T9112-9113.4-2000,JB/T74-86.2-94,HG20592-20626-97, SH3406-96,GB/T17241.1-17241.7,GB/T15530.1-15530.8 B. ANSI: ANSI B16.5/API605, 6A, 6B/MSS SP44/AWWA C207 C. DIN: DIN2527/2528/2561/2565/2566/2573/2576/2627-2630/2641 /2642/2655/ 2656/2673/86029/86030 D. BS: BS 4504 PN16, PN25, PN40/BS10 TABLE E / TABLE D E. JIS: JIS / KS 5K, 10K, 16K, 20K, 30K
Treatment	a) Lightly oiled b) Galvanized c) Painting with different colors d) as per customer's requirement
Inspection	a) Factory in-house b) Third party inspection available upon request Different accessories are available
Certificate	ISO9001: 2000, CE
Term of payment	L/C T/T(in advance)
Packing	Plywood case, wooden cases, or wooden pallet, or as per customers requirement
Delivery time	With 30 days or as requirement

EVK FITTING GROUP Co., Ltd (China) is a leading group, engaged in manufacturing valve, pipe fitting and flange, affilicating Qingdao EVK Industrial Co., Ltd, Yantai EVK Valve Manufacturing Co., Ltd, Hebei EVK Pipe Fitting Co., Ltd and Tianjin EVK Flange Fabrication Co., Ltd. EVK Group has more than 2000 staffs and covers around 150000 square meters totally.

Main production includes:

Valve: Cast iron/Ductile iron/Cast steel/Forged steel Valve( DIN3352 Resilient seated F4/F5 Gate valve, DIN3352 F4/F5 metal seated Gate valve, BS5163/BS5150/AWWA C509 Gate valve, API600 Gate valve, Wafer/Lug/Double flange butterfly valve, DIN/MSS Globe valve, Wafer/swing check valve, Y-strainer, JIS marine valve)

Pipe fitting: Carbon steel butt welding pipe fitting(Elbow, Straight and reducing tee, concentric and eccentric reducer, cap), Forged steel pipe fitting(Elbow, Tee, Reducer), Malleable iron pipe fitting.

Flange: Carbon steel and stainless steel forged flange(Flat flange, welding neck flange, slip on flange, blind flange).

Autoparts: Brake shoes, Brake pads, Brake discs, Brake drums.

We exported to more than 25 countries in the world, our main customers have CRANE, WALWORTH, OARI, etc. Our company was awarded with ISO9001 certificate and CE for our valve, pipe fitting and flange products.

Our blief is "Do friend first, Do business second", we welcome all friends from all over the world to do business together!
