Cardan Shaft for Rubber Machinery

Name: Cardan Shaft for Rubber Machinery
Brand: china-castingforging.com
SKU: 775685895
Availability: InStock
Rating: 4.7 (70 reviews)

Price:	US $ 1650-2800/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Wuxi Weicheng Driveshafts Co., Ltd.

Showroom Product Company Profile

Prod Model:	Cardan Shaft
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	Orange Black Yellow
OEM/ODM:	Available
Load:	Drive Shaft
Stiffness & Flexibility:	Stiffness / Rigid Axle
Axis Shape:	Straight Shaft
Shaft Shape:	Hollow Axis

Product Description

Production description

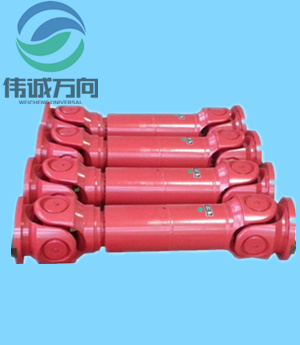

Almost 15 years,Weicheng has focused on the research and development, design and manufacture of cardan shafts on the rubber machinery. Our producted cardan shafts are widely used by rubber and plastic machinery manufacturer, famous for example, Dalian Hua Han Plastic Machinery Co. Ltd.; Yiyang Rubber & Plastics Machinery Group, Qingdao DoubleStar Rubber Machinery Co. Ltd., Beijing dedicated machinery Co. Ltd. and other large domestic rubber machinery production enterprises.
Now it is out of the country, the products are exported to Europe, North America and Southeast Asia and other regions. Designation of the universal shafts used in rolling machine, mixer, open rubber mixing machine. Our cardan shafts with the features such as, anti vibration, anti impact in the bad environment, anti dust corrosion, long service life,no need more maintenance, lengthened the cardan shaft repair cycle. According to customer requirements ,we can also customize the special connection mode of universal shafts with high coaxial, flexible joints, easy installation, perfect after-sales service.
The following table for SWC Medium-sized Universal Shaft Parameters.

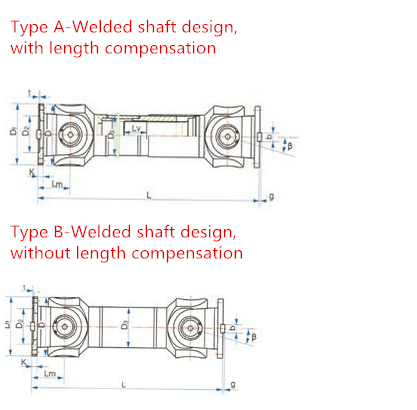

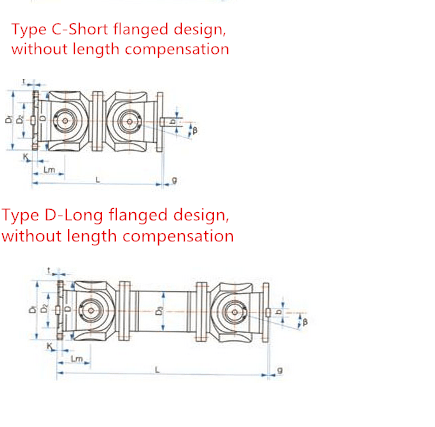

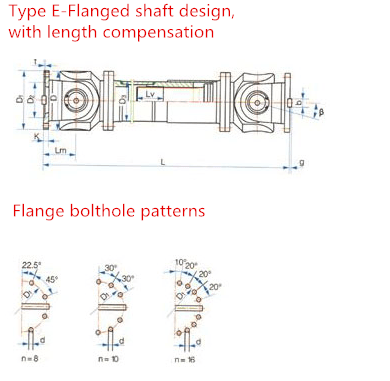

Designs

Data and Sizes of SWCZ Series Universal Joint Couplings

Type	Design Data Item	SWC160	SWC180	SWC200	SWC225	SWC250	SWC265	SWC285	SWC315	SWC350	SWC390	SWC440	SWC490	SWC550	SWC620
A	L	740	800	900	1000	1060	1120	1270	1390	1520	1530	1690	1850	2060	2280
	LV	100	100	120	140	140	140	140	140	150	170	190	190	240	250
	M(kg)	65	83	115	152	219	260	311	432	610	804	1122	1468	2154	2830
B	L	480	530	590	640	730	790	840	930	100	1010	1130	1340	1400	1520
B	M(kg)	44	60	85	110	160	180	226	320	440	590	820	1090	1560	2100
C	L	380	420	480	500	560	600	640	720	782	860	1040	1080	1220	1360
C	M(kg)	35	48	66	90	130	160	189	270	355	510	780	970	1330	1865
D	L	520	580	620	690	760	810	860	970	1030	1120	1230	1360	1550	1720
D	M(kg)	48	65	90	120	173	220	250	355	485	665	920	1240	1765	2390
E	L	800	850	940	1050	1120	1180	1320	1440	1550	1710	1880	2050	2310	2540
	LV	100	100	120	140	140	140	140	140	150	170	190	190	240	250
	M(kg)	70	92	126	165	238	280	340	472	660	886	1230	1625	2368	3135
	Tn(kN·m)	16	22.4	31.5	40	63	80	90	125	180	250	355	500	710	1000
	TF(kN·m)	8	11.2	16	20	31.5	40	45	63	90	125	180	250	355	500
	Β(°)	15	15	15	15	15	15	15	15	15	15	15	15	15	15
	D	160	180	200	225	250	265	285	315	350	390	440	490	550	620
	Df	160	180	200	225	250	265	285	315	350	3690	440	490	550	620
	D1	137	155	170	196	218	233	245	280	310	345	390	435	492	555
	D2(H9)	100	105	120	135	150	160	170	185	210	235	255	275	320	380
	D3	108	114	140	159	168	180	194	219	245	273	299	325	402	426
	Lm	95	105	110	125	140	150	160	180	195	215	260	270	305	340
	K	16	17	18	20	25	25	27	32	35	40	42	47	50	55
	T	4	5	5	5	6	6	7	8	8	8	10	12	12	12
	N	8	8	8	8	8	8	8	10	10	10	16	16	16	16
	D	15	17	17	17	19	19	21	23	23	25	28	31	31	38
	B	20	24	32	32	40	40	40	40	50	70	80	90	100	100
	G	6.0	7.0	9.0	9.0	12.5	12.5	12.5	15.0	16.0	18.0	20.0	22.5	22.5	25
	MI(Kg)	2.57	3	3.85	3.85	5.17	6	6.75	8.25	10.6	13	18.50	23.75	29.12	38.08
	Size	M14	M16	M16	M16	M18	M18	M20	M22	M22	M24	M27	M30	M30	M36
	Tightening torque(Nm)	180	270	270	270	372	372	526	710	710	906	1340	1820	1820	3170

1. Notations:
L=Standard length, or compressed length for designs with length compensation;
LV=Length compensation;
M=Weight;
Tn=Nominal torque(Yield torque 50% over Tn);
TF=Fatigue torque, I. E. Permissible torque as determined according to the fatigue strength
Under reversing loads;
β=Maximum deflection angle;
MI=weight per 100mm tube
2. Millimeters are used as measurement units except where noted;
3. Please consult us for customizations regarding length, length compensation and
Flange connections.
(DIN or SAT etc. )

Wuxi Wei Cheng driveshaft Co., Ltd. Has been focused on the research and development, production and sales of the universal shaft 15 years. Annual production of 15000 sets of universal shaft.

Company independent research and development of light, medium, short, heavy universal shaft are to achieve the leading domestic level, the product is not only supporting the domestic large and medium-sized enterprises, but also exported to India, Vietnam, Laos, Ukraine, Russia, Germany, the United Kingdom and other countries.

In the fifteen years, the company has accumulated rich experience, learning foreign advanced technology, and to absorb and use, the universal shaft for many times to improve, so as to improve the structure, performance is significantly improved. Firm belief: "innovation, optimize the structure, persevere" creating a high quality universal shaft excellent production enterprises. We always adhere to the quality of ISO9001 system management and control quality, from the details of the process, and to achieve processing equipment, special machine, CNC product quality is rapidly increased, not only won the majority of customers reputation, but also get peer recognition.

We continue to strive for: "to create the greatest value for customers, to build the best platform for employees", we must realize the mutual benefit and win-win between customers and enterprises.
