| Prod Model: |
SWC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Universal |
| Load: |
Drive Shaft |
| Stiffness & Flexibility: |
Flexible Shaft |
| Axis Shape: |
Crankshaft |
| Shaft Shape: |
Stepped Shaft |
Product Description

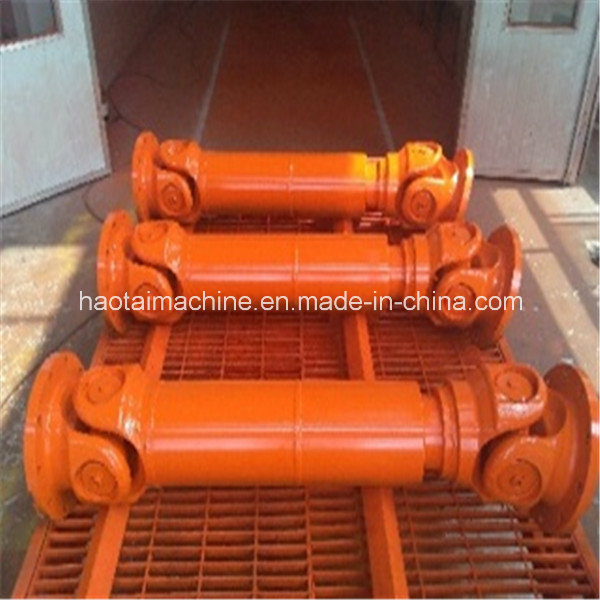

Cardan Shaft for Steel Rolling Equipment
Specifications
1. Universal drive shaft
2. Bearing heavier weight of cardan drive shaft
3. Reasonable configuration of flexible drive shaft
4. No friction with small universal joint shaft
5. CE & ISO certificate of material used in drive shaft .
Brief introduction
We offer Cardan shaft coupling that includes universal joint shaft couplings - swc type, universal joint shaft couplings - swp type, universal joint shaft couplings - swz type, cross for universal joint shaft couplings.
Heavy duty cardan shaft universal joint drive shaft advantage :
1.Excellent performance, long using life and competitive price.
2.Heat resistant&Distortion resistant
3.High intensity and rigidity.
4.Meet Iso9001: 2008 quality system
5.Your sample request are welcomed
6.With own R&D dept., OEM orders are available
Quality Control:
1.Chemical Composition confirm after Ingot
2.Hardness after Heat Treatment
3.Final Dimension Check
Quality Assurance Document:
1.Item Testing Plan will be submit to customer in 1 day after contract signed.
2.All the Q.A Document as per Client Requirement will be submitted before final product shipped out.
Packing and shipping:
1 Prevent from damage.
2. As customers' requirements, in perfect condition.
3. Delivery : As per contract delivery on time
4. Shipping : As per client request. We can accept CIF, Door to Door etc. or client authorized agent we supply all the necessary assistant
| Type | Design | SWC-1 | SWC-1 | SWC-1 | SWC-1 | SWC-1 | SWC-1 | SWC-1 | SWC-1 | SWC-1 | SWC-1 |
| Data |
| Item | 58 | 65 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | 225 |
| A | L | 255 | 285 | 335 | 385 | 445 | 500 | 590 | 640 | 775 | 860 |
| Lv | 35 | 40 | 40 | 45 | 55 | 80 | 80 | 80 | 100 | 120 |
| B | m(kg) | 2.2 | 3 | 5 | 6.6 | 9.5 | 17 | 32 | 40 | 76 | 128 |
| L | 150 | 175 | 200 | 240 | 260 | 295 | 370 | 430 | 530 | 600 |
| C | m(kg) | 1.7 | 2.4 | 3.8 | 5.7 | 7.7 | 13.1 | 23 | 28 | 55 | 98 |
| L | 128 | 156 | 180 | 208 | 220 | 252 | 340 | 348 | 440 | 480 |
| m(kg) | 1.3 | 1.95 | 3.1 | 5 | 7 | 12.3 | 22 | 30 | 56 | 96 |
| Tn(kN·m) | 150 | 200 | 400 | 750 | 1250 | 2500 | 4500 | 8400 | 16000 | 22000 |
| Tf(kN·m) | 75 | 100 | 200 | 375 | 630 | 1250 | 2250 | 4200 | 8000 | 11000 |
| β(°) | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 25 | 25 | 25 |
| D | 52 | 63 | 72 | 92 | 100 | 112 | 142 | 154 | 187 | 204 |
| Df | 58 | 65 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | 225 |
| D1 | 47 | 52 | 62 | 74.5 | 84 | 101.5 | 130 | 155.5 | 170 | 196 |
| D2(H9) | 30 | 35 | 42 | 47 | 57 | 75 | 90 | 110 | 125 | 140 |
| D3 | 38 | 38 | 40 | 50 | 60 | 70 | 89 | 102 | 114 | 140 |
| Lm | 32 | 39 | 45 | 52 | 55 | 63 | 85 | 87 | 110 | 120 |
| k | 3.5 | 4.5 | 5.5 | 6 | 8 | 8 | 10 | 12 | 14 | 15 |
| t | 1.5 | 1.7 | 2 | 2.5 | 2.5 | 2.5 | 3 | 4 | 4 | 5 |
| n | 4 | 4 | 6 | 4 | 6 | 8 | 8 | 8 | 8 | 8 |
| d | 5.1 | 6.5 | 6.5 | 8.5 | 8.5 | 10.5 | 13 | 15 | 17 | 17 |
| MI(kg) | 0.14 | 0.16 | 0.38 | 0.38 | 0.53 | 0.53 | 0.87 | 0.87 | 1.65 | 2.14 |
| Flange bolt | Size | M5 | M6 | M6 | M8 | M8 | M10 | M12 | M14 | M16 | M16 |
| Tightening torque(Nm) | 7 | 13 | 13 | 32 | 32 | 64 | 110 | 180 | 270 | 270 |
