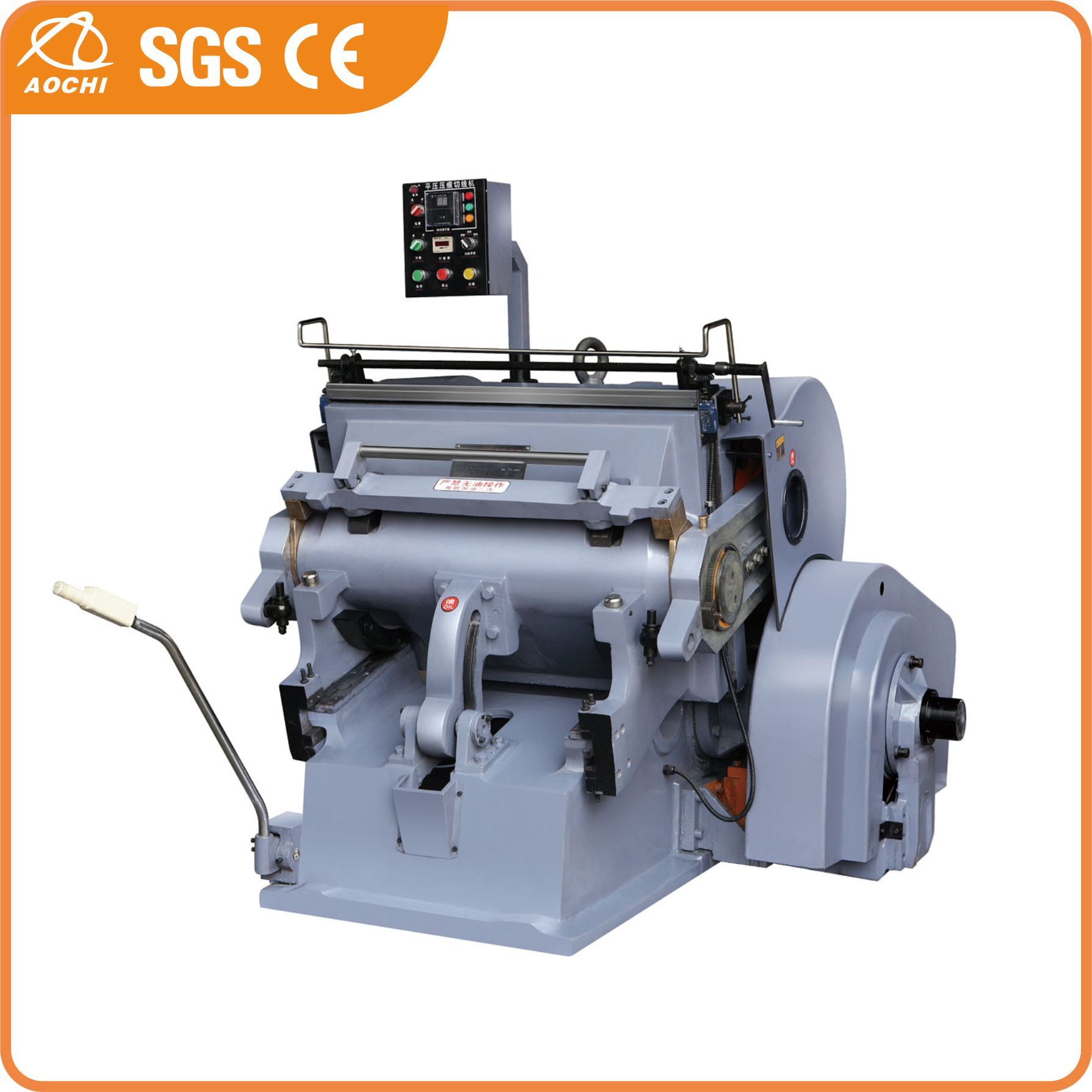

Cardboard Die Cutting & Creasing Machine (ML750/ML-930/ML1040)
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
ML750/ML-930/ML1040 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Semi-Automatic |
| Placing Form Of Template: |
Vertical |
| Imprinting Type: |
Platen |
| Application: |
Paper Packaging Materials |
| Die Cutting Tool: |
Steel Plate |
Product Description
Application:
The die cutting & creasing machines special equipments of die cutting and creasing a wide range of materials, such as cardboard, corrugated board, plastic and leather. They are applicable to the fields of printing, packaging, decoration and plastic industries' machines have been acceptable for the customers from home and abroad, due to their outstanding features, high quality and good service.
Features:
1. Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-frietion and shake reducing.
2. Flywheel is with big moment of force and large pressure.
3. High strength due to one piece casting by using top-ranking material for machine body.
4. Single plate electromagnetic clutch is sensitive and reliable.
5. With functions of single, continuous and opening dweel operation, dwell range is adjustable.
6. Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7. Safety system is reliable.
Samples:
Technical data:
|
Model |
ML750 |
ML930 |
ML-1040 |
|
Max.Rule Area |
750*520MM |
930x670mm |
1040X720mm |
|
Working speed |
25±2(strokes/min) |
23±3(strokes/min) |
23±3(strokes/min) |
|
Max Rule Length |
<15m |
<25m |
<28m |
|
Motor power |
2.2kw |
4kw |
4kw |
|
Overall Dimension(L*W*H) |
1450x1600x1450mm |
1750x1900x1700mm |
2000x2010x1900mm |
|
Weight |
1900kg |
3000kw |
3500kg |
