| Prod Model: |
ML-750 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max.Rule Area: |
750*520mm |
| Model: |
Ml-750 |
| Weight: |
1800kg |
| Overall Size: |
1450*1600*1450mm |
| Motor Power: |
2.2kw |
| Max Rule Length: |
15m |
| Speed: |
25+/-2 Strokes |
| Package: |
Wooden Case |
| Imprinting Type: |
Platen |
| Placing Form Of Template: |
Horizontal |
| Die Cutting Tool: |
Metal Mold |
| Automatic Grade: |
Automatic |
| Application: |
Earthquake Products |
Product Description

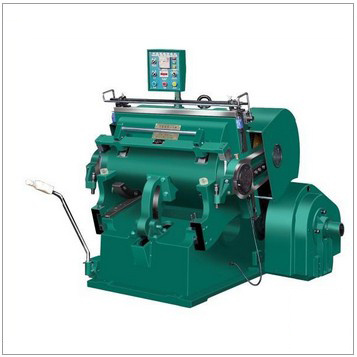

ML-1200 die cutting machine
Main features:
It adopts high quality material and high tension of casting. Four-shaft bevel wheel structure with steady operation, great cutting, low noise.
The operation height is reasonable, the open of frame is large
Electrical system is design according to IEC standard.
It has three functions for single slitting, successive slitting. Time delay, The scope can be adjusted.
Safety protection system is reliable. Concentrated lubricating system
Product Description:
It's kind of special equipment for all assortments of common card boards, corrugated boards, plastic sheets, leather products, It's suitable for printing, packing, decorating, plastic industries etc.
With the features of firm structure, exquisite making, great cutting. High precision, ease of operation, safety and reliability etc.
Features
· Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing.
· High strength due to whole body casting with top quality material
· Smooth running, high pressure and low noise with 3-step helical gear mechanism
· Flywheel is with big moment of force and heavy pressure.
· High strength due to one piece casting by using top-ranking material for machine frame.
· Single plate electromagnetic clutch is sensitive and reliable.
· With functions of single, continuous and opening dwell operation, dwell range is adjustable.
· Operating position is reasonably arranged, moving-bed can be opened to its optimum.
· Safety protection system is reliable
· With concentrated lubricating system.
· Adjustable chases
· Connecting rod adopts 45# carbon steel with high strength.
· platform is made of hard enough stainless steel
| Model | max.rule area | Working speed | Max.rule length | Motor power | Weight | Overal dimension |
| ML3000 | 3000*1650mm | 13+/-2(stokes/min) | <100m | 30kw | 28000kg | 2900*3750*2600mm |
| ML2500 | 2500*1400mm | 13+/-2(stokes/min) | <75m | 18.5kw | 19000kg | 2300*3600*2150mm |
| ML2000 | 2000*1400mm | 16+/-2(stokes/min) | <58m | 15kw | 15500kg | 2270*3100*2150mm |
| ML1800A | 1800*1400mm | 16+/-2(stokes/min) | <52m | 15kw | 14800kg | 2240*2800*2130mm |
| ML1800 | 1800*1280mm | 16+/-2(stokes/min) | <50m | 11kw | 13000kg | 2180*2760*2100mm |
| ML1600 | 1600*1250mm | 16+/-2(stokes/min) | <43m | 11kw | 11800kg | 2170*2560*2080mm |
| ML1500 | 1500*1100mm | 17+/-2(stokes/min) | <40m | 7.5kw | 8300kg | 2010*2480*1960mm |
| ML1400 | 1400*1000mm | 17+/-2(stokes/min) | <38m | 7.5kw | 7200kg | 2010*2400*1950mm |
| ML1300 | 1300*920mm | 18+/-2(stokes/min) | <38m | 7.5kw | 6000kg | 2000*2140*1940mm |
| ML1200 | 1200*850mm | 18+/-2(stokes/min) | <32m | 5.5kw | 4800kg | 1950*1950*1930mm |
| ML1100 | 1100*800mm | 20+/-2(stokes/min) | <30m | 5.5kw | 4200kg | 1900*1780*1700mm |
| ML1040 | 1040*720mm | 21+/-2(stokes/min) | <30m | 5.5kw | 3900kg | 1800*1680*1660mm |
| PYQ203D | 930*670mm | 23+/-2(stokes/min) | <25m | 4kw | 3000kg | 1670*1670*1630mm |
| ML750 | 750*520mm | 25+/-2(stokes/min) | <15m | 2.2kw | 1900kg | 1260*1400*1280mm |
