Cast Iron Cardan Chain with an Additional Plate
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
100/Foot |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SJ400-40 SJ400-60 SJ400-100 SJ405S-60 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standards: |
ISO /DIN /ANSI |
| Brand: |
Dl |
| International Approvals: |
ISO /SGS |
| Style: |
Manufacture and OEM |
| Treatment: |
Heat Treatment |
| Delivery Detail: |
Seven Weeks |
| Material: |
Alloy/Carbon Steel |
| Surface Treatment: |
Heat Treatment ,Shot Blasting ,Oiling |
| Chain Size: |
Customize |
Product Description
Cardan Chain
The cardan chain is made up of a chain and a cardan which allows the chain to rotate in 360 degrees. This design makes it an optimum conveyor chain solution for overhead trolley conveyors.
Supported by specialized bearings in both horizontal and vertical planes, the product offers smooth and stable running on either crossed or circular style tracks.

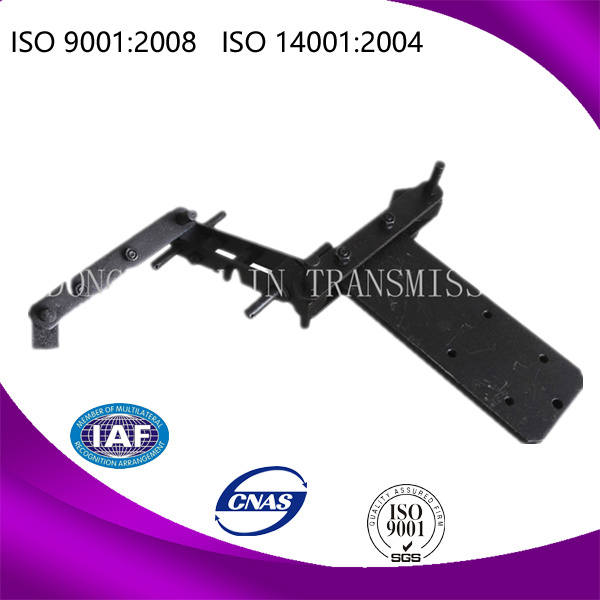

An additional plate is attached on the cardan chain, and the plate can be designed into varied forms according to the individual application demands.
The chain components are made of medium carbon steel and are heat treated to enhance surface performance. As for those chains to be utilized in corrosive environment, blackening treatment is performed so as to achieve corrosion resistance.

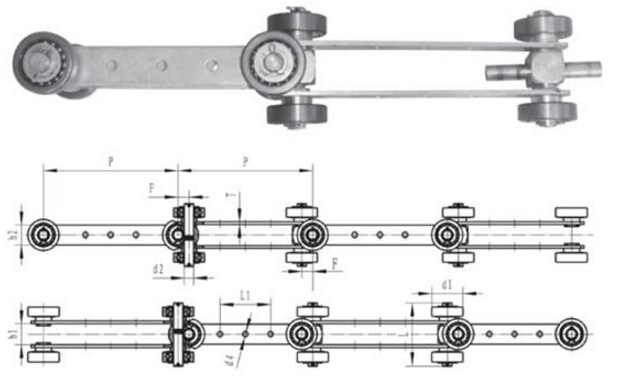

Chain No. | Pitch P (mm) | Inner width of inner link b1 (mm) | Diameter of roller d1 (mm) | Diameter of pin d2 (mm) | Length of pin L (mm) | Height of sidebar h2 (mm) | Thickness of sidebar T (mm) | Hole distance of attached plate L1 (mm) | Hole diameter of attached plate d4 (mm) | Hole distance of articulated block F (mm) | Tensile strength Q (KN) |
| SJ400-40 | 200 | 20 | 30 | 9 | 65 | 20 | 3 | 88 | 6.44 | 20 | 15 |
| SJ400-60 | 200 | 21 | 35 | 10 | 64.5 | 20 | 4 | 88 | 6.5 | 20 | 60 |
| SJ400-100 | 200 | 26 | 40 | 14 | 75 | 30 | 4 | 88 | 10 | 25 | 100 |
| SJ405S-60 | 203.2 | 30 | 47 | 14 | 95 | 30 | 4 | 76.2 | 8.4 | 16.5 | 50 |
| Pitch P (mm) | Inner width of inner link b1 (mm) | Diameter of roller d1 (mm) | Diameter of pin d2 (mm) | Length of pin L (mm) | Height of sidebar h2 (mm) | Thickness of sidebar T (mm) | Hole distance of attached plate L1 (mm) | Hole distance of articulated block F (mm) | Tensile strength Q (KN) |
| 190.5 | 26 | 38 | 13 | 105 | 28 | 4.5 | 60 | 23.2 | 98 |
| 203.2 | 26 | 38 | 13 | 105 | 28 | 4.5 | 60 | 23.2 | 98 |
