| Prod Model: |
CF-028 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet ,Manmade Wooden Case or as Your Requirement |
| Certificate: |
ISO 9001 |
| Origine: |
Qingdao |
| Brand: |
Chifine |
| Service: |
OEM and ODM |
| Delivery Time: |
30 Days After Receiving The Payment |
| Machining Type: |
CNC Tunring Milling Drilling Lathe |
| Supply Ability: |
1500tons Per Month |
| Heat Treatment: |
Anealling ,Quenching,Normalizing,Tempering |
| Process: |
Sand Casting+Machining |
| Type: |
Clay Wet Sand |
| Machining: |
CNC Machining, CNC Turning Milling Drilling |
Product Description

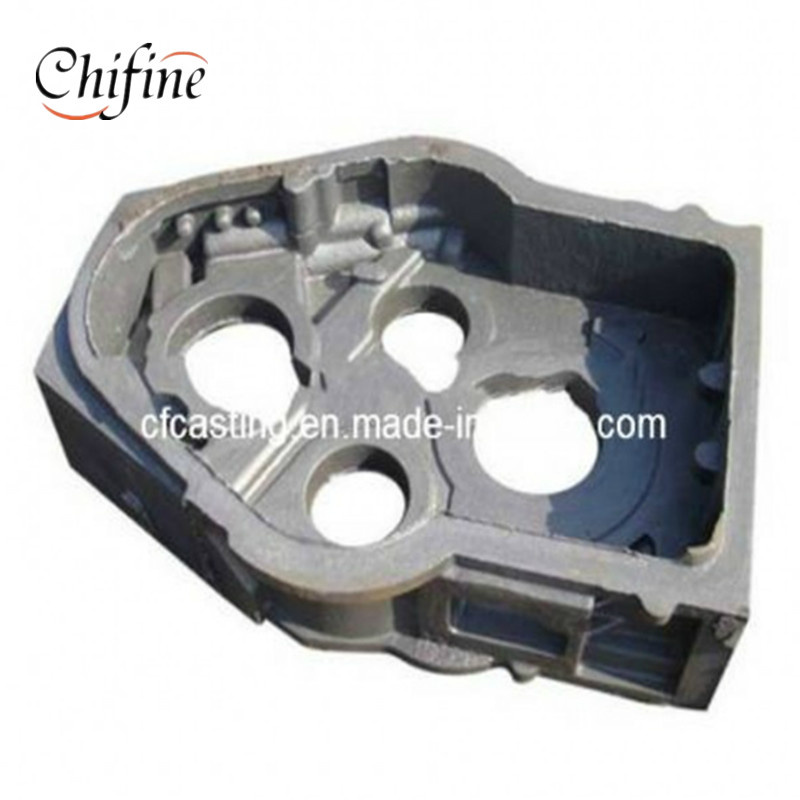

OEM gear box with sand casting:
1, Materials: Grey iron; Ductile iron; Aluminum and aluminum alloys A356-T6, A319, Alsi9mg, alsi12cu3 Copper and copper alloys, others: 65-45-12, 65-40-18, 80-55-6, 90-60-3, 100-70-2 GG20, GG25, GG30 1020, 1035, 1045, 4140, 8625, 304, 316
2, Casting tolerance: CT7-CT9
3, Standards: GB, ASTM, SAE, ISO, EN, DIN, JIS, BS
4, Piece weight:
(1) Al: 50 g - 100 kg
(2) Steel and iron: 0, 5 - 2000 kg
5, Heat treating: Annealing, discharge, carbonization, tempering, normalization and surface tempering 6, Surface finishing: Grinding, polishing, painting and various coatings
Machining:
1, Type: CNC drilling, CNC turning, CNC grinding, threading, routing and wire cutting
2, Materials: Nearly all materials available
3, Standards: GB, ASTM, SAE, ISO, EN, DIN, JIS, BS
Quality Control:
We have a full set of quality control system to guarantee best product quality. Depending on the products, we can make different Item Testing Plan, Manufacturing procedure etc.
Raw material control
Chemistry spectrum analysis
Mechanical property
Metallographic analysis
Ultrasonic testing
Magnetic testing
Radiographic testing
Dimension inspection
Visual inspection
Penetrant testing
Leak testing
Hardness test
Micro-structure tester after heat treatment
Our Service:
1.Your inquiry related to our products or prices will be replied in 12 hours.
2.Individual formula according to customers' special drawing requests.
3.Manufacturer with large capacity,ensures the fast production cycle after
confirming the order.
4.Protection of sales area and private information for all of our customers.
| ServiceRange: | 1. Rapid Prototyping; SLA/SLS prototype 3D printer models
2. CNC machining prototype
3. Industrial Design
4. Silicone mould; injection molding; resin mold and vacuum casting
5. Batching production (Injection)
6. Reliable engineering
7. Brass/aluminum parts CNC machining |
| Preferred Formats: | Pro/E, Solidworks, Unigraphics, Catia, Auto CAD, *.igs, *.stp, *.stl, *.x-t |
| Surface treatments: | Paint, polish, silk-print, anodize, transparent surface, translucent surface, brush, rubber oil, electroplat |
| Materials: | ABS, Polycarbonate (PC), polypropylene (PP), Polymethyl Methacrylate (PMMA), Polyethylene (PE), Polyoxymethylene (POM), polyamide (PA), Nylon, Polyurethane (PU), , Aluminum, Brass, Easy-cut-steel and etc. |
| IndustryRange | 1.Consumer electronics: Digital camera, mp3 player, television, calculators, GPS electronics, DVD/VCD player and etc.
2.Medical devices: B Ultrasound scanner case, Ultrasonic diagnostic imaging care, and etc.
3.Telecommunications: micro phone, speaker, monitor case, computer and etc.
4.Auto parts: dashboard, car lamp, bar, car door, motorcycle, scooter, bike and etc.
5.Household appliance: Cooker, air conditioner, TV, fan, shower, fridge, coffee machine and etc.
6.Others: customer made, toys, exhibition samples, testing samples |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
