| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Manmade Wooden Case or Pallet |
| Certificate: |
ISO 9001 |
| Production Capability: |
150ton/Month |
| Origin Place: |
Qingdao China |
| Brand: |
Chifine |
| Service: |
OEM and ODM |
| Machinining: |
CNC Turning Milling Drilling Lathe |
| Delivery Time: |
30 Days After Receiving The Paymnt |
| Type: |
Clay Wet Sand |
Product Description
1) 10 years foundry experience supplying brand European company
2) Casting materials: Grey iron & ductile iron casting
3) Casting process: Furan resin sand hand molding and centrifugal casting

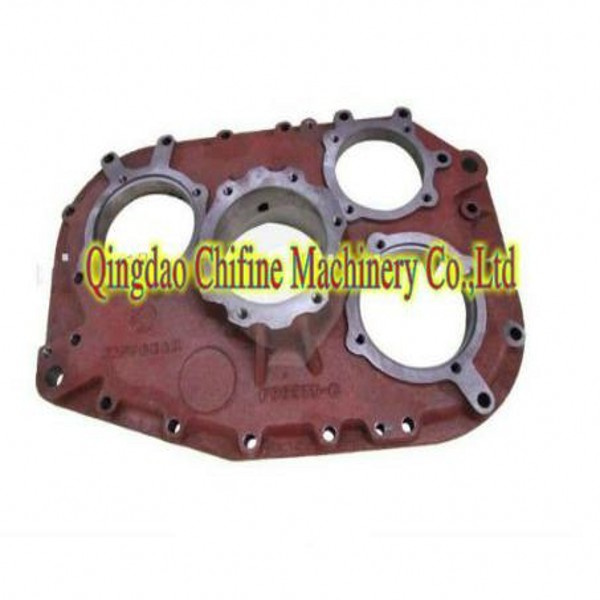

4) Products: Bearing housings, motor housing, gearbox housing, cylinder housingmachinery motors, shafting, and transmission parts
5) Casting products weight: 200KG-3000KG
| 1 ) Main production equipment: | CNC turning and milling machine, automatic lathe machine, thread rolling machine, drilling machine, tapping machine, etc |
| 2 ) Measuring & testing equipment: | Projector , concentricity tester, hardness tester, roughness tester, torsion tester, tensile force tester,etc. |
| 3 ) Materials: | Different kinds of stainless steel, Brass , aluminum, steel, etc. |
| 4) Finish: | Anodized, Polishing, zinc plated , nickel plated , chrome ,etc. |
| 5) Diameter size: | From 0.5mm to 500mm . |
| 6) Product size: | Customized size. |
| 7) Tolerance: | +/-0.005mm |
| 8) Products Use: | Used in electronics, lighting , home appliance, car, bike , computer, optical fiber products , medical equipment, mobile phone, Camera ,gas stove, gas heater, furniture etc. |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
