| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet, Manmade Wooden Case or as Your Requirement |
| Certificate: |
ISO9001 SGS |
| Origine: |
Qingdao |
| Service: |
OEM and ODM |
| Brand: |
Chifine |
| Delivery Time: |
30 Days After Receiving The Payment |
| Machining Type: |
CNC Turning Milling Drilling Lathe |
| Supply Ability: |
1500tons Per Month |
| Heat Treatment: |
Quenching ,Normalizing ,Tempering,Anealing |
| Type: |
Clay Wet Sand |
| Application: |

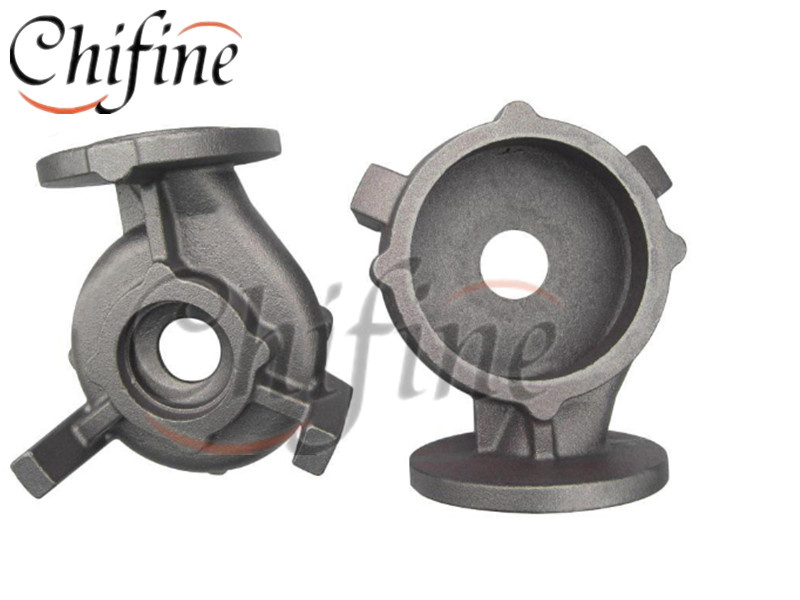

Pump Part |
Product Description
Product Description:
1) Material: Gray Iron, Ductile Iron.
2) Process: Green sand casting, resin sand casting.
3) Applied software for specification drawings: PRO/E, AutoCAD, Solidworks etc.
4) Facility: Electric furnace, cupola furnace, anneal furnace, sand mixing machine, shot blast chamber, various molding machine.
5) Precision machining: CNC, NC lathes, boring machines, milling machines, bench drilling machines, etc.
6) Surface Protection: Oiled (rust-proof), electroplating, hot DIP galvanizing, nickel or chrome plating, painting, powder coating.
7) Products' location: The special designed fittings, widely used in municipal and drainage system, power station, industrial equipment, vehicles, etc.
Advantages:
1). We have won the certificate of ISO9001: 2008.
2). We are one factory ,we can produce the casting by ourselves. The material covers cast iron ,carbon steel ,stainless steel and forging
3). Our strong R&D and QC department can control the products to meet your strict requirement.
4). We can provide OEM and ODM service. Customized order is available.
5).15years exporting experience. Our strong R&D and QC department can control the products to meet your strict requirement.
6) .Excellent and professional service:
Our Inspection Equipment:Direct-reading spectrograph,metallographic microscope,hardness tester,brinell hardness tester,thermometric indicator,universal testing machine,carbon and silicon analysis meter,magnetic powder flaw detector,digital ultrasonic flaw detector etc.Quality Control:
We have a full set of quality control system to guarantee best product quality. Depending on the products, we can make different Item Testing Plan, Manufacturing procedure etc.Raw material control
Chemistry spectrum analysis
Mechanical property
Metallographic analysis
Ultrasonic testing
Magnetic testing
Radiographic testing
Dimension inspection
Visual inspection
Penetrant testing
Leak testing
Hardness test
Micro-structure tester after heat treatment
material | grey cast iron, ductile cast iron, steel, stainless steel, brass, copper, bronze, aluminum, zinc etc |
| process | sand casting, precision casting ,die casting |
| Surface finishment | polishing, sand blasting, heat treatment, painting, powder coating, anodizing, electroplating, mirror polishing. |
| certificate | ISO9001 |
| Service | OEM service available |
| Main export market | Eastern Europe
Western Europe
North America
Mid Africa
Central America
Asia
Australia |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
