| Prod Model: |
CF-71 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet, Manmade Wooden Case or as Your Requirement |
| Certificate: |
ISO9001 SGS CE |
| Origine: |
Qingdao |
| Service: |
OEM and ODM |
| Brand: |
Chifine |
| Delivery Time: |
30 Days After Receiving The Payment |
| Machining: |
CNC Turning Milling Drilling Lathee |
| Supply Ability: |
150tons Per Month |
| Tolerance: |
CT7-CT9 |
| Quality Control: |
Professional QC and Test Equipment |
| Casting Method: |
Thermal Gravity Casting |
| Material: |
Stainless Steel |
| Surface Preparation: |
Sand Blast |
Product Description
Specifications

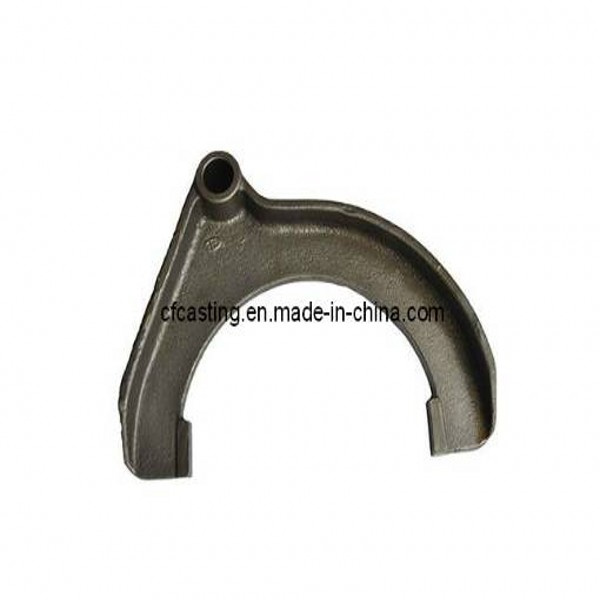

Clutch shift fork
1. ISO9001-2000TS16949, G3000
2. Gray iron, Ductile iron, metallichalf-metallic
3. OEM/BPW
4. All autos
Clutch shift fork
1. Material: A)Gray iron, Ductile iron,
B) Stainless steel, metallic, half-metallic
C) As per customers' requests
2. Process: Resin sand foundry producing line, one coated sand foundry producing line and one processing center line, e. G green sand and resin sand ect
3. Certificate: ISO9001-2000, TS16949, G3000
4. Mechanics performance: A)Main body degree of hardness: 163-255HBS
B)Testing rod tensile strength: >=220Mpa
5. Inscription styles: A) Helios Foundry
B)Standard inscription
C)As per customers' requests
6. Inspection: A)Foundry in-house
B)Third party inspection available upon request etc
7. Packing: A)Wooden Pallet
B)Wooden Case
C)Plywood, Waterproof membrane
D)according to customers' requirements
8. Equipments: A) machining equipments: CNC machining centers, NC lathes, boring lathe, vertical lathe, milling machine, grinding machine, planing machine, broaching machine, drill machine, and turning machine, etc.
B) casting machine: FBM production line, resin sand production line, molding machine production line etc
C) physical and chemical equipments: Spectral analyzer--Omnipotence hydraulic pressure test equipment, Metallographic analyzer, Ultrasonic detector, HB hardness analyzer and so on.
9. Delivery Detail: With 15-20 days after we received the 30% payment in advance.
10. Accessory: Various of accessories are available also
11. Coating: A)black bitumen, green etc
B)Without coating
C)Coating as per customers' requirement
12. Application: Heavy duty trucks, Truck Trailer, mini-car, light car, Semi-Trailer, Utility Trailers etc
13. Design: As per the customers drawings or sample
14. OEM: Yes
We are professional manufacturer for all kinds of casting and forging parts and are engaged mainly in OEM business,
Our aim is to provide all of our clients with value of the products instead of only low prices!
Welcome to visit our factory or contact us
Our Inspection Equipment:
Direct-reading spectrograph,metallographic microscope,hardness tester,brinell hardness tester,thermometric indicator,universal testing machine,carbon and silicon analysis meter,magnetic powder flaw detector,digital ultrasonic flaw detector etc.
Our Service:
1.Your inquiry related to our products or prices will be replied in 12 hours.
2.Individual formula according to customers' special drawing requests.
3.Manufacturer with large capacity,ensures the fast production cycle after
confirming the order.
4.Protection of sales area and private information for all of our customers.
Quality Control:
We have a full set of quality control system to guarantee best product quality. Depending on the products, we can make different Item Testing Plan, Manufacturing procedure etc.
Raw material control
Chemistry spectrum analysis
Mechanical property
Metallographic analysis
Ultrasonic testing
Magnetic testing
Radiographic testing
Dimension inspection
Visual inspection
Penetrant testing
Leak testing
Hardness test
Micro-structure tester after heat treatment
Machining Ability
Our machining shop located in Qingdao using the latest CNC equipment to provide our customer with high quality products.
Horizontal and Vertical Machining Center
CNC lathe and normal lathe
CNC drilling and milling Center
Other assistant equipment
Name | OEM Investment/Precision Casting-Stainless /Carbon/Alloy Steel/Iron Casting |
Technology |
Investment casting of silicon sol production line |
Material |
Stainless Steel Carbon Steel Alloy |
Surface Treatment |
Polishing, machining, machining center, plating, Heat Treatment, and so on |
Weight |
0.05kg~150kg |
Delivery time |
Samples within 7-10 days, mass production within 30-35 days. |
Packing |
Carton or according to customer's requirements |
MOQ |
100pcs |
Payment |
T/T,L/C |
Capacity |
150 tons per month |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
