| Prod Model: |
CYX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

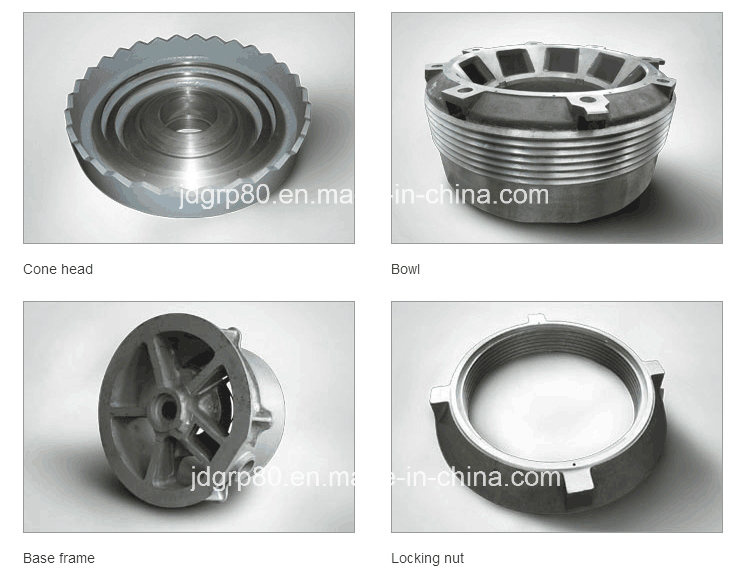

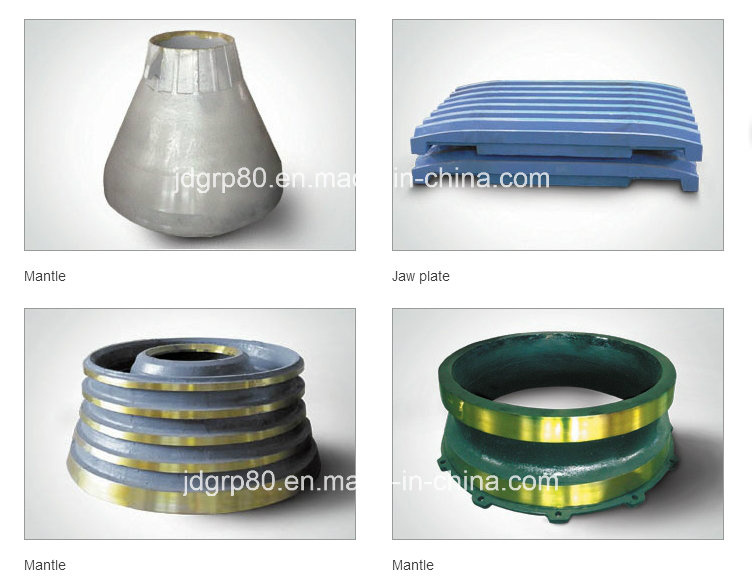

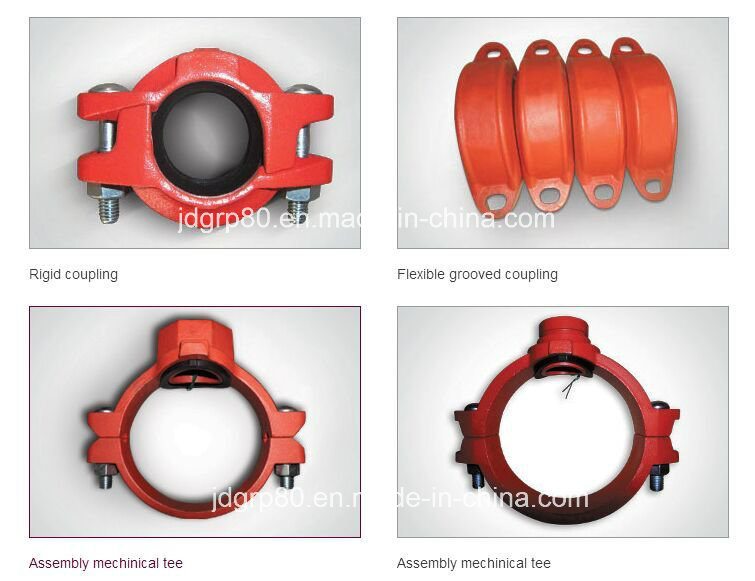

We have rich experience in CUSTOM MADE metal parts exactly according to customers' special requirements.
Please do not hesitate to send us drawings for best quote!
| GREY IRON International Specification Comparison Chart |
|
| Country | Standard & Designation | Class & Grade | | China | GB9439-88 | HT150 | HT200 | HT250 | HT360 | HT350 |
| | USA | ANSI/ASTM A 48-1983 | Class 20 | Class 25 | Class 35 | Class 40 | Class 50 |
| | Germany | DIN1691-1964 | GG 15 | GG 20 | GG 25 | GG 30 | GG 35 | GG 40 | | Japan | JIS G5501 | FC 15 | FC 20 | FC 25 | FC 30 | FC 35 |
| | France | NFA A32-101 | Ft 15D | Ft 20D | Ft 25D | Ft 30D | Ft 35D | Ft 40D | | Italy | UNI 5007 | G15 | G20 | G25 | G30 | G35 |
| | Britain | BS 1452 | 150 | 180 | 260 | 300 | 350 | 400 |
|
|
|
| DUCTILE IRON International Specification Comparison Chart |
|
| Country | Standard & Designation | Class & Grade | | China | GB1348-88 | QT400-18
QT400-15 | QT450-10 | QT500-7 | QT600-3 | QT700-2 | QT800-2 | | USA | ANSI/ASTM A536 | 60-40-18 | 65-45-12 | 70-50-5 | 80-55-06
100-70-03 | 120-90-02 | 80-55-03 | | Germany | DIN 1693 | GGG40 |
| GGG50 | GGG60 | GGG70 | GGG80 | | Japan | JIS G5502 | FCD 37 | FCD40 | FCD45/50 | FCD60 | FCD70 | FCD80 | | France | NF A 32-201 | FGS 370-17 | FGS 400-12 | FGS 500-7 | FGS 600-3 | FGS 700-2 | FGS 800-2 | | Italy | UNI 4544 | GS 370-17 | GS 400-12 | GS 500-7 | GS 600-2 | GS 700-2 | GS 800-2 | | Britain | BS 2789 | 400/18 | 420/12 | 500/7 | 600/3 | 700/2 | 800/2 |
|
|
|
| ALLOY IRON International Specification Comparison Chart |
|
|
|
| CARBON STEEL |
|
| Country | Standard | Class & Grade | | China | GB | Q235,15,20,25,30,35,40,45,50,55,60,75,80
ZG 200-400,ZG230-450,ZG270-500,ZG310-570 | | USA | ANSI/ASTM
ASTM 216
A352 | 1010,1020,1025,1030,1040,1045,1050,1060,1070
WCB,WCC,WC6,WC9
LCB,LCC | | Germany | DIN | C15,GS-C25,GS-C35 | | Japan | JIS | SCPH44,SCPL11,S20C,S25C,S45C | | Britain | BS3100 | A1,A2,A3,A4,A5,A6,AM1,AM2,AW1,AW2,AW3 |
|
|
|
|
|
| LOW ALLOY STEEL |
|
| Country | Standard | Grade & Class | | China | GB./ZG | 30MN,45MN,60MN,20MNSi,35MNSi,45MNSi,20MNMO,20Cr,30Cr,40Cr,
15CrMo,30CrMo,42CrMo,20CrMN,25CRMN,35CrMN,40CrMo,20CrNI,
40CrNi,45CrNi,40CrNiMo | | USA | ANSI/ASTM
ASTM A 217 | 8620,8630,4130,4140,5120,5130,5140,3120,3140,4343,WC6,WC9,C5 | | Germany | DIN 17200 | 28Cr4,41Cr4,15CrMo5,25CrMo4,4`CrMo4,36NiCR6,36CrNiMo4 | | Japan | JIS | SCr420,SCr440,SCM415,SCM430,SCM440,SNC236,SNCM439 | | Britain | BS3100 | B1,B2,B3,B4,B5,B6,B7,BW1,BW2,BW3,BW4 |
|
|
|
|
|
| STAINLESS STEEL |
|
| Country | Standard | Grade & Designation | | China | GB./ZG | ICr13,ICr15,2Cr13,OCr13,ICr18NI9Ti,OCr18N i9,OcR25Ni20 | | USA | ANSI/ASTM | 301,302,303,304,305,308,310,316,410,420,440,304L,316L,CF3,CF3M,
CF8,CF8M | | Germany | DIN 17200 | 1.4310,1.4305,1.4301,1.4543,1.4303,1.4401,1.4406 | | Japan | JIS | SUS301,SUS303,SUS304,SUS310,SUS316 | | Britain | BS3100 | 302S25,303S21,305S19,316S16,321S20 |
|
|
|
|
|
| MALLEABLE IRON |
|
| Country | Standard | Grade & Designation | | China | GB9440 | KTH 300-06, KTH 350-10KTZ,450-06, KTZ 550-04,
KTZ650-02,KTB 350-04, KTB 380-12, KTB 400-05, KTB 450-07 | | USA | ANSI/ASTM A220 | 40010, 45008, 45006, 50005, 60004, 70003, 80002, 90001 | | Germany | DIN1692 | GTS-35-10, GTS-45-06, GTS-55-04, GTS-65-02, GTS-70-02
GTW 35-04, GTW 40-05, GTW 45-07, GTW 38-12 | | Japan | JIS G5702 | FCMB28, FCMB32, FCMB35, FCMB37
FCMW34, FCMW38, FCMW45, FCMW50, FCMW55 | | Britain | BS309 | W410/4, W340/3, B340/12, B310/10, B290/6
P690/2, P570/3, P540/5, P510/4, P440/7 |
|
|
|
|
Sichuan Yuanju Machinery Co., Ltd. Has dedicated itself to manufacture a wide range of hydraulic cylinder covering tie rod cylinders, welded cylinders and custom-made cylinders. We have been supplying our cylinders to European and United State for many years with top quality and competitive price.
Our capacity:
SAE, NPT, NPTF, BSP, Ports available.
Custom-Made cylinders and components available
Cylinder Range:
Bore: 18mm - 800mm (0.75" ~24")
Stroke: 100mm - 8000mm. (4" ~315")
"quality first, customer foremost" is our goal. We expect to work with customers home and abroad to set up long term and win-win business!
