| Prod Model: |
WS-21/22/29 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Casting Metal: |
Cast Iron |
| Casting Form Material: |
Metal |
| Casting Method: |
Special Casting |
| Casting Form Usage Count: |
Permanent |
Product Description

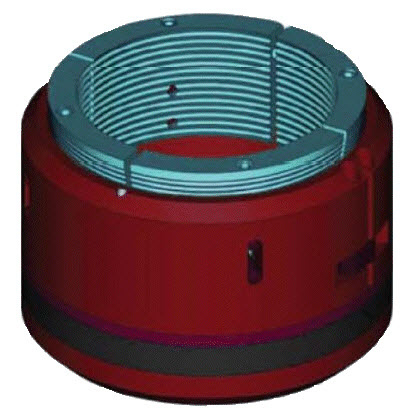

WS-22 Casing Hanger
WS-22 is a wrap around Casing Hanger that incorporates pack off, slip bowl and slips.
Pack off automatically seals the annulus below the slips when casing load is applied.
The WS-22 Hanger's controlled friction reduces casing deflection.
WS-22 casing hangers are easy to install and economical.
WS-21 Casing Hanger
WS-21 Casing Hanger combines slips, slip bowl and a type H pack off seal ring.
The seal ring provides a positive annulus pack off after the casing has been suspended and cut off.
WS-29 Casing Hanger
This Hanger provides a high hanging capacity with minimum casing deflection, when the upper slips move down and energize the pack off, the WS-29's non-tapered lower slips engage automatically and apply controlled compression.
The lower slips do not move down the pipe and thus do not create the high compressive forces seen in conventional tapered slips.
The WS29 offers far less casing deflection and much greater hanging capacity than other conventional hangers.
Wellhead Solutions Co., Ltd. is dedicated to manufacturing quality wellhead products for the Oil and Gas industry.
Our goal is to provide you with high quality machined components on time and at a competitive price. We want to be a strategic partner that helps build your business into one with a reputation for quality and reliability.
Wesco's team of experienced Quality inspectors continually monitors the process from raw material sourcing through manufacturing, testing, and packing to ensure the delivered products meet your stringent requirements.
Our in-house Engineering department provides control of drawings to ensure technical integrity and reliability, and is also available to help when needed to develop propietary customer designs.
We offer customers a one-stop service from raw material sourcing, heat treatment, rough machining, and final machining, through to marking, coating, and packing for shipment.
Wesco's long history of supplying high quality products has positioned it as the first choice for those who want access to Chinese contract machining through a company with proven integrity and a track record of delivering value.
Wesco was established in July 2007 as Shanghai Ruihao Machinery Equipment Manufacturing Co., Ltd. The company changed its name in 2012 to better reflect its position in the international marketplace.
Our API 6A licensed manufacturing facility is located in Maogang Urbanized Industrial Park in Songjiang District, Shanghai City, China. The 10, 000m2 facility includes a machine ship with 60 machines (70% CNC, 30% manual), a heat treatment area with 6 furnaces and 3 quench tanks, and a mechanical testing laboratory.
Manufacturing capacity was increased in 2012 with the addition of a 2000m2 shop facility. While the management team was also strengthened in Engineering, Quality, Supply Chain, and Sales.
Wesco is currently accedited with
ISO 9001: 2008
ISO 14001: 2004
OHSAS18001: 1999
API 6A
BV MODE II SCHEME
