Prod Model: |
JOC 2015 serial |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Weight: |
0.2kg~50kgs |
Tolerance: |
CT 3~4 |
Casting Method: |
Vacuum Aspirated Casting |
Material: |
Alloy Steel |
Surface Preparation: |
Polishing |
Product Description

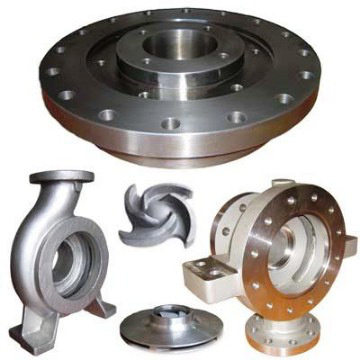

Pump Casting
In a mud pump, the bent axle is an important large-sized casting. In addition, mud pump cylinder liner, carbon steel valve, drive disk assembly of the screw mud pump, screw pump rotor, screw pump stator and pump casting are common pump casting parts.

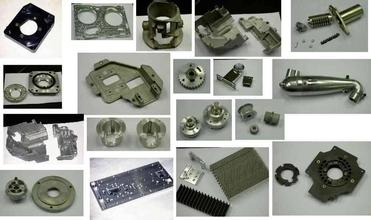

We supply OEM lost wax steel casting automotive parts/investment casting/precision casting.
Product description:
1. Automobile parts-auto rocker, auto support, parts for Turbocharger, etc.
2. Raw material: Cast steel, SS steel, steel alloy
3. Our castings use sodium silicate and silica sol precision casting process/investment casting /lost wax casting/precision casting.
Applicable Material | cast steel, cast iron, stainless steel, nodular cast iron, high chromium iron, high manganese steel,alloy steel,etc. |
Material Standard | GB, ASTM, AISI, DIN, BS, JIS, NF, EN, AS, ARR |
Weight | 0.02kg-50kg |
Tolerance | CT 5~7 |
Surface Roughness | Ra 3.2 |
Annual Output | 10000T |
Application | Auto, motorcycle,valve, marine, machine tools, hardware,railway, gear,impeller, pump, reducer, motor, mining machinery, engineering machinery, transmission machinery, forestry machinery, communal facility, etc. |
Drawings software | Pro/E, Auto CAD, Solidwork, CAXA UG, CAD/CAM/CAE. |
Machining | Turning, milling, drilling, grinding, threading ,NC, etc. |
Finishing | Sand blasting, polishing, plating, acid treatment, anodizing, painting, etc. |
Inspection Equipment | Germany SPECTRO spectrum analyzer, three elemental analyzer, micro hardness tester, Rockwell apparatus, metallurgical microscope,hardness tester, CMM, etc. |
Proofing Cycle | 4-7 days |
Process Cycle | 8-15 days |
Auto cooling pump seals Description
Stationary seat(SUS304/SUS316)
Drive ring(SUS304/SUS316)
Bellows(NBR/EPDM/VITON)
Spring(65Mn/SUS304/SUS316)
Sping retainer(SUS304/SUS316)
Stationary Ring(Plastic Carbon/Carbon/SiC)
Rotary Ring(Ceramic/SiC/TC)
Cup gasket(NBR/EPDM/VITON)
Model | d1 | d3 | d7 | L1 | L3 | L4 |
TSFW-12 | 12 | 30 | 24 | 14.5 | 5 | 8 |
TSFW-15 | 15 | 36.5 | 29.5 | 15.7 | 5 | 8.7 |
TSFW-16 | 16 | 36.5 | 29.5 | 15.7 | 5 | 8.7 |
TSFW-16L | 16 | 38.1 | 29.5 | 15.7 | 5 | 8.7 |
TSFW-19 | 19 | 40 | 34 | 17.5 | 6 | 11 |
TSFW-20 | 20 | 40 | 34 | 17.5 | 6 | 11 |
JOC Machinery Co., Ltd. Was founded in year 2000, specializing in foreign trade of machinery parts and complete sets of equipment. The ranges of products and services covering construction and building machinery, petroleum machinery, mining equipment, power cable production lines, electric power fittings, vehicle and motorcycle parts, industrial vales and etc. Have been exported to more than forty countries and regions of the world.
To better serve customers, stable supply and the quality of the products, we have successively set up three production bases that all certificated with ISO9001 or TS16949: In 2001, the Jiangyin factory was founded, whose main operations are investment casting and CNC machining; In 2005, the Yangzhou factory was founded, whose main operations are steel forging, stamping, fabrication, gravity casting of aluminum and galvanizing finish; In 2011, the Nanjing factory was founded, whose main operations are lost foam iron casting. Furthermore, since 2005 our Jiangyin factory Uni-metals also has established a joint-venture foundry with a British company for automobile turbo charge wheel of vacuum casting, and soon afterwards established 2 branch plants in India and Mexico.
We are committed to team the talents, integrate industry resources, and strive to further develop into a great enterprise of machinery parts and equipment. We look forward to working with you to create a better future.
