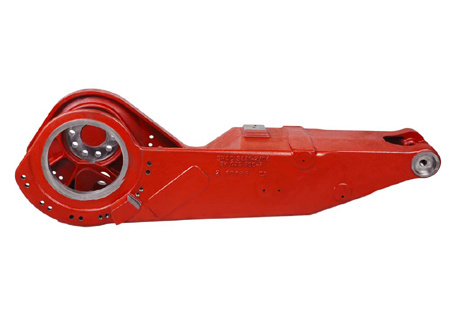

Casting Parts of Robot Arm Ductile Iron

Detailed introduction to Axle Arm Casting: Hefei Casting & Forging Factory is a core enterprise of Anhui forklift Group ,located in the east of China, near to Shanghai . Our Factory was built in 1958. With many years development and technology reforming in resent years, it has formed a modern enterprise with some advanced production lines. Our Factory owns strong ability of research and development. We have our own pattern design center. We have obtained the certificate of ISO16949,ISO14001&OHSAS18001. Vacuum foundry lines Our factory possesses four world-leading vacuum foundry lines. The capacity is up to 100,000t per year,and the weight is from 50kg to 16000kg. We can produce counterweights for Forklift, Elevator, Crane, Engineering Machinery, Farm Machinery, etc Our products not only supply to HELI forklift in China but also are exported to America, Europe and Asia. Accuracy of dimensions is up to CT9-CT11 grade. The surface finish is up to Ra 12.5-Ra25. Resin sand foundry line The molding machine as well as sand preparation line is imported from IMF of Italy. This line equipped with standard flasks and a special molding circle can produce castings effectively. This advanced line including special molding circle, and continuous sand mixer with component controlling, and Automatic molding assembly can make sure the accurate of castings with high quality of surface. Next to line, there is an area with resin sand preparation, which can meet small batch manufacturing and production of individuation The main products include: transmission, housing, case, valve, hub, wheel, axle, Bridge shell Static pressure molding line The equipments of the line were imported from KW of Germany. The automatic core making machine can supply cores with accurate dimensions. And pouring robot is adopted. In addition, automatic wire injection process is also used to improve effect of nodularing. These equipments can obtain high quality of casting. This line is suitable for mass production. The size of casting is less than 1220×700×400 Static pressure molding line can produce: about 35000 Ton per year The main production include: transmission, housing, case, valve, hub, wheel, axle, Bridge shell Lost Form foundry line Lost Foam Casting is known as Green Project of the 21st century. The key facilities of the line were imported from the U.S.A. and Germany. It supplies high quality castings for industry vehicles and relative industry. Products are transmission cases & brake drums used in forklift trucks. The production line is suitable to make ductile iron, gray iron . The capacity of the line can reach 1,0000t per year. CNC Machining We can supply all machined castings with high accuracy.

 Flatness, Strengteness and Roundness

Section Thickness	Possible Thickness Section Sink per Face of Casting
	Normal	Premium
Up to 25	0.20	0.10
25 to 50	0.40	0.20
50 to 100	0.60	0.30
100 to 150	0.80	0.40

Straightening adds cost, but sometimes cannot be avoided. The actual straightening costs are often dependent on the tightness of the tolerance specified, so do not specify tighter flatness, straightness, roundness, or other requirements than you actually require. (WOTECH typically straightens parts using die sets that will be included in your tooling price.)
