CE Approved Mechanical Punching Machine with Best Quality From China

Name: CE Approved Mechanical Punching Machine with Best Quality From China
Brand: china-castingforging.com
SKU: 705538982
Availability: InStock
Rating: 4.8 (138 reviews)

Price:	US $ 1500SET
Trade Terms:	FOB,CFR,CIF
Min Order:	1500SET
Pay Type:	L/C,D/P,Paypal,Western Union

Contact Supplier

NANTONG VASIA MACHINERY CO., LTD.

Showroom Product Company Profile

Prod Model:	J23
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	According to Buyer
Working Voltage:	According to Buyer
Price:	Factory Direct Sales with Best Price
Service:	Lifetime Service

Product Description

Our Factory Photo
Product Introduction

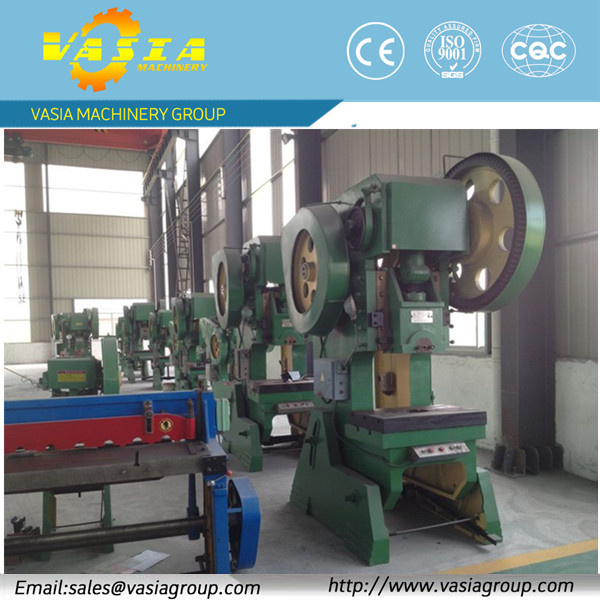

J23 Series open eccentric punching machine is one of the general-purpose punching machines,
which are applied in areas such as forming, blanking, punching, bending and other cold stamping process.
With C-frame casting fuselage,
this eccentric punching machine has maximum rigidity and minimum deflection for accurate parts and long tool life.
Its body can be tilted, high rigidity and less deformation compact.
Thick plates and large columns provide you with the stable platform you need for your requested application.
The eccentric punching machine uses rigid rotated bond clutch rigid and is well supported.
The clutch gives continuous strokes for mass production.
The crank shaft of the eccentric punching machine is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working,
longer life and accuracy.
Equipped with properly sized flywheel, the eccentric punching machine is made of high grade cast iron,
for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.
Its gear is of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.It is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards.
Optional protective fence and the safety interlock ensure the eccentric punching machine operate safely. Having a movable single-hand pedal switch makes it easy to operate.
Optional Models

Item			Unit		J23-6.3	J23-10	J23-25	J23-40	J23-63	J23-80	J23-100	J23-125
Nominal Pressure			Tons		6.3 Tons	10 Tons	25 Tons	40 Tons	63 Tons	80 Tons	100 Ton	125 Tons
Nominal Pressure Stroke			mm		2	2	4	5	6	6	10	12
Slide Stroke			mm		35	50	70	100	120	120	130	130
Strokes per Minute					170	130	70	60	50	50	45	45
Max. Die Height			mm		120	130	200	240	280	280	300	330
Die Height Adjustment			mm		30	35	55	65	80	80	100	120
Throat Depth			mm		110	130	200	200	230	260	300	330
Bolster Surface Size		F.B.	mm		200	240	320	430	450	480	550	650
Bolster Surface Size		L.R.	mm		310	360	520	650	710	780	950	1050
Bed Opening Size		F.B.	mm		110	100	190	150	200	220	250	340
		L.R.	mm		160	180	290	300	340	340	370	530
		Dia.	mm		140	130	260	200	250	260	300	450
Slide Surface Size		F.B.	mm		120	150	170	220	230	250	280	380
Slide Surface Size		L.R.	mm		140	170	250	280	300	320	360	510
Size of the handle hole			mm		Φ30X55	Φ30X55	Φ40X60	Φ50X70	Φ50X70	Φ60X70	Φ60X80	Φ80X80
Uprights Distance			mm		150	180	260	300	350	350	380	410
Thickness of Bolster			mm		30	50	60	80	90	90	100	110
Inclinable Angle			degree		45	30	30	30	30	30	25	25
Main Motor	Model				Y90S-6	Y90L-6	Y112M-6	Y132M1-6	Y132M2-6	Y132M2-6	Y132M-6	Y132M-4
Main Motor	Power			kW	0.75	1.1	2.2	4	5.5	5.5	7.5	11
Overall Dimension	F.B.		mm		780	915	1450	1500	1700	1810	1950	2150
	L.R.		mm		570	750	950	1180	1330	1450	1500	1350
	Height		mm		1500	1690	2100	2300	2540	2850	2800	3350
Gross Weight			kg		450	680	1630	2850	4100	4550	7350	8750

As a specialized China Metal-forming machinery manufacturer and supplier,
apart from mechanical punching machine, we can offer other hydraulic machines,
such as hydraulic punching machine,hydraulic shearing machine ,hydraulic press brake,
both mechanical and hydraulic rolling machines,hydraulic press machine,hydraulic iron worker and so on,
Please freely to contact us if you are interested in our machines,thanking you !

Nantong VASIA Machinery Manufacturing Company is one of the oldest manufacturer specialized in making shearing machine, press brake and rolling machine in China. It was set up in 1987 and changed to be an incorporated company in 2006. It is one of the biggest manufacturers in making most kinds of metal-forming machinery.

With uninterrupted development and accumulation, now our company has been a joint venture with three factories since 2013. Its total productivity is over one thousand sets machines. NC or CNC Shearing machines and press brake machines are getting the biggest market share all the time. Our company is well equipped and has a huge contingent of technicians. To chase up with the market and satisfy with all customers, we have developed and increased investment. Now we have advanced NC and CNC manufacturing equipments and quality detecting system. We have got ISO9001: 2008 certificate early in this business. The export products have also got the European Union CE certificate. A perfect quality system and advanced engineering design make production quality better than the others. Products include the manual mechanical type, electric driven type, hydraulic driven type, NC and CNC types that meet different requirements. Our main products are shearing machine, press brake, rolling machine, iron worker machine and punch press machine. They are mainly used in hardware, kitchen ware, electrical appliance, building materials, car industry, petrochemical industry, vessel, electric power industry ect.

We keep on improving ourselves and developing the new products. Now our products have been exported to nearly 40 countries and regions and have been highly appraised by customers.

In the process of globalization, we always follow the principles of "Survive by quality, develop by high efficiency and expand by high credibility". We will persevere and continue to provide customers with the first-class production and services so as to be a better and better manufacturer.
