| Prod Model: |
Q37 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
One Year |
| Industrial Experience: |
Over 20 Years Professional Design Experience |
| Cleaning Process: |
Steel Shot ,Steel Grit |
| Wear Parts Material: |
High Chrome Castings |
| After-Sales Service Provided: |
Available to Service Machinery Overseas |
| Dimension(L*W*H): |
Customized |
| Blast Wheel: |
High Chromium Wear Resistant |
| Dust Collector: |
Cartridge Filters / Bag Type |
| Low Voltage Apparatus: |
Chint or Delixi |
| Export Experience: |
Since 2009 |
| Application: |
Castings, Forgings, Weldment, etc |
Product Description

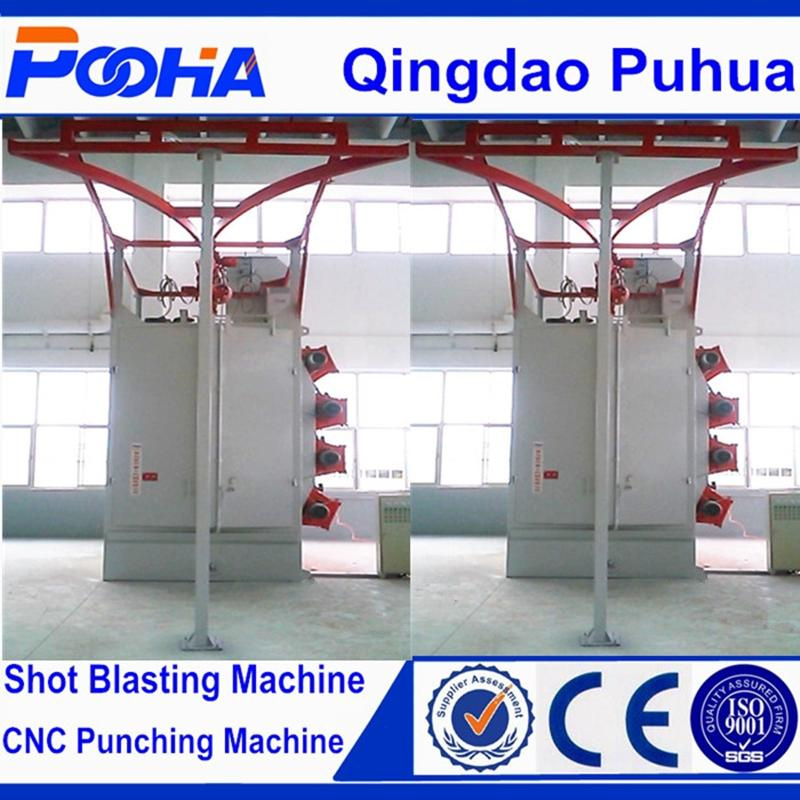

CE Quality double hook shot blasting machine In Stock
The hook type shot blasting machine is designed for surface cleaning and hardening of variety and small quantities of castings, forgings and steel profiles to remove attached green sand, core sand and scale.
1. Advantages
A. Ferrous and non-ferrous castings
B. Heat treated forgings
C. Many kinds of castings
D. Die castings and much more
E. Lower value parts where part on part impingement is not an issue
F. When production requires dictate batch processing
G. Small to medium size castings, fabrications and heat-treated parts
H. It makes a best effect on complicated workpieces both the surface and inner part, such as cylinder cap of engine and motor casing
I. It is an ideal choice for auto, tractor, diesel engine, motor and valve industry.
2.Structure
The machine is consists of shot blasting room, elevator, separator, screw conveyor, two pieces of impeller head assembles, abrasive control system, hook track, hook system, auto rotation device, foundation, dust collecting system and electrical control system, etc.
3. Specification:
Item |
Unit |
Q376 |
Q376B |
Q378c |
Q3710 |
Q3720 |
Q3730 |
Q3750 |
Q37100 |
Maximum weight of cleaning |
Kg |
500 |
600 |
800 |
1000 |
2000 |
3000 |
5000 |
10000 |
Abrasive flow rate |
Kg/min |
2*200 |
2*200 |
2*250 |
2*250 |
3*250 |
3*250 |
4*250 |
5*250 |
Ventilation capacity |
m3/h |
5000 |
5000 |
5000 |
5000 |
9000 |
11000 |
14000 |
16000 |
Lifting amount of elevating conveyor |
T/H |
24 |
24 |
30 |
30 |
45 |
45 |
60 |
75 |
Separating amount of separator |
T/H |
24 |
24 |
30 |
30 |
45 |
45 |
60 |
75 |
Max overall dimensions of suspender |
mm |
Ø600
*1200 |
Ø700
*1200 |
Ø1000
*1600 |
Ø1200
*1800 |
Ø1400
*2200 |
Ø1600
*2300 |
Ø1800
*2500 |
Ø3000
*3000 |
4. Notice:
According to your requirements, the most suitable machines will be designed for your workpieces, please indicate the following details.
A. What kind of workpiece will you clean?
B. The workpiece size, length, width, height and weight of maximum workpiece.
C. How many workpieces you want to clean per month?
Based on above detail information, the detailed technical proposals will be sent to you for reference.
Warmly welcome you to visit our factory in Qingdao.
