| Prod Model: |
AF-T40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Shanghai Ceiling Panel Roll Forming Machine |
| Machine Size: |
7m*1.4m*1.4m |
| Machine Color: |
as Require |
| Machine Weight: |
5tons |
| Control System: |
PLC |
| Cutting Type: |
Hydraulic |
| Driven Type: |
Chain |
| Usage: |
Building |
| Size Of Container: |
40gp |
| Life Long: |
10year |
| Forging Forming Method: |
Mold Forging |
Product Description

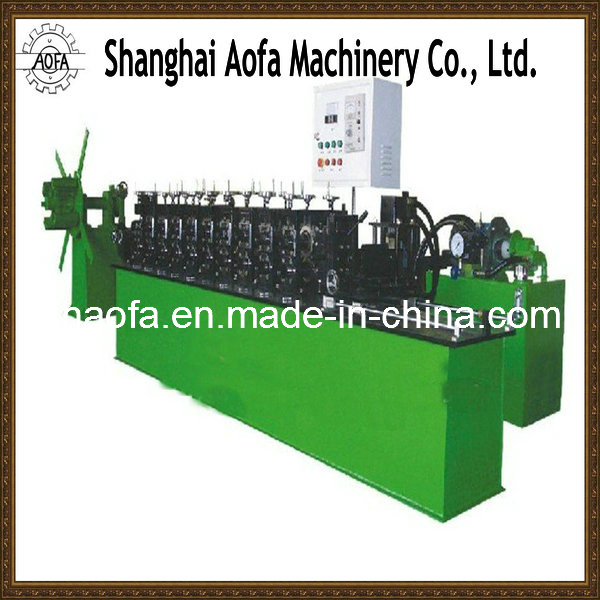

Shanghai ceiling panel roll forming machine
Other machine we manufacture
Cold roll forming mahcine, color steel roll forming machine, roof and wall panel machine, decking floor roll forming machine, floor decing forming mahcine, stud and track roll forming machine, Z and C purlin machine, highway guardrail roll forming machine, cable tray machine, and so on.
Working flow:
Decoiler-----feeding----- leveling and guiding ------roll forming ------ punching-----cutting----output table
Machine components:
1. De-coiler------------------------------------1Set
2. Feeding and Guiding Device----------1Set
3. Roll Forming Machine-------------------1Set
4. Punching device---------------------------1Set
5. Hydraulic Cutting Device----------------1Set
6. PLC Control Box---------------------------1Set
7. Output table---------------------------------1Set
Techincal description:
A. Manual decoiler
1) Capacity: 5tons
2) Loading width: MAX 1500mm
3) Valid expanding range for coil inner diameter: 450-600mm
B. Main roll forming
1) Main motor power: 5kw
2) Drive: Chain
3) Main shaft dia: ¢ 80mm material: 45#forge steel after treatment
4) Roller material: Gcr15 bearing steel and quench treatment hardness 58-62, chrome coated 0.05mm
5) Roll station: 11 groups
6) Raw material: 0.3-1.0mm
7) Valid width after fromed: According to drawing
8) Working speed: 10m--15m/min
C Cutting device
1)Cutting: Hydraulic cutting
2)Auto cutting when reach the set length.
3)Hydraulic power: 7.5KW
4)Blade material: Cr12, quenched 58° -62°
5)Working pressure: 16mpa
6)Cutting tolerance: +/- 1.5mm
D Punching
1)Hydraulic punching AFTER roll forming
2)Power: 7.5kw
E Control system
Type: PLC Frequency Control System with touch screen
PLC Brand: Japan Panasonic
Encoder Brand: Omron
Length Error: ± 2mm
Transducer: Panasonic
|
Terms |
|
Payment type |
30% T/T prepaid and balance should be paid before loading |
|
Delivery time |
30days after receving advance payment |
|
Guarantee period |
18monthes free service/ pay service all the machine life |
|
Installation and training |
If buyers visit our factory and check the machine,
we will teach you how to install and use the machine,
and also train your workers/technician face to face.
Without visiting, we will send you user manual
and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,
please arrange board and lodging and other necessary things. |
We mainly supply high quality roll forming machine. We have achieved good performance up to now, sincerely welcome businessmen overseas to establish a long-term cooperation to create a beautiful tomorrow!
Our factory mainly produce all kinds of roll forming machine, for example, rofo sheet roll forming machine, c purlin roll forming machine, glazed tile roll forming machine, deck floor roll forming machine, sandwich panel production line and so on.
Our factory is established form 2010, up to now, we have sold machines to Canada, Bolivia, South Africa, Dubai, India, Russia and many other countries,
Hope we can cooperate happily
