| Prod Model: |
GD W 08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Hunan, China (Mainland) |
| Model Number: |
Various Type |
| Shaping Mode: |
Compression Mould |
| Product Material: |
Wc+ Co with Steel Case |
| Service: |
OEM & ODM |
| Trial Order: |
Accptable |
| Virgin Material: |
100% |
| Rough Blanks: |
Offered |
| Certification: |
ISO9001:2000 |
| Dimensions: |
as Per Your Request |
| Type: |
Moulds |
Product Description
Specifications

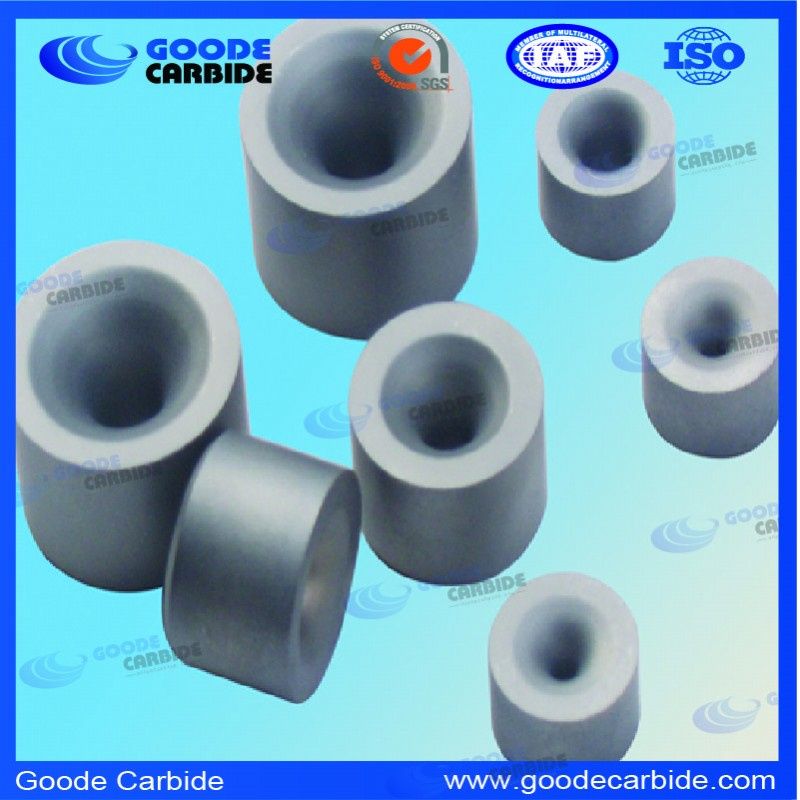

Tungsten carbide wire drawing dies / carbide nibs / carbide pellets / rod, bar, tube drawing
Product Description
Goode Carbide is a manufacturer of drawing dies with tungsten carbide blanks inside as a cost effective solution for a wide variety of wire processing applications. Carbide dies are frequently and successfully used in wire drawing (round & shaped), bunching, stranding, guiding, and split die applications.
Typically tungsten carbide dies are used for manufacturing wire or rod, generally in highly abrasive and high carbon material areas where PCD dies are not cost effective. It is often used in short run applications where trials, testing or small lots are desired.
Tungsten Carbide dies can be made in a wide range of sizes, ranging from 0.127 - 76.2 mm (. 005 - 3.000") or larger upon request.
Tungsten carbide, abbreviated as WC or TC, also called cemented carbide, hardmetal or widia, is a metal matrix composite where tungsten carbide particles are the aggregate and metallic cobalt serves as the matrix. It is a non-oxidizing ceramic that can withstand high temperatures while maintaining a hardness comparable to corundum or sapphire.
Key benefits of tungsten carbide dies
Sizes are available up to 76 mm rod (3.0")
Cost effective
Even and round wear during usage
Blanks are thermally stable up to 2870° C (5198 ° F)
Applicability
Tungsten carbide has been a base material for drawing dies for over 100 years and continues to be a viable option for many applications. Tungsten Carbide and Natural Diamond were the only materials for many decades. It wasn't until the invention of SSCD and PCD in recent years that the exclusive use of natural diamond and tungsten carbide was reduced.
Tungsten carbide dies are successfully used for applications that require high heat and shock resistance or when short runs are desired. The affordable cost of Tungsten Carbide makes this possible. Due to the relative ease of machinability and cost effectiveness; Tungsten Carbide is also the preferred material of choice for most shaped wire drawing dies.
Typical application areas:
Steel wire
Stainless steel wire
Copper wire
Aluminum wire
Tungsten wire
Various other ferrous and non-ferrous metal wire types
Product use
Tungsten carbide can be chosen as a raw material for the following products:
Wire drawing dies
Shaped wire drawing dies
Split dies
Bunching/Stranding dies
Extrusion tools
Compacting dies
Refurbishing/recutting drawing dies
Our Advantage:
1) Size standard or as per your requirements;
2) Very advantageous price.
3/ feedback within 24 hours;
4/ good English communication;
5/ professional suggestion on product;
6/ good training export sales person;
7/ skilled in tungsten carbide sell;
8/ could issue the C/O(certificate of origin) to customer to reduce the tax;
9/ could accept all payment terms of T/T, D/P, D/A, L/C, western union, pay-PAL and etc;
10/ could accept trial order.
About US:
Over 10 years OEM & ODM experience, so we have the confidence in:
1. We, GOODE CARBIDE, can accept order of all kind of special designed tungsten carbide products.
2. We, GOODE CARBIDE, promise you the 100% raw material.
3. We, GOODE CARBIDE, can finish your order within 7-30 days upon confirm the prepaid.
Also YOU and your drawing papers are warmly welcomed.
Support:
Whether you are looking for the right tool or need help with one you already own, we,
Zhuzhou Goode Industry Co., Ltd. Are here to help:
Order Support
Contact: Ms. Katrina Lee
Tel: 0086-731-22214608
Mob: 0086-13307333645
Web: Www. Goodecarbide. COM
|
GRADE |
ISO CODE |
COBALT CONTENT |
DENSITY |
HARDNESS |
TRS |
|
|
|
(%) |
g/cm³ |
HRA |
N/mm² |
|
K10T |
K05-K10 |
4.5-6.0 |
14.95-15.05 |
92.7 |
1800 |
|
YG8 |
K30 |
8 |
14.8 |
89.5 |
2200 |
|
YG6 |
K20 |
6 |
14.95 |
90.5 |
1900 |
|
YG6X |
K10 |
6 |
14.95 |
91.5 |
1800 |
|
YL10.2 |
K30 |
10 |
14.5 |
91.8 |
2400 |
|
YG13X |
K30-K40 |
13 |
14.3 |
89.5 |
2600 |
|
YG15 |
K40 |
15 |
14 |
87.5 |
2800 |
|
STANDARD TYPE OF TUNGSTEN CARBIDE FINISHED DRAWING DIE |
|
|
|
TYPE |
NIB SIZE (MM) |
STEEL CASE SIZE(MM) |
|
|
OD |
H |
ID |
OD |
H |
|
S SERIES |
S10~S60 |
8~140 |
6~60 |
0.4~80 |
28~200 |
12~70 |
|
W SERIES |
W103~W117 |
12~120 |
8~55 |
0.9~70 |
30~275 |
15~100 |
|
R SERIES |
R2~R17 |
8~102 |
8~38 |
0.4~75 |
38~229 |
19~76 |
Zhuzhou Goode Industry Co., Ltd, located in Zhuzhou city, China, which is famous for its abundant tungsten reserves in the worldwide, is a leading manufacturer and supplier of tungsten carbides, tungsten & tungsten alloys, molybdenum and customized precision-machining components by means of cooperation with various cutting-edge factories in these lines with near 20 years working experience. Take "GOODE CARBIDE" as trademark
With its strong production capability, as well as tight coopeation relationship with the top brother factories by share holding investment, Goode Carbide is aiming to provide customers with better quality products, better sales service and more competitive price in one-shop purchase, who is mainly composited with four business departments.
Tungsten carbide business department, which is professional in tungsten carbide products including carbide rods, strips, plates, STB bars, carbide inserts and shims, brazed tips, cutting tools, balls and seats, saw tips, carbide burrs, drawing dies, nibs, cold heading dies, rolls, agriculture wear parts, drill tips, mining bits and tools, carbide disc, circular knives, customized parts and precision-grinding parts etc.
2)Tungsten & Tungsten heavy alloy business department, it is experting in producing tungsten wire, tungsten electrode, tungsten inserts for balancing weights or counterweights, bucking bars, heavy-blocks, rods, bars, balls, cubes, fishing weights and beads, tailored parts and precision-machined parts upon customers' requirement.
3)Molybdenum business department, it is specializing in production of molybdenum parts such as molybdenum wire, rods, blocks, crucibles, electrodes, customized parts and precision-machining ones etc.
4)Exporting business department, not only we have the professional engineering teams for different lines of products to ensure good quality and delivery time for customers, aslo an professonal international sales team to deal with technical problems, take care customers' orders and provide better than expected service.
Taking the principle as "customer first, quality is our life", Goode Carbide has recognized good reputation among customers from USA, Japan, Germany, Isreal, Poland, Switzerland, Italy, Thailand etc so far, and we do hope could cooperate with more customers from the worldwide to benefit each other and grow up together.
