| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Casting Method: |
Centrifugal Cast |
| Barrel Hardness: |
65-95hsd |
| Core Hardness: |
32-45hsd |
| Weight: |
1-50tons |
| Type: |
Steel Rolling Equipment |
| Certification: |
ISO |
Product Description

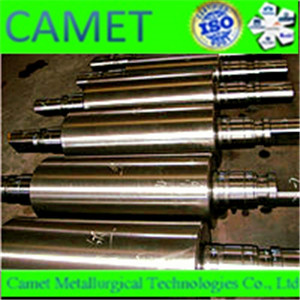

Centrifugal Casting High Cr cast iron rolls for hot rolling mill
Properties
Thanks to its high content of M7C3 type carbide in the range of 20-30% and discontinuous network distribution of carbide, the roll offers a high wear-resistance performance. The matrix consist of tempered martensitic and sorbite with finely-dispersed secondary carbides (M7C3, M23C6 and M3C types), increasing therefore the wear-resistance of roll, the Cr2O3 enriched oxide film on the roll surfaces is highly resistant to oxidization and plastic strain, making the roll extremely suitable for steel hot rolling process.
Chemical Analysis
Grades | HSC | C | Si | Mn | Ni | Cr | Mo |
| HCrI | 60~75 | 2.3/3.3 | 0.3/1.0 | 0.5/1.2 | 0.7/1.7 | 12.0/15.0 | 0.7/1.5 |
| HCrII | 65~80 | 2.3/3.3 | 0.3/1.0 | 0.5/1.2 | 0.7/1.7 | 15.0/18.0 | 0.7/1.5 |
| HCrIII | 75~90 | 2.3/3.3 | 0.3/1.0 | 0.5/1.2 | 0.7/1.7 | 18.0/22.0 | 1.5/3.0 |
Mechanical properties
properties | Barrel | Nick/corel - grey cast iron | Nick/corel - SG cast iron |
| Tensile strength (N/mm2) | 850 | 200 | 400 |
| Bending strength (N/mm2) | 1300 | 350 | 835 |
Microstructure
HCrI: bainite + martensite + carbide
HCrII: tempered martensite + eutectic carbide + small percentage secondary carbide
HCrIII: tempered martensite + eutectic carbide + small percentage secondary carbide
Application
Work rolls for roughing stands and front finishing stands of hot strip mill, work rolls for wide and medium plate mill
