| Prod Model: |
HZF-804 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Date: |
15-30 Days |
| Port: |
Qingdao |
| MOQ: |
1000PCS |
| Color: |
Silver |
| Process: |
Forming Process |
| Industry: |
Metal Stamping Parts |
Product Description
Key Specifications/Special Features:

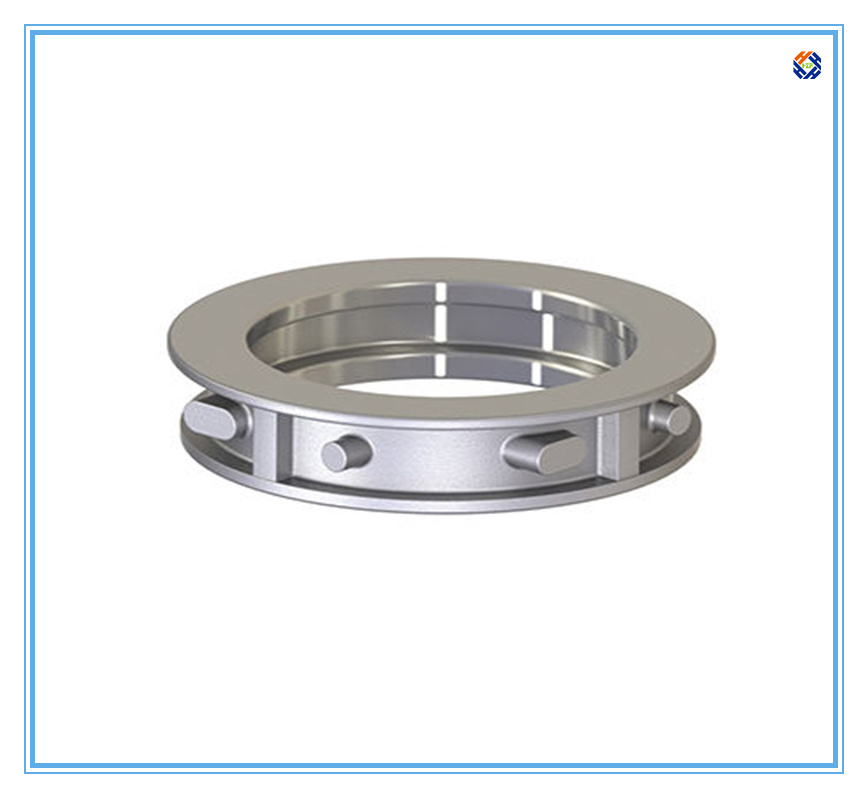

Name | Centrifugal Casting Stator Steel |
| Process | Investment casting;cnc machining |
| Materials | cast iron, ductile cast iron, carbon steel, steel alloy, stainless steel, brass, aluminum and zinc alloy |
| Weight | 0.03-20000kgs |
| Usage: | metallurgy, automobile, aero, chemical, ship hardware and other engineering industry |
|
|
|
|
Investment casting process describing:
We offer customers two types of investment cast processes
They are the shell process and the water glass process
The shell process is used to cast complex high-quality parts with requirements of a very good surface finish and close dimensional tolerances
The water glass process is typical of the process in the early stages of investment castings
It generally is capable of much larger castings than the shell process, but does not have as good of surface finish or tolerances
The water glass process provides parts that have better surface finish and dimensional tolerances than sand castings
A wide range of alloys is available for both processes
They include carbon steels, low alloy steels, stainless steels, tool steels and copper based alloys
Other material may be available upon request
Shell investment cast parts can range from a weight of just a few ounces to approximately 50 pounds
If you are concerned with precision in very small parts, we are especially proficient at very fine detail work including teeth and serrations
Water glass castings may range in weight from several ounces to approximately 175 pounds
First article layouts and spectrometer material certifications are provided with all first article samples
A variety of secondary operations can be performed on both types of investment castings
They include heat treatment, machining, plating, painting, polishing and buffing, assembly services and even custom packaging
Qingdao Haozhifeng Machinery Co., Ltd is a professionally managed hardware company with more than10 years experience in exporting business. It has five Branches which specializes in Casting parts, Auto parts, Forging parts, Stamping parts, and Machining parts. The company owns two factories besides of 100 close cooperated subcontractors. We have the capability to ship up to 80 20FT containers per month to Europe and the United States.
ISO9001, achieved in 2008, ensures that orders are carefully and expertly handled by our team of graduate engineers who understand the importance of timetable, the quality of the goods and the quality of the packing.
Our administration department is very efficient so from the time you order until the time you receive the goods we monitor the order progress and give our customers regular feedback.
You can order the complete range and get one stop service from us, as we have an advanced warehouse storage system.
Choosing Qingdao Haozhifeng as your supplier will be a good choice for you just as it is for our many exisiting international customers
