Prod Model: |
M&W pump |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Working Pressure: |
Low Pressure Pump |
Position Of Pump Shaft: |
Horizontal Pump |
Impeller Number: |
Single-Stage Pump |
Influent Type Of Impeller: |
Double-Suction Pump |
Product Description

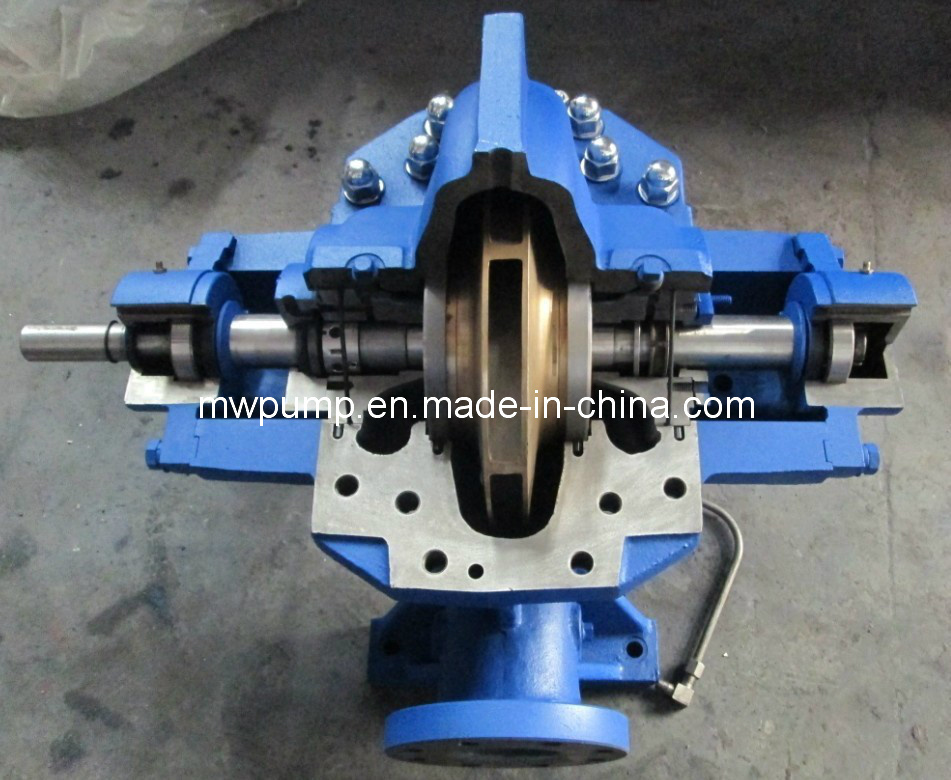

specification of the centrifugal water pump XS100-310 1450rpm
Technical information of the pump
1.Type XS pumps work stably with less noise and vibration and can work at a lifting speed due to short support at both sides, thus they can be widely used.
2.The pipelines arrangement of type XS pump looks simple and beautiful due to inlet and outlet at a same center line.
3.The same rotor of type XS pumps can be operated at reverse direction to avoid damage to the pumps water hammer.
4.Unique design of type XS pumps working at high temperature using middle support to fasten the pump casing and using cooling seals oil lubrication bearing then pump suitable for working at 200 centigrade especially for supplying heated water to pipe net system.
5.Type XS pump casting parts can be vertically or horizontally mounted according to different working condition, with mechanical seals or packing seals.
6.Type XS pumps look beautiful with visible lines adopting industrially designing.
Apply in many field,such as the wast water system,oil field and so on
Type |
Capacity |
Head |
Speed |
Shaft
power |
Motor power |
EFF |
NPSH |
The structural
form |
(m3/h) |
(l/s) |
(m) |
(r/min) |
(kw) |
(kw) |
(%) |
(m) |
80-370 |
|
67
111.6
133.2 |
18.6
31
37 |
42.5
38
34 |
1450 |
11.7
15.3
17.1 |
22 |
66
75
72 |
1.8
2
4 |
I structure drawing I |
A |
63.4
104.4
126.7 |
17.6
29
35.2 |
36.5
33
27 |
9.5
13
13.5 |
15 |
66
72
69 |
1.8
1.9
3.1 |
B |
57.6
96.5
115.6 |
16
26.8
32.7 |
30
26.5
22 |
7.1
9.9
10.6 |
15 |
66
70
66 |
1.8
1.9
3 |
C |
52.2
87.1
104.4 |
14.5
24.2
29 |
25
21.5
18 |
5.6
7.6
8.2 |
11 |
63
67
62 |
1.8
1.9
2 |
100-250 |
J |
90.7
151.2
198 |
25.2
42
55 |
22
18.5
14.5 |
1450 |
7
9.1
10 |
11 |
77
83
78 |
2.3
2.4
3.2 |
JA |
79.2
133.2
162 |
22
37
45 |
18.7
15.8
14 |
5.5
7
7.7 |
11 |
73
81
80 |
2.3
2.4
2.8 |
JB |
73.7
122.4
147.5 |
20.5
34
41 |
16
13.5
12 |
4.4
5.6
6.1 |
7.5 |
72
79
78 |
2.3
2.4
2.6 |
JC |
69.5
118.8
139 |
19.3
33
38.6 |
13.5
11
10 |
3.5
4.5
4.9 |
7.5 |
72
77.5
76 |
2.3
2.4
2.6 |
|
205.2
295.2
378 |
57
82
105 |
85
74
62 |
2900 |
60.8
71.6
80.7 |
90 |
78
83
79 |
5.8
7.3
11 |
A |
180
277.2
360 |
50
77
100 |
74
63
49 |
47.7
58.3
61.5 |
75 |
76
81.5
78 |
5.8
7.5
11.2 |
B |
198
252
324 |
55
70
90 |
60
53
44 |
42.5
46
51 |
55 |
76
79
76 |
6.2
7.6
11.5 |
C |
201.6
241.2
306 |
56
67
85 |
48
43
35 |
34.6
36.2
39.4 |
45 |
76
78
74 |
6.7
8.2
11 |
100-310 |
J |
105.8
176.4
216 |
29.4
49
60 |
36.3
31.2
26.8 |
1450 |
14.3
18.7
20.4 |
22 |
73
80
77 |
1.5
2.6
4.3 |
JA |
108
158.4
207 |
30
44
57.5 |
30.4
27
22.5 |
12
14.7
16.6 |
18.5 |
74
79
76 |
1.5
2.1
2.8 |
JB |
97.2
144
180 |
27
40
50 |
26
22.5
19.5 |
9.3
11.1
12.5 |
15 |
74
79
76 |
1.5
1.9
3 |
JC |
82.8
133.2
162 |
23
37
45 |
22
18.5
16.1 |
6.7
8.4
9.3 |
11 |
74
79
76 |
1.5
1.7
2.8 |
