North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
As Per The Drawing:
as Per The Clients
Casting Method:
Sand Casting
Casting Form Material:
Metal
Casting Metal:
Nonferrous Alloys
Casting Form Usage Count:
Permanent
Product Description

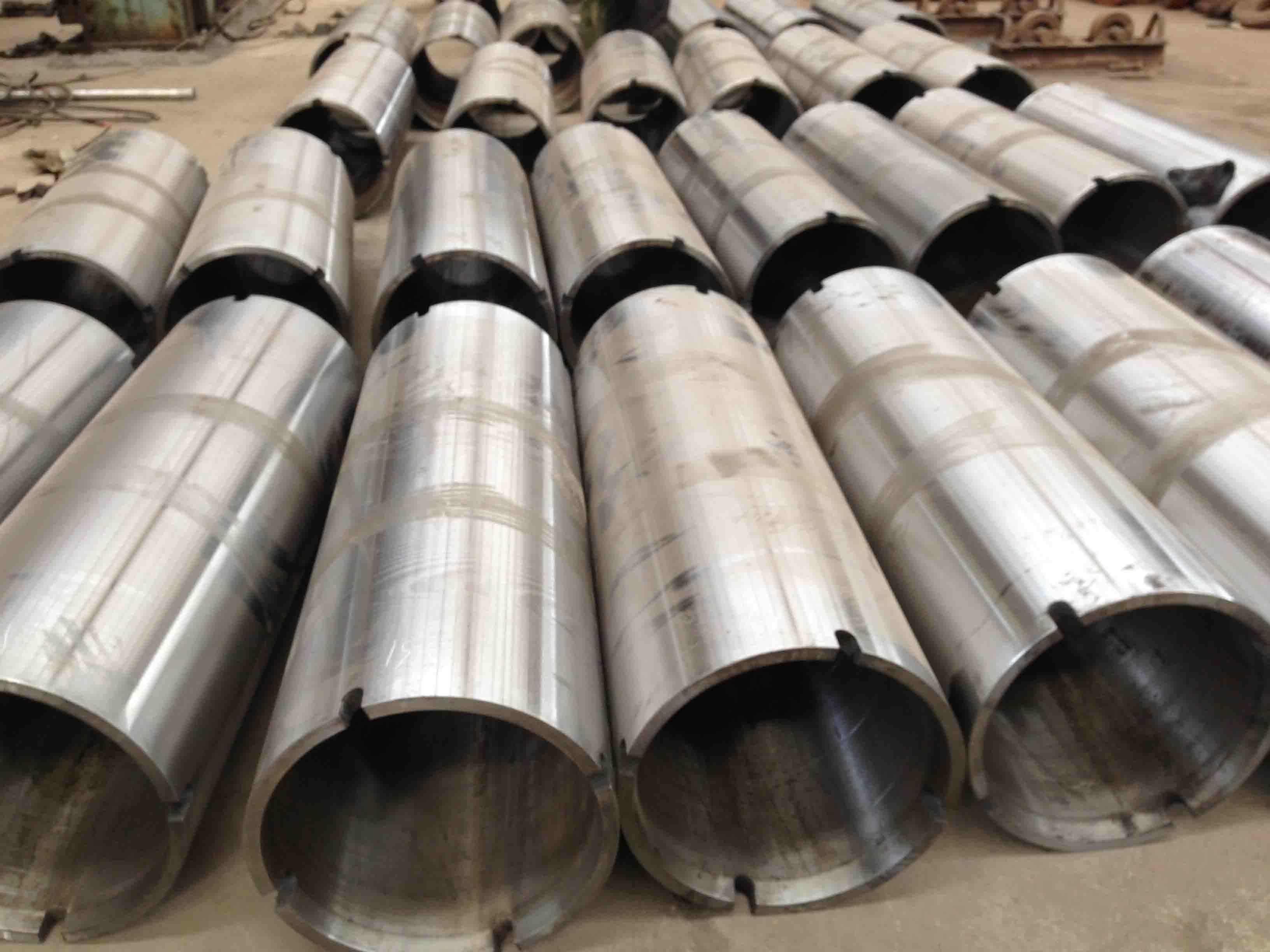

We are professional centrifugally cast Cylinder sleeves, centrifugal casting Cylinder sleeves manufacturer from china
Original quality centrifugally cast Cylinder liners with precise machining High profile plateau Honing and Cylindrical Grinding to match geometrical parameters Manufactured with BS4K6 material standard with chromium and nickel elements Stringent Material and microstructure analysis of each batch 100% dimensional inspection in process and finished components Random inspection of honing angle and structure and surface roughness Random periodic tests on profiles, tensile strength and crack detection 25 years of manufacturing experience and expertise with one roof manufacturing outlet Wide range up to 1500 models suitable for worldwide cars, trucks, tractors and industrial engines. Production capacity of 100000 pcs per month
a. We adopt the advanced smelting and casting technology to guarantee the reliability, accuracy and homogeny of the chemical components of materials. It makes sure the mechanical property of steel sleeve when adopted the advanced heating processing technology. Machining uses the special steel sleeve process tools and reasonable process technology to make sure the coaxiality, cylindricity, symmetry and dynamic balance of the steel sleeve. Specific tolerance and form and location tolerance are strictly controlled over the scope of drawing requirements.
Manufacturing technique of sleeve: molten steel → centrifugal casting → molding workblank → normalizing → temper →rough finish hardening and tempering → finish machining inner hole →process the end face , conical and excircle inspect based on inner hole → strike trademark → issue the certificate → pack wrap b. Temperature resistance of steel sleeve: MAX 540°C c. The steel sleeve proceeds the balance test on the premise of satisfying the drawing, the value is not more than15 g. d. The form and location tolerance are carried out according to the drawing. e. The hardening and tempering of cast sleeve: hb240~280, tempering technology: water quenching and oil cooling, well type hardening and tempering Chemical components:
C
Si
Mn
S
P
Ni
Cr
Mo
0.3-0.4
0.4-0.6
0.6-0.8
0.04
0.04
1.0-1.5
0.6-0.9
0.15-0.25
0.2-0.6
0.5-0.6
0.8-0.9
0.03
0.03
0.30
0.35
0.20
Jiangsu Liangyi Co.,Limited is one professonal special alloy material supplier from China,
Since establised in 1997, our products has been exported to many countries, such as American, European countries, Asian countries, and so on.Our products are widely used in petroleum and chemical industry, power generation, shipbuilding, heavy machinery, Oil&Gas applications:Christmas trees, wellhead components, spools, , riser applications, pressure vessel, and so on.
We own one workshop of more than 8000 square meters, with a vacuum melting, electroslag remelting, forging,Casting,heat treatment, machining, quality inspecting machines and a full-line of production system.
Our company mainly produces materials in:Carbon&alloy steel, Tool&Die Steel,Stainless steel, Duplex Stainless Steel, Nickel alloy, Super Alloy,Cobalt Based alloy,Heat Resistant steel,Invar alloy ,low Expansion Alloy,Soft Magnetic Alloy and so on
We could produce these material in Forging parts,Forged Rings,Rolled Rings,Bars,flanges, Casting Parts,Pipe Fittings,seamless pipe,Weled Pipes,Plates,Sheets,Strips,Coils Wires,spring ,Fasteners,Machining Parts, and so on
Following is the steel grade that we could do
