Ceramics Machine Walking Beam
| Price: |
US $ 1600-2000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
CSM WB0002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
4~18t |
| Applicable Devices: |
Brick Machine, Ceramic Machine etc. |
| Application: |
Building Material Industry etc |
| Customizable Or Not: |
Yes |
Product Description

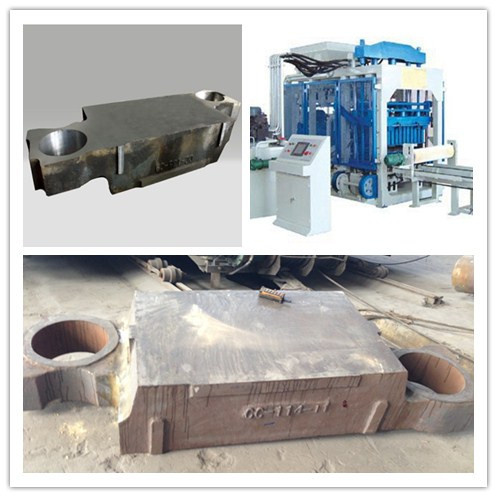

Ceramics machine walking ramProduct introduction Press machine is used for forming ceramic tiles, bricks. The total weight of ceramic/brick press machine is 35T~185T. Nominal press power of press machine ranges from 13MN~78MN.Bearing the output force from hydraulic cylinder plunger and the counter-force from anvil compression work piece while running, the walking beam is the key stressed member for forging press and ceramics machine. Meanwhile, its rigidity will directly affect the forming precision of forging press. Therefore, how to make the rigidity of walking beam reach designed requirement is the key technology for the design of large-scale forging presses.Our main material for the Ceramics machine walking ram is similar to followings:| Standard Specifications for Cast Steel |
| Country | Standard | Grade |
| United Kingdom | BS 3100 | A2 |
| USA | AISI /SAE | UNS:J04000 |
| Germany | DIN 1681 | GS-60 |
| Japan | JIS G5101 | SC480 |
| International | ISO 3755 | 270-480 |

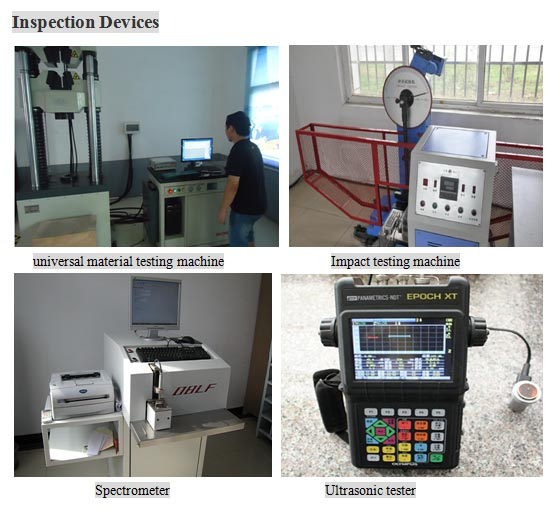

AdvantageThe technical staffs at Shanghai Special Metal Co., Ltd develop the topology optimization analysis into the production of walking beam to ultimately obtain the best design.Shanghai Special Metal Co., Ltd possesses advanced fault detector, universal strength testing machine and other high-tech inspection equipments to guarantee the high quality walking beam. Production Process 1. Wooden pattern Production 2. Molding 3. Pouring 4. First cleaning 5. Heat treatment - grinding (inspection)6. Rough machining (inspection)-finishing machining (inspection)7. Packing-deliveringQuality assurance The fabrication route is governed by the provisions of the implemented Quality System ISO 9001: 2000. The standard documentation ensures the full traceability of every process step: Manufacturer test certificates according to DIN EN 10.204 § 3.1 including chemical composition, mechanical properties and non-destructive examination; Dimensional check supported with a "as-built" sketch; Record of the heat treatment chart;
China Special Metal Group Limited (CSM), a supplier of metal material & machinery products, devotes to offer high quality of castings, high-precision machining products, welded fabrications and forgings to valued customers from all over the world. Meanwhile, we offer the design engineering and turnkey project as well.
Our group owns four mainly manufacturing bases. Casting bases in Xinxiang and Yiyang; The welding fabrication base in Wuxi; Special alloy base in Xi'an. Our Shanghai base is the commercial and engineering center. We have our own ISO 9001 certificate.
We have 2 sets of 30 Ton alkaline electric arc furnace; 8sets of transferring ladle with capacity of 35ton, 50tons, and 75tons; 2 sets of baked charter; 4 sets of large heat treatment furnace and the supporting facilities including oxygen generation station, air compression plant, natural gas station, CO station and 22 sets of lifting equipment machines. The lifting capacity reaches 200tons. We own 5 sets of large-scale molding equipment. Meanwhile, we also have the GS1000 vacuum direct reading spectrometer made by OBLF and other inspection equipments like carbon sulfide high-speed analyzer, microcomputer three elements of high-speed analyzer, digital ultrasonic flaw detector, multipurpose magnetic powder flaw detector such as chemical equipment, except that we also own leveraged universal strength tester, SAC thumping machine. Simulating the casting process by the CAE software to ensures the new quality level castings. All the castings are process by arc gouging, carbon dioxide gas gouging, shot-blasted in order to get the surface quality.
Our products include Metallurgical equipment, Cement & Mining machinery. The castings singe weight is up to 120MT. The main products are casting ladles, slag pot, ingot moulds, mill housings, chucks, girth gear & wheel for cement and mining machinery, grinding table and grinding roller for mills, case and covers for pumps, body and beams for all kinds of machine.
