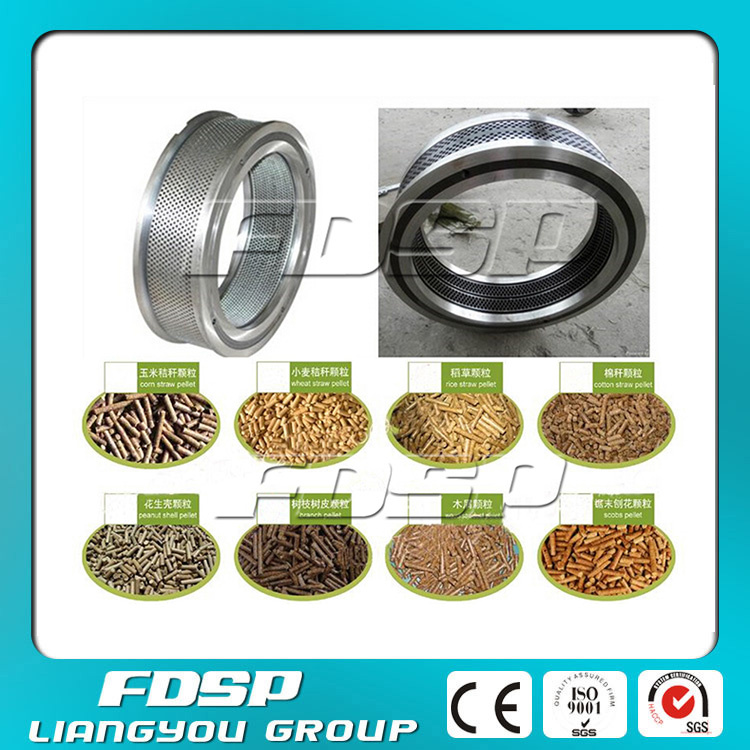

China Factory Made Ring Die for Pellet Press Machine

Prod Model:	Customized
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition:	New
Compression Ratio:	Customized
Hole Diameter:	1.5mm-14mm
Hardness:	HRC 52-56
Die Hole Processing:	Germany Gun Drilling
Ring Die Compatible Type:	for All Main Brands Pellet Mill
Type Of Ring Dies:	as Per The Drawing of The Clients
Processing Object:	Metal
Molding Style:	Forging
Material:	Stainless Steel, Alloy Steel, Carbon Steel

Product Description

China Factory Made Ring Die for pellet press machine


Introduction of  Ring die
Ring die is very important part of ring die pellet machine in the whole manufacturing process. The quality of ring die not only directly relates with the quality and output of pellets, but also the running state of equipment and maintenance cost.

Applicable for Biomass pellet machine: wood pellet mill, sawdust pellet mill, grass pellet mill, straw pellet mill, crop stalk pellet machine, alfalfa pellet mill etc.
Applicable for Fertilizer pellet machine, animal feed pellet machine too.



Specification customized:
We can supply ring die for all the main brands of pellet machine such as ANDRITZ, CPM, IEMME, JKAP, SOGEM, SPROUT(UMT), MATADOR(UMT), MABRIK,BUEHLER, PALADIN, PTN, PROMILL,YEMMAK etc.

Custom dimensions and drawings of ring die are welcome!



Advantages of FDSP ring dies:

20 years of experience in ring die production

High chromium high carbon content steels

Extremely precise manufacture

Advanced imported equipment

High hardness after vacuum heat treatment

Rapid delivery times

Test and control before shipment

Long service time




Main Manufacturing Process of Ring die
1.Forging and Lathing:
Extremely precise forging and lathing assure high dimensional accuracy, bright and clean surface.

2.Die Hole processing
Advanced Germany gun drill equipment, tools and drilling hole software are used in die hole processing:

3.Vacuum heat treatment
Ring die surface: no oxidation reaction;
Die hole inner surface: original smoothness;
High stability, High hardness; High tenacity



Compression Ratio of Ring Die
Generally speaking, the higher the compression ratio, the denser the finished pellets. But it does not mean that the higher the compression ratio, the better the pellet quality.
Compression ratio should be calculated based on raw material for making pellets and type of feed.
With many years pellet die manufacturing and research experience of FDSP GROUP, we provide some general data of ring die's compression ratio for your reference:

Buyers can customize dies with different hole diameter and compression ratio, according to different situation and requirement.

	Hole Diameter(mm)	Compression Ratio
Ring die for animal feed pellet machine
Poultry&livestock feed	2.5 - 4	1:4-1:11
Fish feed	2.0 - 2.5	1:12-1:14
Shrimp feed	0.4 - 1.8	1:18-1:25
Ring die for biomass pellet machine
	6.0 - 8.0	1:5-1:8

The most common structure of die hole are straight hole; release stepped hole; external conical hole and internal conical hole, etc. Different die holes structure are suitable for different raw material and feed formula for making pellets.



WARM TIPS
How to maintain and inspect the ring die:
1.   The rollers should be correctly adjusted, make sure the hole inlets are not damaged by contact with the rollers or as a result of tramp metal.
2.   Material should be evenly distributed across the whole working area
3.   Make sure that all holes work uniformly, opening the clogged holes if necessary.
4.   When changing dies, carefully inspect the condition of the die seating surfaces and fixing systems including collar, clamp or wear ring.



About us
FDSP is specialized in the production of ring die and rollers for all the main brands of pellet mills, with more than 20 year of manufacturing experience and professional advanced technical team, we insist on providing high quality and strong durable products to our customers.



FAQ:
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 20 years of experience in this industry.

2. Q: Do you have some foreign customers using your pellet mill die?
A: Yes, we have.Our company has established business relationships with customers in Korea, South Africa, Russia, Thailand, Taiwan, Philippines, Malaysia, Australia, Egypt, Syria, Nigeria, Ethiopia, India, Bangladesh, Pakistan, Iran etc.

3. Q: How long can your ring die be used?
 A: Our ring die has long service life. The service life time is about 1000-1200 hours.

4. Q: What are the factors affecting the lifespan of a die?
A: There are many factors affect the service life of a die:
     The composition of raw material
     The characteristics of raw material
     The moisture and fat content of material before pelletizing
     The particle size of the mash
     The heat conditioning of the mash
     The pellet mill controls
      Many others

5. Q: How to buy your pellet mill spare parts?
A: Just tell us the brand and model of your pellet machine, we will make the precise pellet mill spare parts for you.
