| Prod Model: |
WF-JF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Shandong(Mainland) |
| Standard Or Nonstandard: |
Nonstandard |
| Castig Type: |
Silica Sol Casting, Precision Casting |
| Qualiy Control: |
Professional QC Stuff, Spectrograph |
| Unique: |
China Golden Supplier |
| Quality Control: |
Qingdao Port |
| Brand Name: |
Customized |
| Delivery: |
Within 20 Days After Receiving Last Confirm Info. |
| Advantages: |
Delivery on Time, According to The Demand for Mat |
| Supply: |
Drawing Design |
| Type: |
Clay Dry Sand |
| Application: |
Fitness Equipment |
Product Description

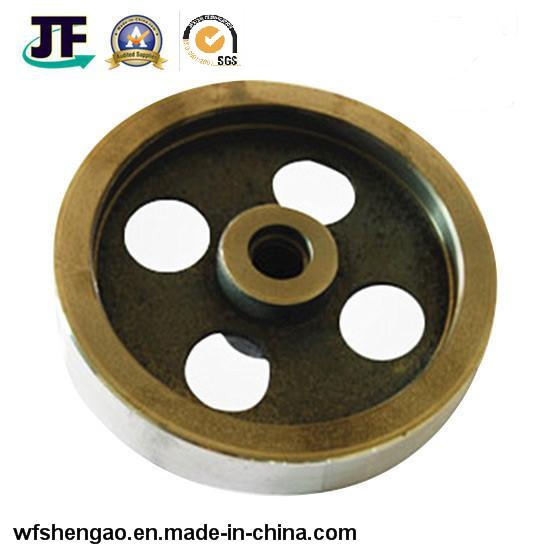

China Foundry Custom Precisely HT300 Flywheel for Spin Bike
Specifications
1) Material: ductile iron/ grey iron
2) Weight: 0.1KG-300KG
3) Make products exactly according to your samples or drawings
4) OEM service is available
5) Very rigorous quality control
6) Customized products: different types
7) Process: sand casting
8) Surface treatment: painting, plating,polishing,power coating etc.
9) Cast iron flywheel
1. Ductile Iron Castings:
Molding process: Resin sand/Green Sand
Material: EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2
Molding: Hand molding/Molding machine Z145/146/148/Molding line.
Possible Heat Treatment: Annealing
Industry involved: Municipal Construction / Fluid
/Automotive
Part unit weight range: 0.5kg-2000kgs
Max/Min wall thickness requirements: 4mm-250mm
Manufacturer Certification: ISO9001(2000)/ TS16949
2. Grey iron castings:
1) molding process: Green sand/Resin sand
2) Material: EN-GJL-150/DIN 1691 GG-15, EN-GJL-200/DIN 1691-GG20, EN-GJL-250/DIN1691-GG25
, EN-GJL-300/DIN1691-GG30
3) Molding: Hand molding/ Molding machine Z145/146/148/Molding line.
4) Industry involved: Municipal industry/Construction Fluid industry/Automotive industry
5) Part unit weight range: 0.5kg-2000kgs
6) Max/Min wall thickness requirements: 4mm
7) Manufacturer Certification: ISO9001(2000)/ TS16949
Production capacity:
1. Casting classification: Sand casting; Precision casting; Vacuum process casting etc.
2. Gray iron, ductile iron, stainless steel, carbon steel, alloy steel, etc.
3. Adoption standard: BS, DIN, ASTM GB etc.
4. Weight range: 0.5~5000kg.
5. Producing capacity: 2, 000 tons per month.
6. Main application: Metallurgy; Machinery; Plastics; Rubber; Pharmaceutical;
Textiles; Mining; Paper-making; Packaging.
7. Main equipments: Furnaces; Heat treatment furnaces; Direct-reading spectrometer; Shot -blasting equipments, etc.
8. Surface treatment: Polishing, plating, shot blasting, heat treatment, etc
9. Inspection and test: Foundry in home, third part inspection, Material report, UT, MT, RT, and PT, etc...
10. Packing and shipping: Stand export packing; 20day make modul & sample; Delivery time against your quantity.
11. Casting service: Your logo, character, trade name, number etc can be casted on the surface clearly.
How to order:
* You send us drawing or sample
* We carry through project assessment
* We give you a design
* You think the design is ok
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
Packgage:
Suitable for sea and air transportation or as required
| Item | Description | Material | Technical Process |
| 1 | Ductile iron
castings | ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03;
DIN-GGG40,GGG50,GGG60,GGG70;
JIS-FCD40,FCD50,FCD60,FCD70;
BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2;
NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2; | Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 2 | Grey iron
castings | ASTM A48-No.20,25,30,35,40,45,50;
ASTM A126-Class A, Class B, Class C;
DIN-GG10,GG15,GG20,GG25,GG30,GG35;
JIS-FC10,FC15,FC20,FC25,FC30,FC35;
BS-Grade 150,180,220,260,300,350;
NF-FGL150,FGL200,FGL250,FGL300,FGL350; | Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 3 | Carbon steel
castings | ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC;
ASTM-415-205, 450-240, 485-275, 80-40;
DIN- GS-C25(1.0619), GS-38(1.0416),
GS-45(1.0446), GS-52(1.0552), GS-60(1.0558);
JIS-SC410, SC450, SC480, SCC5;
BS-A1, A2, A5;
NF-GE230, GE280, GE320, GE370 | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 4 | Stainless steel
castings | ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304;
DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001)
G-X20Cr14(1.4027), 1.4408;
JIS-SCS13, SCS 1, SCS 2, SCS 14A;
BS-304C15, 410C21, 420C29, 316, 304;
NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting |
| 5 | Alloy steel
castings | DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120);
GS-37MnSi5(1.5122), GS-34CrMo4(1.7220);
JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3;
ASTM-LCC
UNS-J02505, J13048
NF-G20M6, G35CrMo4 | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting |
Q: Why choose Shengao products?
A: We shengao have our own plant-- Weifang Shengao machinery Co., Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
Q: Do you provide customized flywheel?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.
If there's anything we can help, please feel free to contact with us.
