| Prod Model: |
MQZ, MG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Warranty: |
12 Months |
| Certificate: |
ISO CE |
| Feeding Size: |
<20, 25mm |
| Output Size: |
0.074-0.4mm |
| Installation: |
Engineers Guided |
| After-Sale Service: |
We Offer |
Product Description

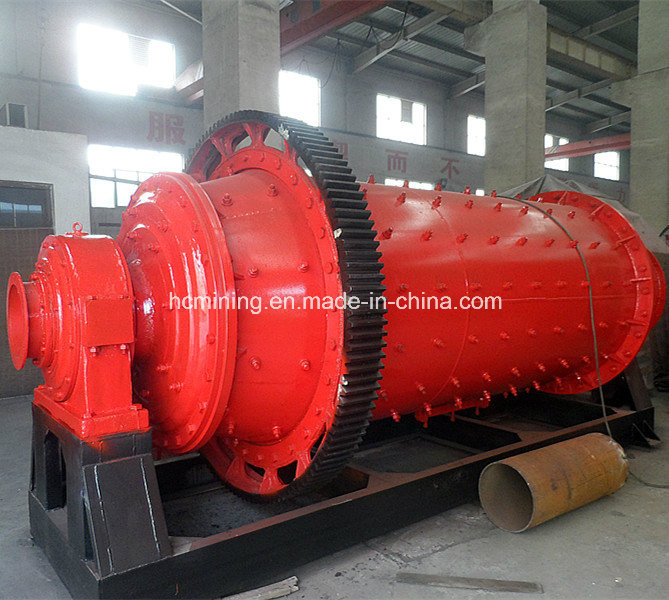

Ball Mill
The machine is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.
This machine is a skeleton pattern ball mill with horizontal cylindrical turning gear, driving by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to RAM hard and grind material. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.
Dry or wet ball mill will be optional according to material and ore-discharging mode.
Gongyi Hengchang Metallurgical Building Material Equipments Plant is professional manufacturer of ball mill, and complete beneficiation plant for mineral ore. We provide flow chart free design service, can design 50-2000 ton/day turnkey project for mineral ore beneficiation.
Gongyi Hengchang Metallurgical Building Material Equipments plant is a professional manufacturer of complete set mineral beneficiation equipments, Briquette equipments, coal preparation equipments, ball press equipments, products widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer, gas industry etc.
In the last two decades, we always persist on the philosophy of "scientific and technological innovation, quality first, users first", and cooperated with a number of research institutes to form collaborative units, like Anshan Iron and Steel Research Institute, Nanning of Guangxi Nonferrous Metals Design and Research Institute, Henan Polytechnic University, invite and employ many senior engineers specialized in different fields to the factory for technical designing and supporting.
Science and technology as guide, constantly develop new products, improve product quality and perfect after-sales service, our plant successfully applied ISO9001: 2008 quality certificate and manage to design 10 to 5, 000 t/d mineral beneficiation equipment series production lines, 5 to 500, 000 t/d industrial briquette production line, our floatation machine is successfully applied to Zhong Ping Energy Chemical Group; Ball press series machine can briquette minerals powder, coal powder, plaster powder and other materials into a balls/ briquettes, which can be directly applied to the applications and smelting.
Our plant have been awarded "Enterprise of Observing Contracts and Keeping Promise enterprise" prize by Zhengzhou industrial and commercial bureau in consecutive years, "good faith private enterprise" prize by both Henan Province and Zhengzhou City, top 30 of key enterprises of the Gongyi government and bureau, products are welcomed by more than 20 provinces, municipalities and autonomous regions in China, and exported to South America, South Asia, Africa and other regions, products quality, technical supporting and after sale service are highly praised by users both home and abroad.
We welcome friends all over the world to visit our plant, persist on the mutual benefits and developments!
