| Prod Model: |
bevel gear |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heat Treatment: |
Nitriding, Carburization |
| Technology Of Machining: |
Hobbing, Shaving, Grinding |
| Precision Grade: |
3-7 |
| Diameter: |
0~1200mm |
| Characteris: |

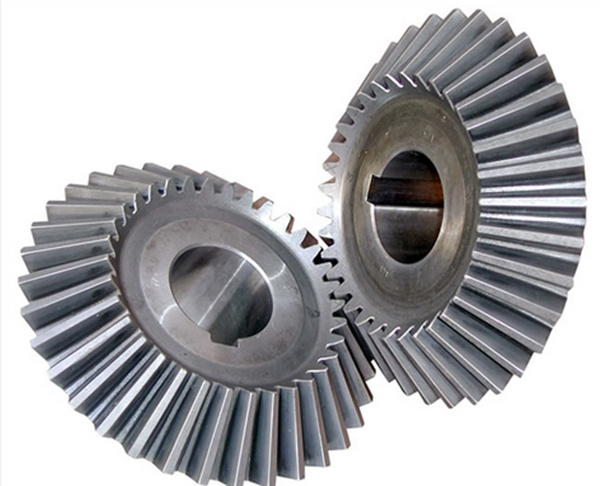

China High Quality Material Precision Bevel Gear |
| Advantage: |
Bevel Gear for Paper Shredder |
| Type: |
Circular Gear |
| Manufacturing Method: |
Forging |
| Toothed Portion Shape: |
Bevel, Helical, Miter |
Product Description
Our gear can be standard as per European or American standard or special as per your drawing or sample.
Features:
Material: Carbon steel such as C45, 20CrMnTi, 40Cr, 42CrMo or stainless steel or copper or nylon and so on
Heat Treatment: Hardening and Tempering, High Frequency Quenching, Carburizing Quenching and so on.
Standard: European or American standard
OEM service: Make based on your special sample or drawing and meet your need for high precision on teeth of gear
Good quality with reasonable price, timely delivery and great customer service.
Packing:
1. Standard export packing: Carton or wooden case
2. Shipping: By sea or as request
Our factory is equiped with P100 gear testing center by KlingeInberg and three coordinate measuring machine by Hexagon to guarantee the precision and the quality of the gear, we can roduce high precise gear with diameter highest at 1250mm, modulus 37m, and precision grade 3 to 7.
|
Material |
Alloy Steel |
Casting Steel |
Gray cast iron |
Ductile Iron |
Weldment |
|
20CrMnTi |
20CrMnTi |
HT200 |
QT400-18 |
20CrMnTi |
|
20CrMnMo |
20CrMnMo |
HT250 |
QT400-15 |
20CrMnMo |
|
20 CrMo |
20 CrMo |
|
|
20 CrMo |
|
35CrMo |
35CrMo |
|
|
35CrMo |
|
42CrMo |
42CrMo |
|
|
42CrMo |
|
20Cr2Ni4A |
20Cr2Ni4A |
|
|
20Cr2Ni4A |
|
20CrNiMo |
20CrNiMo |
|
|
20CrNiMo |
|
20CrNi2Mo |
20CrNi2Mo |
|
|
20CrNi2Mo |
|
40CrNiMo |
40CrNiMo |
|
|
40CrNiMo |
|
18CrNiMo7-6 |
18CrNiMo7-6 |
|
|
18CrNiMo7-6 |
|
17CrNiMo6 |
17CrNiMo6 |
|
|
17CrNiMo6 |
|
34 CrNiMo6 |
34 CrNiMo6 |
|
|
34 CrNiMo6 |
|
18Cr2Ni4WA |
18Cr2Ni4WA |
|
|
18Cr2Ni4WA |
|
18Cr2Ni4WE |
18Cr2Ni4WE |
|
|
18Cr2Ni4WE |
|
45 C |
45 C |
|
|
45 C |
|
40Cr |
40Cr |
|
|
40Cr |
|
38CrMoAl |
38CrMoAl |
|
|
38CrMoAl |
|
16Mn |
16Mn |
|
|
16Mn |
|
16MnCr5 |
16MnCr5 |
|
|
16MnCr5 |
|
GCr15 |
GCr15 |
|
|
GCr15 |
|
Modulus |
1mm-50mm |
|
Accuracy |
DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0 |
|
Standard |
DIN, ISO/GB, AGMA, JIS |
|
Heat treatment |
Quenching and tempering, gear teeth induction quenching, nitriding, carburization |
|
Application |
Wind turbine, locomotive, feeding machinery, metallurgy machinery, mining machinery |
|
Gear shaft length |
2500mm max. |
|
Weight |
15 tons max. |
Smart Equipment Co., Ltd. Has started its own gearbox business since 1995, now Smart Equipment own 2 gearbox production factories, and we attach importance to the research and development of new product. We offer big range of gearboxes, including R/S/K/F gearbox, P planetary gearbox, RV worm gearbox, H B industrial gearbox, customized gearbox etc, with a strong advantage on industrial gearbox and customized gearbox, we follow strict qualitycontrol system from the start to end.
Our mission is to design and offer the reliable solution to your gearbox need, and to promote sustainable and shared development with customers by providing honest, responsible, prompt services.
Technical Center
The technical center of CN GPOWER was established in 2001. In 2006, it was jointly identified by the five ministries of China as national-level enterprise technical center and is the first national-level enterprise technical center in the gear industry.
The technical center includes ship transmission research institution, wind power drive technology research institution, building material drive units research institution, general purpose gearboxes research institution, new products research institution, CAD institution, and the research institutions for machining, heat treatment, weld, assembly and testing, etc...It covers many fields such as ship, building material, metallurgy, wind power, nuclear power, hydropower, thermal power, rubber and plastic, hoisting, coal mine, rail transit, marine engineering, engineering machinery, etc., confiding in its research and development ability that is leading in China and advanced in the world in high-accuracy, case -hardened and heavy-duty gear transmission industry. In addition, it can design products according to GB, ISO, DIN.
