| Prod Model: |
Z146 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Sand Molding Machine |
| Color: |
According to Your Rquirement |
| Warranty: |
3 Years |
| Use: |
Metal Casting |
| Efficiency: |
>99.99% |
| Type: |
Clay Dry Sand |
| Casting Method: |
Hot Metal Ladel |
| Machining: |
Sand Molding Machine |
| Material: |
Iron Steel Aluminum Copper |
Product Description

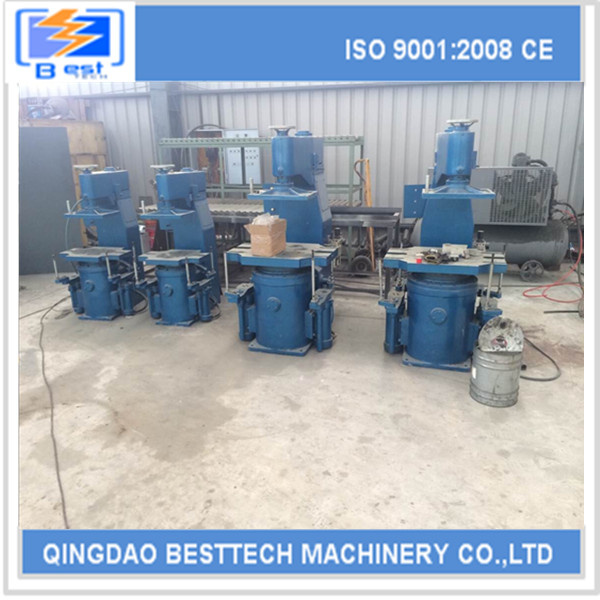

Z146W microseism squeeze molding machine introduction:
it is fully buffered,high-frequency,low amplitude,pneumatic-type molding machine microseism compaction.
it used a buffer spring,pneumatic microseism institutions can reduce the shock impact of the foundation.
all parts of the aircraft fuselage steel,a substantial increase of steel.
the microseism structure with aircraft body table,shock pistons,shock compaction iron piston,cylinder and compaction.
pressure head to arm it in part by the pressure head plate,tumbler beam,the center gear shaft,piston cylinder,such as rack of the tumbler cylinder by the driver at both ends buffer agencies so that a smooth transfer arm rotation.
mode since the aircraft structure,by the connecting rod from cylinder mode axis synochronization,push mode,such as starting composition.
cylinder adopt air pressure control mode to ensure a smooth beginning.
technical parameter:
name | unit | Z146W |
| foundry flacsk max dimension | mm | 620x500x250 |
| worktable dimension | mm | 700x560 |
| jolting load | kgf | 300 |
| compressive stress | kg | 8300 |
| moulding process | mm | 220 |
| compress process | mm | 160 |
| productivity | box/h | 40~60 |
| consumption of free air | m/box | 0.4 |
| outline dimension | mm | 1000x800x1700 |
our service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company
Qingdao Besttech Machinery Co., Ltd. Specializing in the production of dust environmental protection equipment, shot blasting cleaning machine, catenary shot blasting cleaning machine, through type shot blasting cleaning machine, crawler shot blasting cleaning machine, surface (lumen) blasting treatment and improved equipment, resin sand reclamation equipment production line, clay sand production line equipment, molding machine, hot metal ladle, casting Machinery and equipment, environmental protection equipment, steel shot blasting cleaning machine, etc. Is the highest technical content, complete varieties, production, sales of shot blasting machine and casting machinery production base, also is the Beijing Olympic Games the bird's nest, water cube and offshore oil platform main body engineering cooperation unit construction enterprises, is the domestic industry leader.
Qingdao caster ChongJi was founded in 1972, state-owned enterprises (original Qingdao three casting machine) the worker on the basis of the optimum combination to create enterprise, has more than 470 employees, professional and technical personnel 120 people, the factory covers an area of 120 mu, with various types of processing and manufacturing equipment more than 200 Taiwan (sets), has yearly produces mechanical equipment more than 1500 Taiwan (sets) of production capacity, products are exported to the United States, Russia, Ukraine, India, Vietnam, Thailand, Malaysia, Saudi Arabia, Hong Kong and other countries and regions, and took the lead through the ISO9001: 2008 international quality system certification.
