| Prod Model: |
CT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| After Sale Service: |
Whole Using Life |
| Installation: |
Technical Guidance |
| Price: |
Negotiable |
| Type: |
Magnetic Separator |
| Certification: |
CE |
| Warranty: |
1 Year |
| Color: |
Multi Color |
| Customized: |
Customized |
| Condition: |
New |
| Voltage: |
Depend on The Model |
| Weight: |
250kg~14000kg |
Product Description
Our magnetic separator has been sold to all over the world.You can give us your requirement,then we will give you a perfect project.

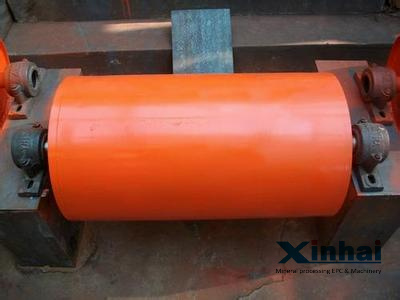

Magnetic Drum—Introduction
A dry magnetic separator for strong magnetic minerals with coarse particles, and it is also called magnetic pulley.Magnetic Drum—Capacity
20-600t/h
Magnetic Drum—Product Improvement
Cylinder could be lined with Xinhai wear- resistant rubber to prolong the service life
Magnetic Drum—Advantages
Large feeding particle size(450~0mm),no classification before feeding.
High strength and high reliability of the mechanical structure guarantee the normal work of the magnetic drum in a variety of harsh environment.
Magnetic Drum—Product Description
Permanent magnetic drum is also called magnetic pulley,apparatus magnetic equipment for magnetite ore, mainly used for pre concentration before fine crushing or grinding to remove the gangue, deads and tailings, and the tailings out rate is about 10%.
Magnetic Drum—Work Principle
The materials are uniformly fed to the belt. When materials go through the permanent magnetic drum, the non-magnetic and low-magnetic particles will leave the belt surface because of the centrifugal force and gravitation. Meanwhile, strong-magnetic particles are absorbed to the belt by magnetic force and then fall into the magnetic trough when the belt leaving the magnetic pulley.
Magnetic Drum—Product Application
1,It is applied in lean iron roughing after the roughing crushing or middling crushingto remove deads, improve grade, and reduce the load of the next procedure.
2,For not fully reductive raw ore of hematite reduction
3,For the ceramic industry to remove iron and improve the quality of ceramic products
4,For other industries needing to remove iron, such as Burning coal, sand casting, refractory material, etc.
| Model | ID
(mm) | Length
(mm) | Belt width
(mm) | Average field strength of cylinder surface(mT) | Allowable torque
(N.m) | Materials
Particle size (mm) | Capacity
(t/h) | Weight
(kg) |
| CT-0404 | 410 | 465 | 400 | 150-160 | 1300 | 10-40 | 20-30 | 250 |
| CT-0505 | 520 | 500 | 400 | 150 | 1300 | 10-40 | 20-40 | 500 |
| CT-0506 | 520 | 600 | 500 | 150 | 2100 | 10-40 | 40-60 | 600 |
| CT-0507 | 520 | 750 | 650 | 150 | 2120 | 10-40 | 60-80 | 700 |
| CT-0707 | 750 | 750 | 650 | >160 | 2860 | 10-60 | 80-100 | 1200 |
| CT-0709 | 750 | 950 | 800 | >160 | 5500 | 10-60 | 100 | 1620 |
| CT-0816 | 800 | 1600 | 1400 | >160 | 9760 | 10-60 | 1OO-150 | 2850 |
| CT-1010 | 1000 | 970 | 800 | 200-210 | 5590 | 10- 100 | 150-200 | 3410 |
| CT-1012 | 1000 | 1170 | 1000 | >200 | 10680 | ≤100 | 200 | 4010 |
| CT-1014 | 1000 | 1400 | 1200 | >200 | 12810 | ≤100 | 200 | 4600 |
| CT-l0l6 | 1000 | 1600 | 1400 | 160-210 | 14920 | 10-100 | 150-200 | 5200 |
| CT-12l0 | 1200 | 970 | 800 | 160-210 | 8380 | 10-100 | 150-200 | 4380 |
| CT-1212 | 1200 | 1170 | 1000 | >160 | 10470 | ≤100 | 200 | 5280 |
| CT-1214 | 1200 | 1400 | 1200 | >160 | 12570 | ≤100 | 200 | 6070 |
| CT-1216 | 1200 | 1600 | 1400 | >160 | 14580 | ≤100 | 200 | 6670 |
| CT-1218 | 1200 | 1800 | 1600 | >160 | 16620 | ≤100 | 200 | 7260 |
| CT-1412 | 1400 | 1200 | 1000 | >160 | 16000 | ≤l20 | 200 | 6000 |
| CT-1414 | 1400 | 1400 | 1200 | >160 | 20000 | ≤l20 | 200 | 7100 |
| CT-1416 | 1400 | 1600 | 1400 | 400 | 25000 | ~400 | 300 | 9800 |
| CT-1518 | 1500 | 1800 | 1600 | ≥450 | 30000 | ~400 | 600 | 14000 |
Founded in 1993, Yantai Xinhai has 20 years experience as a Chinese leader in the mining machinery manufacture and mining EPCM projects service.
With large number of research institutes(machinery research institute, mine design research institute, installation and commissinging department, etc. ) and service engineers, our customers have a tremendous depth of technical resources they can rely on. What is more, 80% equipments for mineral processing have been improved by Xinhai and some technology reaches the international advanced level. Xinhai Mining Machinery Company has become the research & developing base of mining and mineral processing machinery industry in China.
In addition, Xinhai is committed to providing premium EPCM services for customers, which include mineral processing test, mine design, equipment manufacture, installation and commissioning, personnel training and target achievement. There are more than 400 high-performance EPCM projects all over the world which are provided by Xinhai Company.
What you need is what we can do. For an evaluation of your needs, please contact us at any time. Xinhai believes you will be impressed with the experience, the proficiency and the helpful attitude you find at every level within Yantai Xinhai Mining Machinery Company.
