| Prod Model: |
thyh-ic02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CNC Machining Or Not: |
CNC Machining |
| Type: |
Broaching, Drilling, Etching / Chemical Machining |
| Material Capabilities: |
Hardened Metals, Stainless Steel, Steel,Iron |
| Micro Machining Or Not: |
Micro Machining |
| Place Of Origin: |
Qingdao,China |
| Optional Material: |
Stainless Steel, Carbon Steel,Brass, Aluminum etc. |
| Machine: |
CNC Center |
| Surface: |
as Customers' Requirements |
| Inspection: |
100% |
| Min Tolerance: |
+/-0.01mm |
| Casting Method: |
Directional Crystallization |
| Material: |
Stainless Steel |
| Surface Preparation: |
Polishing |
Product Description
High Quality OEM Stainless Steel casting/Lost Wax casting/ Investment casting/Precision Casting
A,Products Description:
Manufacture process: lost wax investment casting(precision casting)
Casting materials: carbon steel, stainless steel or non-ferric alloy
Production Process:Wax Mould-Shell Making-Dewaxing-Smelting&Casting-Shell Off-Blasting-Cutting&Polishing-Acid Washing-CNC Precised Machining
Casting facility:wax injector, electric furnace,heat treatment furnace,cutting head machine, shot-blasting machine, sand-blasting machine.
Machining facility: CNC,NC lathe,ordinary machine tools,linear cutting machine, NC milling machine, polishing machine.
Heat treatment as required: anneal normalizing, quench + temper or solution treatment
Surface protection can be: pickling and passivation, oil anti-rust protection, anti-rust protection without oil, prime paint, epoxy powder coating, galvanization, hot dipped
Unit weight: 1g to 100kg
Casting tolerance per ISO8062 CT7-CT10
Castings appearance inspection per ISO11971 or MSS-SP-55
EN 10204 3.1B Mill cert and dimension report will be provided
Inquiry information: material grade, unit weight, quantity and drawings (CAD/PDF/IGS/STEP), or sample
Experienced inspection team of casting quality conducts the entire quality control procedure from raw material to finished productsAll inspectors are well trained and have rich product knowledge and inspection experiences.
B.Advantage
1. Competitive price with good quality
2. Low MOQ (100pcs is even acceptable in some special conditions)
3. Short lead time (7-15days according to order qty)
4. Customized size and spec /OEM available
C.Package
Suitable for sea and air transportation or as required
| PROCESS | MATERIAL | STANDARD |
SAND
CASTING | Green Sand | Grey Iron, Ductile Iron, Malleable Iron, Stanless Steel, Carbon, Steel, Aluminium, Brass, Bronze | ASTM
BS
JIS
DIN
etc |
| Furan Resin Sand |
| Cold Harden Resin Sand |
INVESTMENT
CASTING | Sodium Silicone (Water galss) | Stainless Steel, Carbon Steel, Special Alloy Steel Bronze, Brass, Aluminum |
| Silica Sol |
| FORGING | Hammer Forging | Stainless Steel, Carbon Steel, Alloy Streel, Brass, Aluminum |
| Die Forging |
| Roll Forging |
| STAMPING MACHINING | STAMPING MACHINING | All metal material |

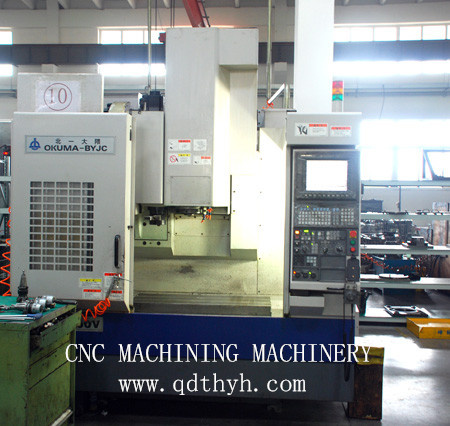

Our workshop of casting factory and CNC machining factory:

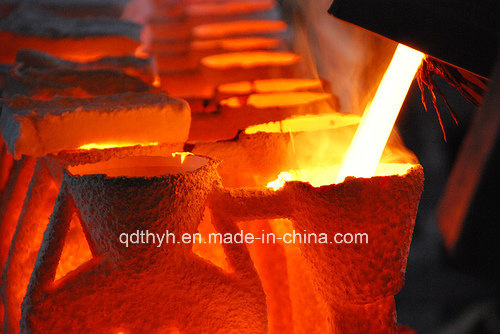

Our Investment Casting Production Processes:

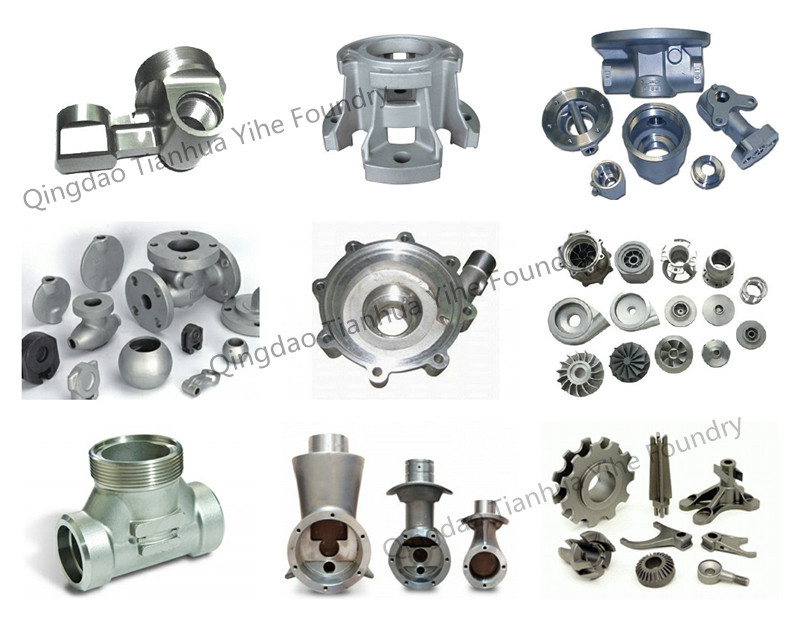

Our Casting and Machining Parts pictures as following:
FAQ
1 Are you factory or trading company?
We are leading casting manufacture factory at qingdao,china,So we can quote competitive price for you.
2 How long can I get the price?
Prices will be quoted within 24 hours after we get your inquiry with detailed information ( including drawings, material, surface treatment,quantity, special requirements,etc)
3 Can you produce custom products meet customer's requirement ?
Yes,We have specialized in producing OEM customized products according to the drawings or samples provided by the customer for 15 years.
4 Can you provide complete products?
Yes.We provide complete products including castings,machining, finishing treatment, packing and shipment on request. It is our goal to provide you with one-stop and satisfied service.
5 How can I get a sample to check your quality?
On the case of quotation confirmed.Sample will be free of charge for customer approval, freight collect.
6 How does your factory do regarding quality control?
Experienced inspection team of casting quality conducts the entire quality control procedure from raw material to finished products All inspectors are well trained and have rich product knowledge and inspection experiences.
7 How long can I expect to get the sample?
It depends on, normally 15days~20 days (including mould making time). Samples will be sent by DHL, FedEx, UPS, TNT or EMS,ect.
8 What about the lead time for mass production?
It depends on the order quantity. Normally,25days~30 days after receiving of deposit.
9 What are your MOQ?
We don't have a strict limit, small quantity is also workable.
10.What are your terms of payment ?
We can accept T/T or L/C at sight payment way.
Qingdao Tian Hua Yi He Foundry Factory located at the beautiful seashore city in Qingdao, China. The factory manufacture and export ferrous and non-ferrous alloys castings(grey cast iron, ductile cast iron, alloy iron, carbon steel, alloy steel, stainless steel, bronze, aluminium, etc. )for oversea customers throughout the year. We have ourselves import&export exequatur. We have exported our casting productions to the USA, UK and some other developed countries for many years. Our foundry have earned a reputation for fast deliveries, superior quality, competitive pricing and outstanding customer service. Tian hua yi he foundry factory has the unique ability to deliver orders as small as 1 piece or in excess of 200, 000 pieces, in weights ranging from 1/2 lb. To over 5, 000 lbs. Our factory capacity of castings more than 5000 tons in every year.
Our factory can operate chemical analysis, metallography analysis, physics test to the productions in ourselves physics, chemical analysis lab, make castings material, performance meet the customer' S requirement, let customer satisfaction. The products, such as air compressor parts series, inlet grating series, pipe fittings series, handwheel series, flange series, the piling accessories series, pulley series, pump series, iron counterweight series, manhole covers series which our factory produced, etc. Our products with good quality, prompt delivery and competitive prices. All of our products have ever been exported to America, England, Germany, Australia, Japan, Korea, Canada and other countries for many years, We have received the customer' S extensive trust and praise for many years. It is the commitment that we will never change in "supply the high-quality products, excellence in customer service". Our factory can produce the outstanding products for the customer according to the customer supplied drawings or samples. Please send your samples and/or drawings, specifications to us when you have any requirement, we will produce the high-quality casting for your company.
We would like to establish good business relations with all friends both home and abroad on the basis of equality and mutual benefits. Please feel free to contact us for more to discuss our business. Give us a chance, we will do our utmost to meet your requirements.
