| Prod Model: |
SYLZ-1000~SYLZ-15000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Copper Rod :8~30mm: |
Oxygen Content: Below 10ppm |
| Type: |
Copper Bars |
| Application: |
Electrical Cables and Wire |
| Material: |
Red Copper |
| Shape: |
Round |
| Alloy: |
Non-alloy |
| Color: |
Purple |
| Standard: |
ISO9001 |
Product Description

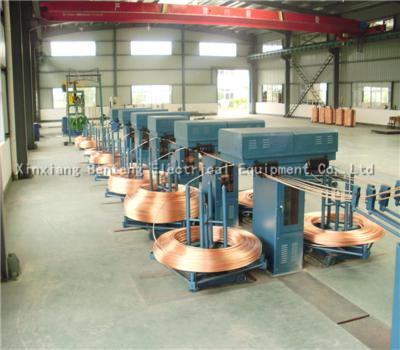

Upward continuous casting melting machine for copper rod
1.Product description
Upward continuous casting melting machine for copper rod is used for producing bright and long Oxygen
-free copper rod, copper tube,flat copper bar.This machine can directly produce different Specifications of
copper rod, copper tube and other special shaped copper material continuously from electrolytic copper.
2.Main device configuration
A) upward continuous casting machine
B) electric system
C) computer programming, servomotor driving, PLC controlling, frequency conversion rewinding
D) electric furnace
E) dragger
F) re-winder
3.Working process
The upcasting machine is used to produce the long and bright oxygen
free copper rod.The induction melting furnace melts the cathode copper plate into liquid, the liquid keep off the air by charcoal and graphite in
case of be oxidation.The holding furnace keeps the copper liquid
temperature in 1150ºC±10ºC, the copper liquid turn into copper rod in
crystallizer,then the final productwill be finished through the double headwinding machine and other accessory equipments.
4.The main technical parameters
No. | Item | Date |
| 1 | Annual capacity | 1000~15000 tons |
| 2 | Furnace structure | 3 bodies(2 melting furnaces,1 holding furnace) |
| 3 | Casting Strands | 2~24 |
| 4 | Casting rod diameter | 8mm to30mm |
| 5 | Casting speed(8mm) | 3m/min |
| 6 | Annual work time | 7920hours |
| 7 | Liquid tracking precision | ±2mm |
| 8 | Winding coil standard | Φ700mm×Φ1500mm×800mm |
| 9 | Copper melting power consumption | Below 320kwh/ton |
| 10 | Winding form | Automatic adjust |
| 11 | Winding plate driven approach | Inverter motor,PLC control |
| 12 | Material feeding method | Whole piece of electrolytic copper cathode fed by electrical hoist |
| 13 | Upward driven approach | Driven by the AC servo motor,transmission chain is driven by the gapless synchronous cog belt |
| 14 | Rod clamping method | Air clamping |
5.After-sales service
1) supply the design suggestion and layout plan for the clients workshop
2) supply the technical specification of the auxiliary facilities for the clients.
3) supply the equipment operation training.
4) supply the installation, start-up and commissioning service.
