| Prod Model: |
WF-JF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
China Sand Iron Casting Control Valve |
| Raw Material: |
Carbon Steel,Stainless Steel |
| Technics: |
Sand Casting+CNC Machining |
| Model Number: |
OEM Pump Impeller |
| Brand Name: |
Shengao,OEM |
| Toerance: |
+-0.5mm |
| Testing: |
Magnetic, Particle Inspector CMM |
| Weight: |
5-90kgs |
| Performance: |
Explosion-Proof Pumps |
| Shipping Port: |
Qingdao |
Product Description

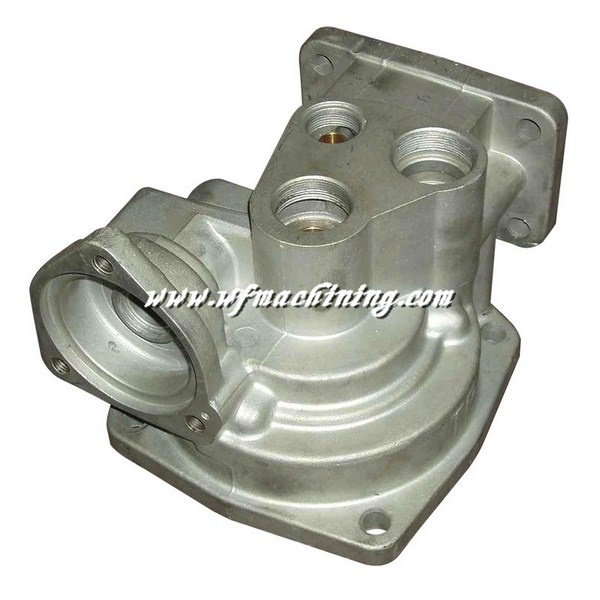

China Sand Iron Casting Control Valve with Home Foundry Process![]()
valve,casting valve ,sand casting valve,valve supplier
We can offer you investment casting parts, railway casting parts, railway parts, excavator machinery parts, mining machinery parts, engineering machinery, agricultural machinery parts, sand casting, bucket tooth, auto parts, stamping & forging, and valve parts. We are capability in manufacture non-standard metal machining.
1. Investment casting sand casting/ lost wax casting/precision casting/gravity casting/stainless steel casting/carbon steel casting/ die casting/cookware handle casting/pan handle casting/home hardware casting;
2. Materials: Carbon steel, stainless steel, alloy steel and duplex steel, wcc, wcb, lcc, color metal etc;
3. Surface treatment: Heat treatment, machining, polishing, anodizing, hard anodizing, galvanized, enp, chrome plating, powder coating and painting;
4. Software for specification drawings: Pdf, auto CAD, solid work, proe;
5. Main production equipments: Wax injection, CNC-machine, heat treatment furnace;
6. Quality assurance in accordance with ISO9001: 2008, strict material inspection and exact dimension control, 100% quality control.
7. OEM order is welcome;
8. The parts can be made completely based on your specifications such as drawing, design, sample etc.
9. Export Markets: Australia Investment Casting / Precision Casting, America, United States. U. S. A. Investment Casting / Precision Casting, Canada Investment Casting / Precision Casting; U. K. England, Britain Investment Casting / Precision Casting, Germany
![]()
![]()
![]()
China Sand Iron Casting Control Valve with Home Foundry Process
1.Ductile Iron Castings:
molding process: Resin sand/Green Sand
Material: EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2
Molding: Hand molding/Molding machine Z145/146/148/Molding line.
Possible Heat Treatment: Annealing
Industry involved: Municipal Construction / Fluid
/Automotive
Part unit weight range: 0. 5kg-2000kgs
Max/Min wall thickness requirements: 4mm-250mm
Manufacturer Certification: ISO9001(2000)/ TS16949
2. Grey iron castings:
1) molding process: Green sand/Resin sand
2) Material: EN-GJL-150/DIN 1691 GG-15,EN-GJL-200/DIN 1691-GG20,EN-GJL-250/DIN1691-GG25
,EN-GJL-300/DIN1691-GG30
3) Molding: Hand molding/ Molding machine Z145/146/148/Molding line.
4) Industry involved: Municipal industry/Construction Fluid industry/Automotive industry
5) Part unit weight range: 0.5kg-2000kgs
6) Max/Min wall thickness requirements: 4mm
7) Manufacturer Certification: ISO9001(2000)/ TS16949
![]()
![]()
| feature | - TS 16949 certified
- 3 sets automatic moulding lines, flask size from 450x400 till 850x700
- 15 units of induction furnaces ranges from 1 ton/hour till 5 ton/hour
- 15 units CNC machining cernters for further machining process
- Spectrum + metalloscope |
| annual casting capacity | 40,000tons |
| unit weight of casting | from 0.1kg/pc till 120kg/pc |
| material spec. | various grade nodular cast iron and grey cast iron |
| we are currently casting | - Grey cast iron types: EN-GJL-150, GJL-200, GJL-250, GJL-300, GJL-350, GG15, GG20, GG23, GG25, GG30
- Nodular/Ductile cast iron types: EN-GJS-400-18-LT, GJS-500-7, GJS-600-3, GJS-700-2, GJS-800-2, GGG40, GGG40.3, GGG50, GGG60, GGG70, GGG70, GGG80, GGG90
-Austempered ductile iron: ADI 800-10, ADI 900-8, ADI1050-6 , ADI1200-3, ADI 1400-1 |
| Item | China Sand Iron Casting Control Valve with Home Foundry Process
| Material | Technical Process |
| 1 | Ductile iron
castings | ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03;
DIN-GGG40,GGG50,GGG60,GGG70;
JIS-FCD40,FCD50,FCD60,FCD70;
BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2;
NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2; | Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 2 | Grey iron
castings | ASTM A48-No.20,25,30,35,40,45,50;
ASTM A126-Class A, Class B, Class C;
DIN-GG10,GG15,GG20,GG25,GG30,GG35;
JIS-FC10,FC15,FC20,FC25,FC30,FC35;
BS-Grade 150,180,220,260,300,350;
NF-FGL150,FGL200,FGL250,FGL300,FGL350; | Green-sand moulding
Resin-sand moulding
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 3 | Carbon steel
castings | ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC;
ASTM-415-205, 450-240, 485-275, 80-40;
DIN- GS-C25(1.0619), GS-38(1.0416),
GS-45(1.0446), GS-52(1.0552), GS-60(1.0558);
JIS-SC410, SC450, SC480, SCC5;
BS-A1, A2, A5;
NF-GE230, GE280, GE320, GE370 | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Lost foam cast
Shell-core cast
Electric-furnace smelting |
| 4 | Stainless steel
castings | ASTM-CF-8M, CF-8, CA-15, CA-40, 316, 304;
DIN-G-X6CrNi18 9(1.4308), G-X7Cr13(1.4001)
G-X20Cr14(1.4027), 1.4408;
JIS-SCS13, SCS 1, SCS 2, SCS 14A;
BS-304C15, 410C21, 420C29, 316, 304;
NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting |
| 5 | Alloy steel
castings | DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120);
GS-37MnSi5(1.5122), GS-34CrMo4(1.7220);
JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3;
ASTM-LCC
UNS-J02505, J13048
NF-G20M6, G35CrMo4 | Soluble glass sand moulding
Resin-sand moulding
Lost wax casting
(Investment casting)
Electric-furnace smelting |
| feature | - TS 16949 certified
- 3 sets automatic moulding lines, flask size from 450x400 till 850x700
- 15 units of induction furnaces ranges from 1 ton/hour till 5 ton/hour
- 15 units CNC machining cernters for further machining process
- Spectrum + metalloscope |
| annual casting capacity | 40,000tons |
| unit weight of casting | from 0.1kg/pc till 120kg/pc |
| material spec. | various grade nodular cast iron and grey cast iron |
| we are currently casting | - Grey cast iron types: EN-GJL-150, GJL-200, GJL-250, GJL-300, GJL-350, GG15, GG20, GG23, GG25, GG30
- Nodular/Ductile cast iron types: EN-GJS-400-18-LT, GJS-500-7, GJS-600-3, GJS-700-2, GJS-800-2, GGG40, GGG40.3, GGG50, GGG60, GGG70, GGG70, GGG80, GGG90
-Austempered ductile iron: ADI 800-10, ADI 900-8, ADI1050-6 , ADI1200-3, ADI 1400-1 |
China Sand Iron Casting Control Valve with Home Foundry Process
Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co., Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
Q: Do you provide customized valve parts?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.
Quality First, Price Best, Service Foremost!
We assure you of ourbest services at all times!
WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transporation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers. We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.
Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with dometic and overseas, new and old customers and establish eternal friendship to create a bright future.
