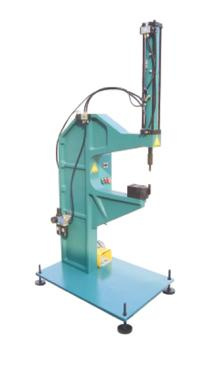

China Shineeast Pneumatic Clinching Machine

China Shineeast Pneumatic Clinching Machine
Price: US $ 3999/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: APP04
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate: ISO9001
Model No.: APP04
Color: Green
Brand Name: Shineeast
Drive Air Pressure: 3-8bar
Place Of Origin: Jinan, China

Product Description

APP Series C-frame console pressess are specialized riveting equipments without rivets. In stead of all previous methods which have involved economic and technical problems, they will join different materials by means of a deep drawing-pressing process, and which do so without damage to the surface, purely by displacing and forming.
It assures you with high productive efficiency as well as full process automaticly monitoring and joining strength checking.
In the process of pressing, sheet metals of different thicknesses or materials, even with adhesives or other intermediate layers are fully joined.
In industrial applications, Its available of clinching for single sheet thicknesses of 0.5 mm up to a total layer thickness of 11.0 mm and up to 7500 N tensile strength. In laboratory tests significantly higher values have already been achieved!

Components
Frame (Cast steel)
SHINEEAST-Powerpackage (Series H, P and FT for option )
Our standard function modular as well as the control units are provided for your specific application requirements.

Optional modular
Two hand safety control modular
Coupling flange
Intelligent monitoring
Processing position indicator

Advantages for a solid connection in detail
Higher dynamic strength than in spot welding
On-time monitoring and documented
Simple, non-destructive quality control is possible
Optimal corrosion resistance available with galvanized and prepainted materials
Perfect joints are produced even with narrow flanges and small mounting spaces
Outstanding conductivity for electric components
Cold forming process is ideal for hybrid connections (gluing and clinching)

Key features
Compact structure, clean design
Increased productivity with automatic feeding system and multi-point riveting
Large anti-ejecting forces and anti-torsion torques
High flexibility with height-adjustable
Lower energy consumption, Lower noise level
High stroke frequency
Soft-touch: Easy on your tooling
Easy maintenance and changeable
Available for riveting nuts diameter larger than M10

  Performance parameters

Point
diameter
(mm)
Sheet
thickness
(mm)
Shear
strength
(N)
Tensile
strength
(N)
Punching
force
(KN)

Φ3
0.5-1.5260-520130-3607-15

Φ4
0.6-2.0710-1300350-85013-28

Φ5
0.9-2.5750-2000200-100015-30

Φ6
1.0-3.0560-3400300-220012-40

Φ8
1.6-6.0510-6200290-280018-60

Φ10
1.75-7.01600-8500800-620036-105

Φ12
4.0-11.02700-100001100-750061-125




Technical parameters
TypeAPP08
Max. pressing force    70KN
Power sourceShineeast-Powerpakage
Power supply220V/ 50Hz
Max. total stroke100 mm
Compressed air5-8 Kg
Weight700 Kg
Please consult us for printable dimensional drawings for APP08 Model .

Jinan shineeast fluid systems equipment Co., Ltd., is a leading manufacturer specialized in high pressure fluid and gas handling equipment, which located in jinan city, the capital of shandong province, and only three hours to Beijing by train.

In addition to offering a comprehensive range of pneumatic driven liquid pumps, air pressure boosters, pneumatic driven gas boosters, high pressure valves, fittings and accessories, power packages and hydraulic presses, we customize and build power packs and test rigs. Our main manufacturing locations are fully registered according to ISO9001: 2008 standard.

Shineeast also has a strong commitment to providing you with high quality products as well as excellent service and support. This helps to maintain shineeast as the best choice for all of your high pressure requirements.

Our products are widely used in machine tools, diesel engine, aerospace automobile manufacturing, household electrical appliances, shipbuilding, petrochemical, CNG vehicle rebuilding industries as well as high pressure testing and other fields where high pressure are required.

Guaranted with the reliable quality and after-sale service, we have built an enviable reputation in recent years. Many colleges, indurstries, as well as automobile indurstries have already established agreeable and mutual benefit business relationship with us.

Please contact us to discuss your requirements or visit our website for more information.
