| Prod Model: |
009 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Carbon Steel: |
Cylinder Rods |
| Type: |
Carbon Steel Bar |
| Technique: |
Cold Drawn |
| Application: |
Tool Steel Bar |
| Surface Treatment: |
Polished |
| Alloy: |
Non-alloy |
| Special Use: |
Cold Heading Steel |
Product Description
We are happy to offer our top of the line hard chrome plated rods (piston rods) to customers in the hydraulic cylinder industry. We pride ourselves on the quality of our products, which go through a highly specific production process. Each Chrome Plated Rod we ship has been inspected to meet current industry standards for tolerances. Hard chrome cylinder piston rod

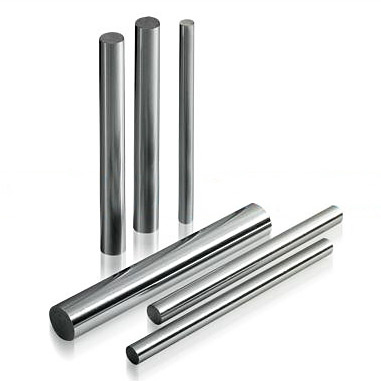

Hydraulic Cylinder Chrome Plated Rods
Chrome plated rods

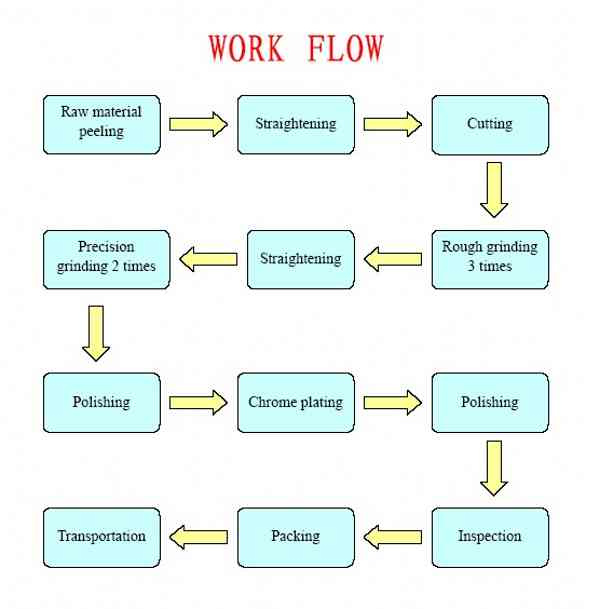

We are specialized producing the chrome plated rods.This kind of rods processed by advanced precision cold drawing,
accurate grinding and precision polishing.All of the technical indexes can meet the requirement of the customers.This kind
of chrome plated rods can be used as the piston rods for the hydraulic cylinder. |
| OD:Φ22-Φ120mm |
|
| Material:JIS S45C, SAE1045, DIN CK45 |
|
| Surface:Chrome plated |
|
|
|
| Sizes(mm) | Weight(kg/m) | Sizes(mm) | Weight(kg/m) | Sizes(mm) | Weight(kg/m) |
| 22 | 2.9863 | 40 | 9.872 | 70 | 30.233 |
| 25 | 3.8563 | 45 | 12.4943 | 80 | 39.488 |
| 28 | 4.8373 | 50 | 15.425 | 90 | 49.977 |
| 30 | 5.553 | 55 | 18.6643 | 100 | 61.7 |
| 32 | 6.3181 | 60 | 22.212 | 110 | 74.657 |
| 35 | 7.5583 | 63 | 24.4887 | 120 | 88.848 |
|
| Technical parameters |
| Sizes | Length | Hardness |
Roundness tolerance
| Length tolerance | Shaft hardness | Surface |
Straightness
|
Chrome plating
thickness
| Material | | Φ22-Φ120 | 300-9000 | HRC13-HRC55 | GB1184 9 | GB1100 IT | HB241-267 | Chrome plated | 0.15/1000mm | 0.02-0.03 | JIS S45C, SAE1045, DIN CK45 |
|
Sichuan Kindu Tecking trading Co., Ltd was established in 2014, located in Chengdu, Sichuan province. We have engaged in producing and selling the Hydraulic Gear pump, Honed Tube, Chrome Plated Rods and Hydraulic Cylinder since we established.
Our factory owns the modernized production workshop and introduced the advanced Casting Equipment, Auto-quenching Equipment, Numerical Control Machine, Cold Drawing Machine and other advance production equipment from home and abroad.
Our factory has our own R&D team and we also have a high quality staff team. Our company concern the quality of all the staff and always organize the staff training.
We have the perfect quality control and management system. From the original material to the final goods, every step we arranged the professional people to control. All of our products satisfied the ISO 9001: 2008 standard.
To provide the high quality products and good service are always our target.
We are looking forward to cooperating with the customers all over the world and also welcome you to visit our company and factory.
High quality Reasonable price Good service
