| Prod Model: |
DMT-200/300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 200kn/300kn: |
1250*5000/1500*5000 Single Motor |
| Type: |
Punch Machine |
Product Description

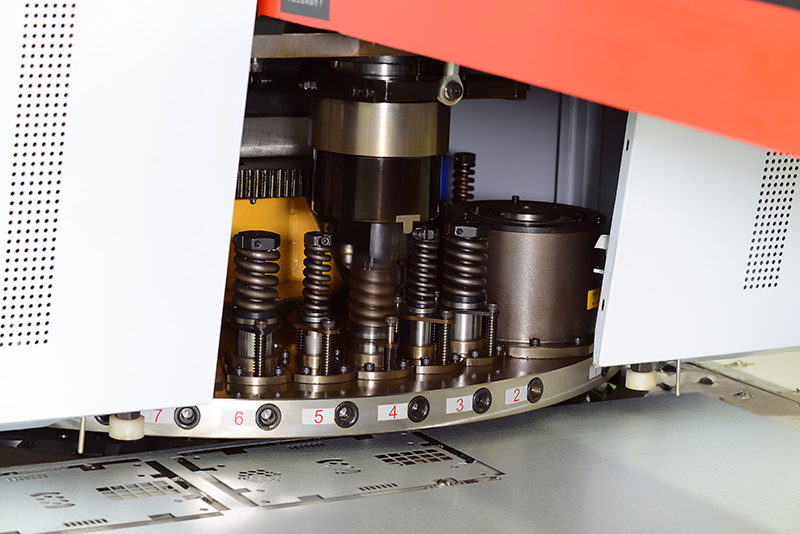

Doube servo driven CNC turret punch machine with 5 controlling axes. Gear rack feeding system and with features of energy saving, easy maintenance and high running reliability.
| Specification | Unit | DMT-200 |
| Punch Force | kN | 200 |
| Max. Processing Size (with one reposition) | mm | 1250*5000 |
| Feeding Speed | X Axis | m/min | 120 |
| Y Axis | m/min | 90 |
| No. of Station | no. | 32 |
| No. of Auto-Index | no. | 2 |
| No. of Controlling Axis | no. | 5+2 |
| Processing Sheet Thickness | mm | 0.6-4 |
| Max. Punch Frequency |
| 1000 |
| Accuracy |
| ±0.10 |
| Max. Punch Diameter per Time |
| dia. 88.9 |
| Main Driving System |
| Double motor driven system |
| CNC System |
| FANUC |
| Central Lubrication |
| Automatic |
| Air Pressure | MPa | 0.55 |
| No. of Floating Pneumatic Clamps | no. | 3 |
| Feeding System | X Axis |
| Gear Rack |
| Y Axis |
| Double ballscrew |
| Tooling Type |
| Long Tooling (Wilson) |
| Outline Dimension | mm | 5120*5690*2310 |
| Machine Weight | T | 18 |
Jiangsu Jinfangyuan CNC Machine Co., Ltd., as the national high-tech enterprise, is the national technology progress example and torch & sparking program implement key company; Meanwhile, it is awarded the AAA credit enterprise certificated by Jiangsu Commercial Bank, it is also the biggest base for falicity manufacturing base for processing metal sheet domestically. The company has obtained both ISO9001 quality assurance system certificate and CE certificate. The products have awarded the title of "China Top Brand". In the year of 2008, our products awarded th tiltle of "China Famous Brand".
Main products: HRT, MT, VT and ET Series of CNC Punch Machine, LC Series CNC Laser Cutting Machine, MCZ Series Machine for Bus, PL Series CNC Laser-Punch Combined Machine and APSS CNC Punch-Shearing Combined FMS and AMCP-120 CNC Automobile Carling FMS.
