| Prod Model: |
HDLW12-60X3200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CNC Control System: |
High Precision |
| Once Circle Forming: |
Easy to Correct Wrong Edge |
| Pre-Bending Function: |
Leveling Easily |
| Compact Structure: |
Overload Protection |
| Wide Application: |
Surface Finishing |
| Unity Stress Relief: |
Whole Welded Chassis |
| Rolls Heat Treated: |
Rolls Material: 42CrMo |
| Easy To Operate: |
High Efficiency |
| One Operator: |
Emergency Stop System |
| Self-Compensation System: |
Braking Balance Device |
| Forging Forming Method: |
Mold Forging |
Product Description

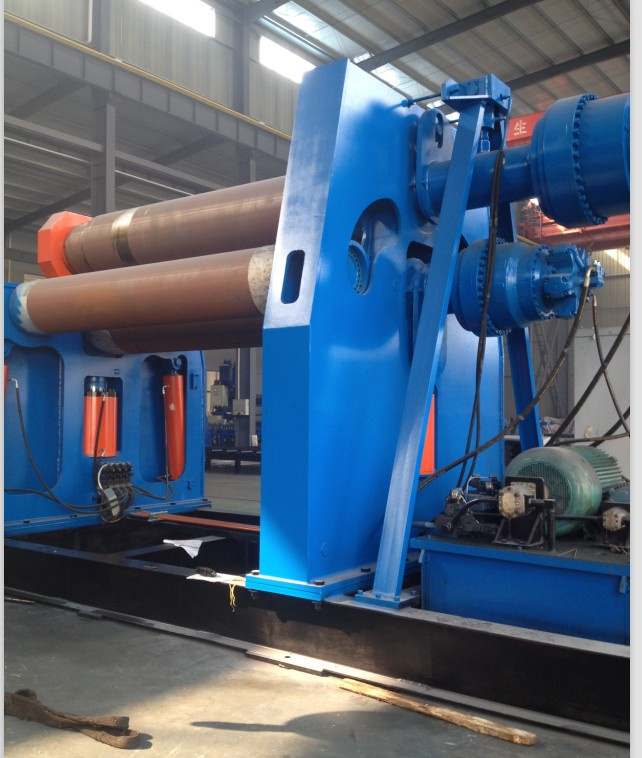

CNC Hydraulic plate rolling machinery
1. The main Structure Description
The whole structure of the machine is reliable and easy to operate. The up and down movement of the lower roller and side bars are all equipped with digital display. So it can be actually operated. The downturn and reset of the upper roller, the upper roller balance are all acted by cylinder. Also the unloading is very convenient
2. Two structural characterisyics
Arc swing of the sider roller, leverage increased pressure forces
Proportional vales on both sides of the roll synchronization
3. Superiority of four roller plate rolling machine
3.1 Superiority and some features usually only in large size plate rolling machine:
3.2 Fully hydraulic-driven (as opposed to the usual manual and mechanical movement)
3.3 Multiple independent hydraulic motor (as opposed to only one set of electric motors, reduction unit and gear)
3.4 Automatic hydraulic line speed compensation (as distinct from inefficient clutch)
3.5. Clamping pressure control (as opposed to holding without control)
Model standard device
1. LCD digital electronic reading devices
2. Two clamping pressure rollers, driven by two independent hydraulic motor
3. Driven hydraulic front controller more speed,
4. Control of the entire machine
5. Emergency security emergency stop
|
Model |
Plate width (mm) |
Max. plate
thickness (mm) |
Pre-bending thickness
(mm) |
Minimum roll diameter (mm) |
Plate yield limit (MPa) |
Diameter of
upper roller
(mm) |
Diameter of
lower roller
(mm) |
Diameter of
side roller
(mm) |
|
W12NC-12× 4000 |
4000 |
12 |
8 |
800 |
245 |
380 |
340 |
280 |
|
W12NC-16× 3200 |
3200 |
16 |
12 |
800 |
245 |
380 |
340 |
280 |
|
W12NC-20× 2500 |
2500 |
20 |
16 |
800 |
245 |
380 |
340 |
280 |
|
W12NC-25× 2000 |
2000 |
25 |
20 |
800 |
245 |
380 |
340 |
280 |
|
W12NC-32× 2500 |
2500 |
32 |
25 |
1500 |
245 |
520 |
500 |
350 |
|
W12NC-32× 4000 |
4000 |
32 |
25 |
1300 |
245 |
650 |
580 |
480 |
|
W12NC-40× 3200 |
3200 |
40 |
32 |
1300 |
245 |
650 |
580 |
480 |
|
W12NC-45× 2500 |
2500 |
45 |
40 |
13600 |
245 |
650 |
580 |
480 |
|
W12NC-50× 2000 |
2000 |
50 |
42 |
1300 |
245 |
650 |
580 |
480 |
|
W12NC-50× 3200 |
3200 |
50 |
40 |
1800 |
245 |
680 |
650 |
520 |
