| Prod Model: |
HB-S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bending Material: |
Stainless Steel |
| Axes: |
4+1 |
| Control: |
CNC |
Product Description
Special designed control unit and software serve you simplicity and lean operations even for inexperienced operators. Working with all range easy and comfortable in all respects. Pecfect bending results, easy input the angle and operate the machine. Large daylight opening and large space enables the machine to be put to optimum use along its entire working length. Holistic welding structure treated by annealing.

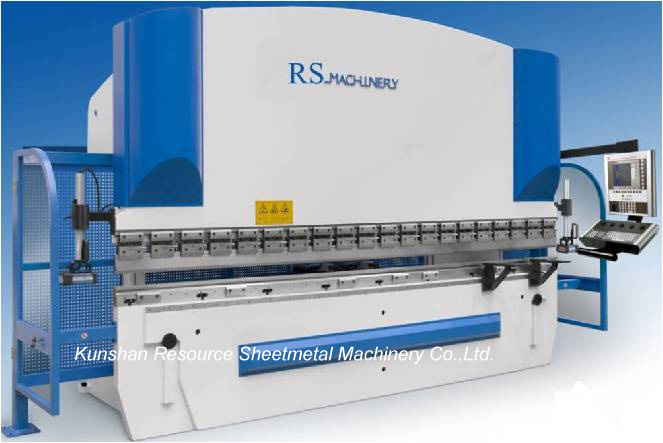

Press brake / CNC press brake
1, Italia esa 540 system, 2d graphic CNC system

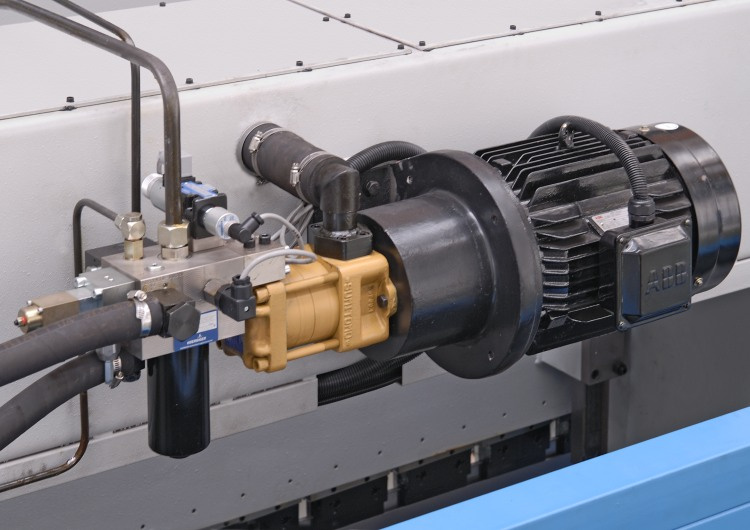

2, German hoerbiger original proportional hydraulic system
3, Japan dakin or smitomo high-performance internal meshing gear pump
4, Germany heidenhain liner scale
5, German emb fuel pipe union
6, French schneider electric parts
7. Japan high-performance AC servo motor and driver
8, Holistic welding structure treated by annealing
9, Standard 4+1 axes: Y1--y2--X+r+V
Y1 (upward-downward of left cylinder),
Y2 (upward-downward of right cylinder),
X (forward-backward of backgauge),
R (upward-downward of backgauge)
V (hydraulic crowning),
10, Double crowning mechanism:
--Upper rapid clamping fixture, which has both quick fastening and crowning function.
--The lower table crowning machanism of sandwitch structure is controlled by CNC system.
11, A set of standard tools is provided with each machine.
12, Optional: CE certificate.
| Specification Model | Nominal Pressure (KN) | Max bending width (mm) | Distance between Housings(mm) | Opening height (mm) | Throat depth (mm) | Cylinder stroke (mm) | Main power | Oil volume (L) | Dimensions | Machine weight (Kg) |
|
| Length (mm) | width (mm) | Height (mm) |
|
|
| HB100-2500S | 1000 | 2500 | 2100 | 480 | 320 | 210 | 7.5 | 300 | 3550 | 1430 | 2500 | 7500 |
|
| HB100-3100S | 1000 | 3100 | 2700 | 480 | 320 | 210 | 7.5 | 400 | 3500 | 1300 | 2500 | 8000 |
|
| HB100-4000S | 1000 | 4000 | 3300 | 480 | 320 | 210 | 7.5 | 600 | 4400 | 1300 | 2500 | 11000 |
|
| HB125-2500S | 1250 | 2500 | 2100 | 480 | 320 | 210 | 7.5 | 300 | 3550 | 1450 | 2500 | 7600 |
|
| HB125-3100S | 1250 | 3100 | 2700 | 480 | 320 | 210 | 7.5 | 400 | 3500 | 1300 | 2500 | 8000 |
|
| HB125-4000S | 1250 | 4000 | 3300 | 480 | 320 | 210 | 7.5 | 600 | 4400 | 1300 | 2500 | 11000 |
|
| HB160-3100S | 1600 | 3100 | 2700 | 480 | 350 | 210 | 11 | 500 | 3500 | 1700 | 2650 | 11000 |
|
| HB160-4000S | 1600 | 4000 | 3300 | 480 | 350 | 210 | 11 | 600 | 4400 | 1700 | 2750 | 14000 |
|
| HB160-5000S | 1600 | 5000 | 4100 | 480 | 350 | 210 | 11 | 650 | 5230 | 1800 | 3000 | 15000 |
|
| HB200-3100S | 2000 | 3100 | 2700 | 530 | 400 | 210 | 18.5 | 400 | 3500 | 1800 | 2730 | 14500 |
|
| HB200-4000S | 2000 | 4000 | 3300 | 530 | 400 | 210 | 18.5 | 600 | 4400 | 1800 | 2730 | 18500 |
|
| HB200-5000S | 2000 | 5000 | 4100 | 530 | 400 | 210 | 18.5 | 700 | 5250 | 1900 | 3000 | 18000 |
|
| HB250-3100S | 2500 | 3100 | 2700 | 530 | 400 | 210 | 18.5 | 400 | 3500 | 1800 | 2730 | 14500 |
|
| HB250-4000S | 2500 | 4000 | 3300 | 530 | 400 | 210 | 18.5 | 600 | 4400 | 1800 | 2730 | 18500 |
|
| HB250-5000S | 2500 | 5000 | 4100 | 530 | 380 | 210 | 18.5 | 700 | 5250 | 1900 | 3000 | 19000 |
|
| HB320-3100S | 3200 | 3100 | 2700 | 560 | 500 | 265 | 22 | 500 | 3500 | 2200 | 3120 | 23000 |
|
| HB320-4000S | 3200 | 4000 | 3300 | 560 | 500 | 265 | 22 | 600 | 4400 | 2200 | 3120 | 30000 |
|
| HB-320-6000S | 3200 | 6000 | 5100 | 560 | 500 | 210 | 22 | 800 | 4400 | 2200 | 3110 | 320000 |
|
