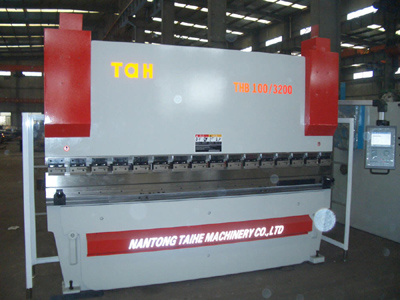

Product Description
Features:
1) Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.
2) Hydraulic top-drive, steadiness and reliability.
3) Mechanical stop, steel torsion bar to maintain synchronization, high precision.
4) Motorized-adjusting device of back gauge and ram's stroke, fine adjusting by hand wheel, numerical display.
5) Deflection compensation unit installed on the top die, manual crowned bottom die holder is adopted for the machine above 250MT.
6) Travel limit protection, full machine guarding with safety interlocker.
|
Technical specification |
63 /3200 |
100 /3200 |
160 /3200 |
250 /3200 |
250 /4000 |
250 /5000 |
250 /7000 |
320 /4000 |
320 /5000 |
320 /6000 |
400 /4000 |
400 /5000 |
|
Nominal strength KN |
630 |
1000 |
1600 |
2500 |
2500 |
2500 |
2500 |
3200 |
3200 |
3200 |
4000 |
4000 |
|
Length MM of the workingbench |
3200 |
3200 |
3200 |
3200 |
4000 |
5000 |
7000 |
4000 |
5000 |
6000 |
4000 |
5000 |
|
Distance MM among the posts |
2700 |
2700 |
2700 |
2700 |
3300 |
4100 |
6250 |
3300 |
4300 |
5300 |
3100 |
4210 |
|
The throat is a depth MM |
250 |
320 |
320 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
|
Slippery journeys MM |
100 |
150 |
200 |
250 |
250 |
250 |
250 |
250 |
250 |
250 |
320 |
320 |
|
Workingbench and slip piece most heavy to open high MM |
400 |
450 |
465 |
560 |
560 |
560 |
560 |
560 |
560 |
560 |
625 |
625 |
|
Power KW of the main electrical machinery |
5.5 |
7.5 |
11 |
15 |
15 |
15 |
15 |
22 |
22 |
22 |
37 |
37 |
|
External dimension of the lathe (long * is wide * high) mm |
4340
1460 2420 |
3450
1450 2600 |
3250
2535 2920 |
4000
2250 4060 |
4800
2250 4060 |
5800
2250 4060 |
7800
2250 4160 |
4060
2570 4560 |
5060
2570 4560 |
6060
2570 4560 |
4050
3240 3880 |
5050
3240 3880 |
|
Machine weight Kg |
6000 |
8000 |
13300 |
18400 |
20000 |
22000 |
25000 |
22000 |
24510 |
27020 |
29950 |
37000 |
Nantong Taihe Machinery Group Co., Ltd. is located in Haian High-tech Development Zone of Jiangsu, east to the Huanghai Sea, south to the Changjiang River, with areas of 74000 square meters. Taihe belongs to Shanghai Economic Area and is one of the key enterprises of previous State Machinery Ministry.
Taihe now owns large floor-type milling and boring machine, planer-type milling machine and drilling machine, more than 100 sets processing equipments of high quality, high precision and advanced technology. All these greatly improve product's quality and meet various requirements of customers.
Taihe registered 54 million RMB, with 300 employees, 25 engineers, 12 after-sales service personnel and 38 salespersons. The company is authorized with the rights of self-managed import and export, the certification of ISO9001: 2008 international quality system and the CE certification of EU. We have various kinds of product in "Tah" brand, including QC12K, QC12Y, QC11K, QC11Y series of CNC hydraulic shearing machine; WC67Y and WC67K series of CNC hydraulic press brake; W11S, W11 and W12 series of rolling machine; YQ32 series of four-column universal hydraulic press. Besides domestic market, Taihe's product is also exported to Europe, USA, Middle East, South Africa and South Asia etc. More than 60 countries and regions.
Our product is applied in many areas, such as machine manufacturing, aviation, automotive industry, packaging, stainless steel products, wind power generation, shipping, oil industry and so on.
